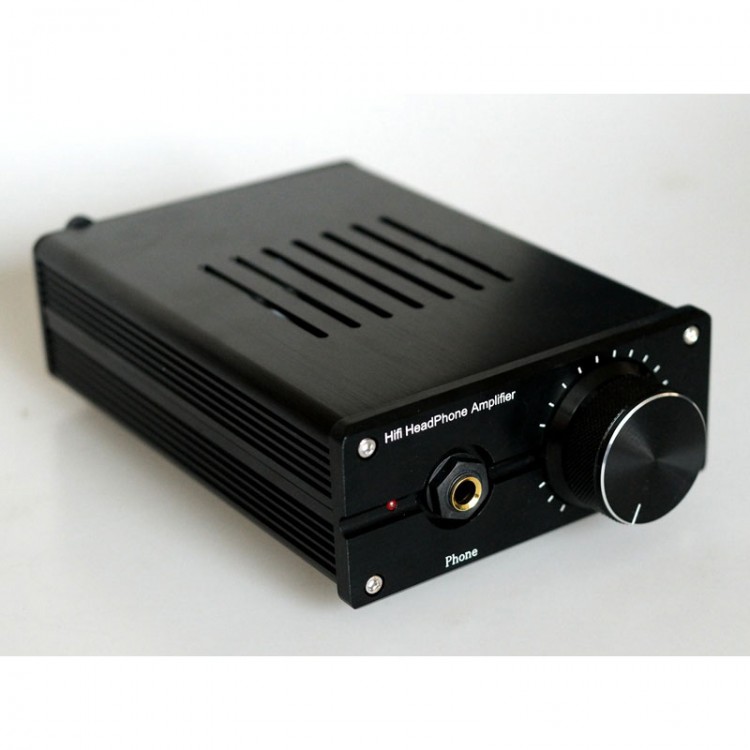

HiFi Headphone Amplifier For Low Impedance High Sensitivity Headphone L.RA1 AC
Description:
When it is used with low-impedance, high sensitivity headphones for GRADO, it features a special sense of looseness. The circuit has no voltage gain, but only reduces its output impedance, and uses a large-impedance negative feedback circuit to counteract the back-EMF of low-impedance headphones. This design brings a very high SNR and control, and a delicate and relaxed hearing sense. When this amp is paired with our store's L1852DAC, L4490DAC, it will be very unique in the small compilation of vocals and chamber music, with air and soft high frequencies.
Features:
- Powered by AC power supply
- Added gain control. When two switches turn on, the gain is about 1. When they turn off, the gain is about 4
- Designed with headphone protection circuit for safety reason
Specifications:
- Applicable Headphone Impedance: 16-120Ω
- Frequency Range: 12Hz-15kHz (-1dB)
- Distortion: 0.001%@1kHz
- Output Noise Level: -96dB
- Output Impedance: <1Ω
- Rated Output Power: 150mW / 16Ω; 290mW / 32Ω; 350mW / 64Ω
- Input Sensitivity: 1000mV rms (-7dB) for rated output
- Gain: 1 (low gain); 4 (high gain)
- Power Supply Voltage: 220V AC
- Weight: 800g
Package Included:
- 1 x Headphone Amplifier
Note: Optional color of front panel are available in Black, Silver. Please choose the color you want while purchasing. Thank you!
