| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $57.07 | $55.90 | $54.15 | $51.82 | Contact US |

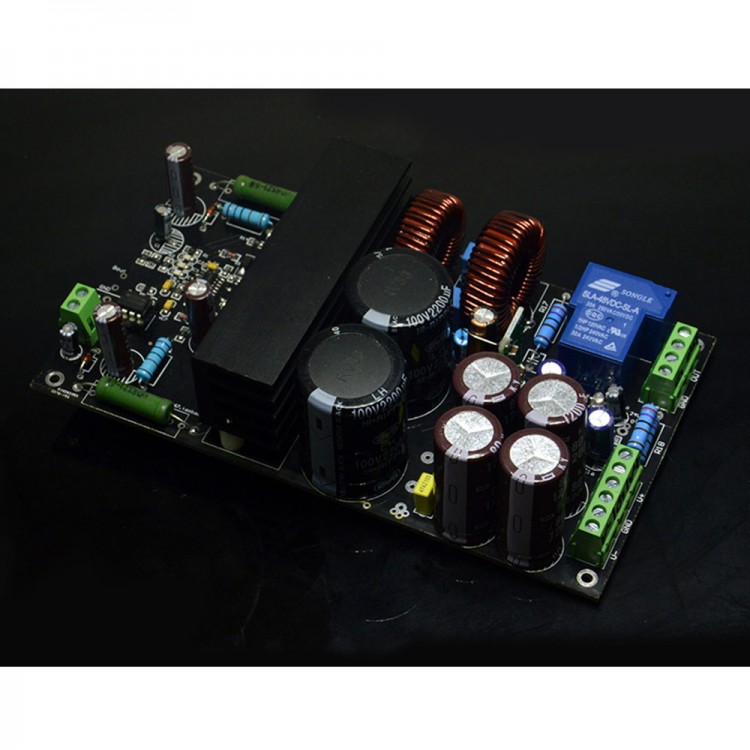

HIFI Power Amplifier Board IRS2092 Digital Single Channel 1000W Audio Subwoofer AMP
Specification:
- Voltage: DC -+65~-+80V
- Power: 2Om 1000W,4Ohm 900w,8oHM 600W
- Single channel HIFI Power Amplifier Board
- Adopt IRFB4227 TO-3P tube
- Temperature protection
- Speaker protection
- Neutral point DC protection, bridgeable
- Main chip: IRS2092 and IRFP4227
- Inductance: T130
- PCB thickness: 2mm, copper thickness: 2/2Oz
Parameters:
- Power supply voltage: double DC power supply + + 65V--- + 80V (three wire)
- Recommended voltage: DC -+70V
- Maximum output power: 1000W/2Om; 900W/4ohm; 600W/8ohm
- Efficiency: >=90%
- Signal to noise ratio: 90dB
- Speaker: 2 ohm - 4ohm - 8ohm
- Weight: About 485g
- Circuit board size: about 175MM* 96MM*55mm L*W*H
NOTE:
- Power voltage can be double DC-+65~-+80V, recommend -+70V is better
- Speaker can be 4Om or 8Ohm
- Please check carefully before power on
Package List:
- 1 x HIFI Power Amplifier Board
