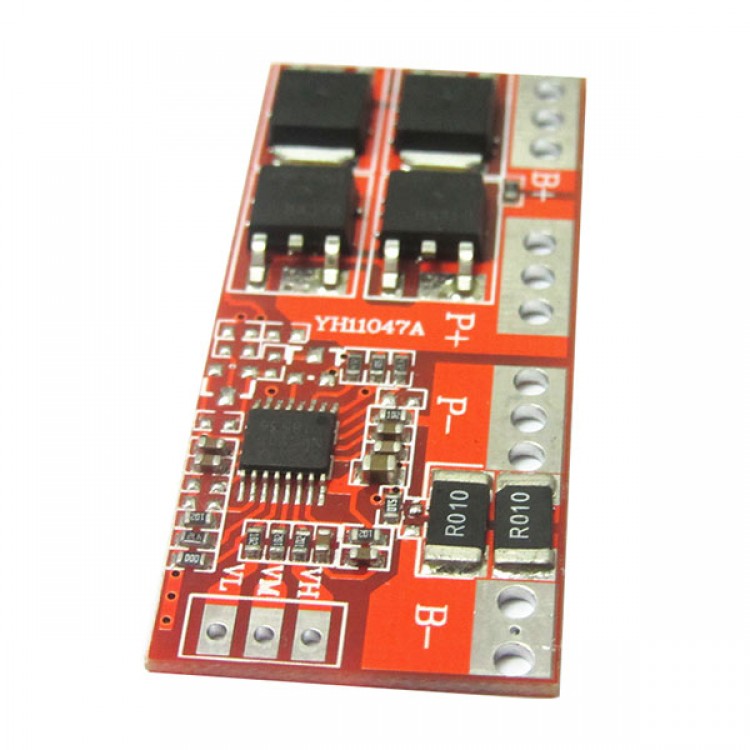

High Current 10A 4 Series Lithium Battery Protection Board

High Current 10A 4 Series Lithium Battery Protection Board

Description:
- 4 series lithium battery protection board
- Suitable for nominal voltage of 14.4V lithium battery, 14.8V lithium battery, 16.8V lithium battery pack.
- With automatic activation,
- Protection is automatically canceled after recovery protection conditions,
- No need to activate the charger,
- Easier to use.
- Module Parameters:
- Module Name: 4 series lithium battery protection board
- Module Properties: polymer lithium battery protection board
- Overcharge detection voltage: 4.25 ± 0.025V
- Overcharge release voltage: 4.15 ± 0.05V
- Over-discharge detection voltage: 2.50± 0.08V
- Over discharge release voltage: 3.00 ± 0.1V
- overcurrent :20-30A
- Current: 15A (natural cooling 10A, plus heat sink 15A, maximum instantaneous current 30A)
- Lifting conditions: Protect condition to lift the automatic recovery, No activation
- Main features: over charge protection, over-discharge protection, short circuit protection, over-current protection.
- Working temperature: -40 to +85 degrees (ambient temperature is too high, please enhance heat dissipation)
- Wiring: Welding Output
- Module size: 50mm * 22mm * 4mm

Applications:
- The protective plate can be used as a nominal voltage of 14.4V, 14.8V, 16.8V four series polymer lithium batteries, lithium batteries, such as four-string 18650 as overcharge, over discharge, short circuit protection. No need to activate the function at a very high instantaneous current power applications, the inverter can be applied to avoid false trigger protection, easier to use.

the automatic activation instructions:
- When the above chart circle stickers 0 ohm resistor to enable automatic activation function,
- In the application conditions beyond the protection parameters outside
- Protection board start protection,
- When restored to within protection parameters,
- Automatically return to normal output,
- No manual activation or activation charge.

Non-automatic activation instructions:
- When the circle is not attached to the figure above 0 ohm resistor to turn off the automatic activation function,
- In the application conditions beyond the protection parameters outside
- Protection board start protection,
- When restored to within protection parameters,
- Not resume normal output,
- Needs to be activated manually or activation charge.

Packing including:
- 1x 4 series lithium battery protection board
