High-End USB Digital Interface USB to Coaxial Optical I2S AES EBU Support DSD For SITIME Oscillator

High-End USB Digital Interface USB to Coaxial Optical I2S AES EBU Support DSD For SITIME Oscillator

Download Official Driver For XMOS 3.34:
http://pan.baidu.com/s/1nvoa5TZ

Download Driver For XMOS 2.26:
http://yun.baidu.com/share/link?shareid=1612015194&uk=155645262

Download Driver For XMOS 2.19 (For WIN10):
http://yun.baidu.com/share/link?shareid=2911941438&uk=155645262

For Downloading FOOBAR2000:
http://yun.baidu.com/share/link?shareid=397673082&uk=155645262

Download ASIO Plug-in:
http://pan.baidu.com/s/1pJG3tvd

Download Driver For XMOS 2.24 (For WIN7/WIN8/WIN8.1):
http://yun.baidu.com/share/link?shareid=2148280091&uk=155645262

Features:
- The main control chip has been upgraded to the second generation XU208. The memory of XU208 chip is twice as high as U8, and the operation speed is 1000MIPS, which is twice as fast as 500MIPS of U8.
- EMI power filter added for better and more pure details.
- Premium Oscillators: Two crystal oscillators for SITIME, featuring low jitter, no temperature drift, low phase noise. Plus a Beijing transformer.
- The USB interface supports hardware upgrading. The schematic diagram and hardware for XMOS and CPLD are self-developed. They are not the official version.
- Improved digital output interfaces, including coaxial output, optical output, AES / EBU output, I2S output. The I2S output port supports DSD transmission.
- Aluminum shell and PCB with immersion gold process.
- Premium filter capacitors work with LM2941 voltage regulator system to provide pure energy for MXO.
- Imported DA101C as digital isolating transformer.
- Customized USB socket plated with gold ensures good contact and long service life.

Specifications:
- Item Name: Digital Audio Interface
- Input Way: USB Data Cable
- Output Ports: Coaxial, Optical, IIS (RJ45 Network Port), AES/EBU
- Bit Depth: 16bit, 24bit, 32bit
- Environment: For Windows / MAC / some mobile devices (mobile phones, tablets)
- Sampling Rate:
   Support PCM: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz (coaxial, optical fiber, AES only supports up to 192K. IIS transmission is required for over 192K)
   Support DSD: DSD64, DSD128, DSD256 (2.822, 3.072, 5.644, 6.144, 11.2896 and 12.288MHz) (DSD requires IIS transmission and requires DAC support)

Attention: Due to various DAC designs by different manufacturers, we cannot guarantee that you can play DSD with our items. I2S transmission requires certain knowledge and DIY ability, which is not recommended for green hand. Thank you for your understanding!

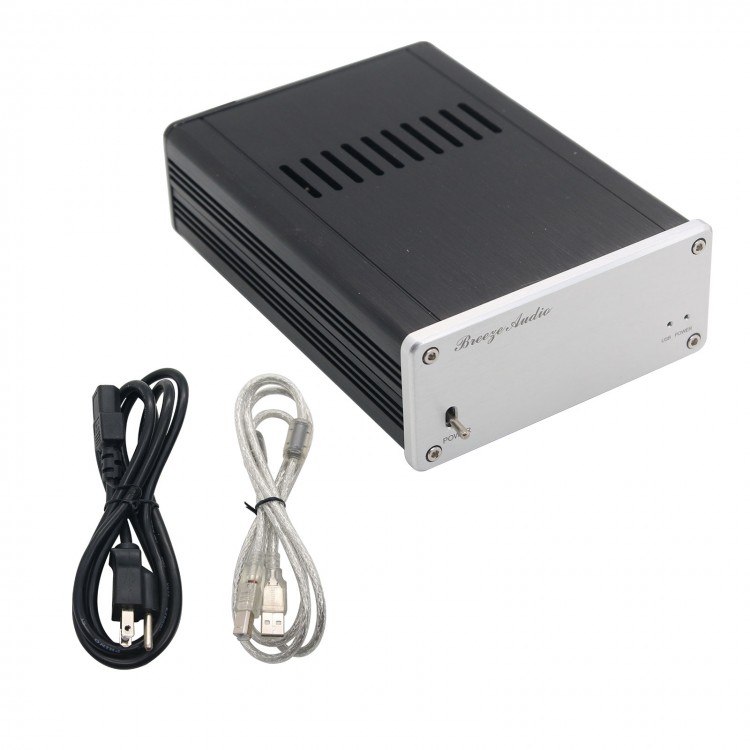

Package Included:
- 1 x Digital Interface
- 1 x Power Cord
- 1 x USB Cable with Two Magnetic Rings
