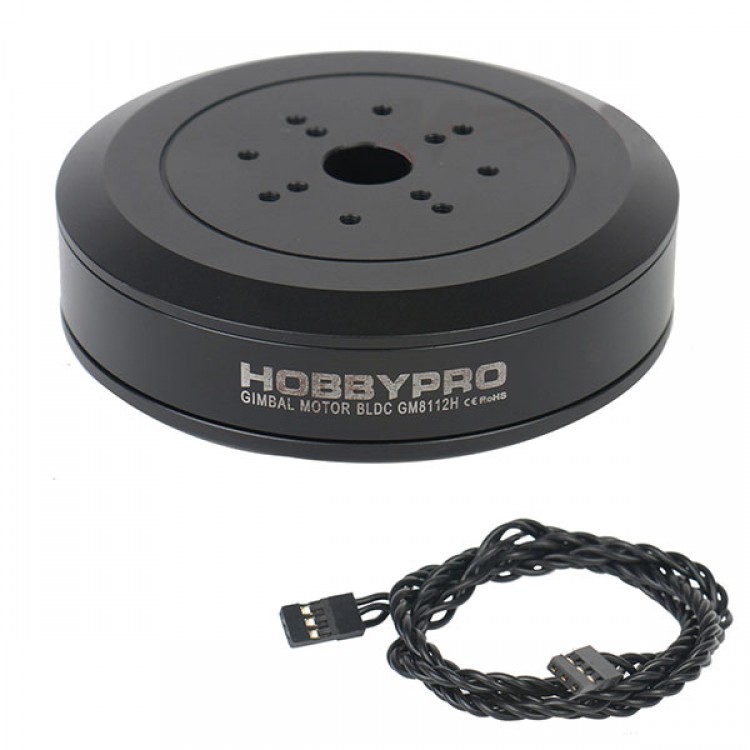

High Performance RC Brushless Gimbal Motor GM8112H BLDC Motor Slipring Sealed Case For Pitch & Roll Axis of Red Epic and Similar

Availability: Out Of Stock

  • Price:$109.00
  • Price in reward points: 1090 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $106.82 $104.64 $101.37 $97.01 Contact US
Quantity:

High Performance RC Brushless Gimbal Motor GM8112H BLDC Motor Slipring Sealed Case For Pitch & Roll Axis of Red Epic and Similar

Features

- 3 Axis Brushless Gimbal Motor
- High Precision and Quality
- Sealed Casing, Dust-proof design
- High Performance,Large Torque
- Long Life,Running Smoothly
- Safety and Reliable to keep your expensive camera

Specifications
Item NO.:     R81
Name:         Gimbal Motor GM8112H
Weight(g):   391
Motor Dimension[D×L](mm):  ø90.2*27
Hollow shaft:                              Y
Diameter of Shaft(mm) :          12.7
Length of Shaft(mm):              N/A
Stator mounting holes[Pitch,Size](mm):35mm,4-M3/35mm,4-M4/45mm,4-M3
Rotor mounting holes[Pitch,Size](mm): 25mm,4-M3/35mm,8-M3
Wire length including JR plug:500mm
Copper wire(OD,mm):             0.28
Configuration:                           36N42P
Winding Type:                           WYE
Turns:                                        100T
Resistance[Ri](Ohm):            7.8
Max nominal Voltage:             28V
Recommended Voltage(Lipo): 4-6S
Camera Range:                      4-6KG
Recommended Camera:      For pitch & roll axis of Red Epic and Similar
