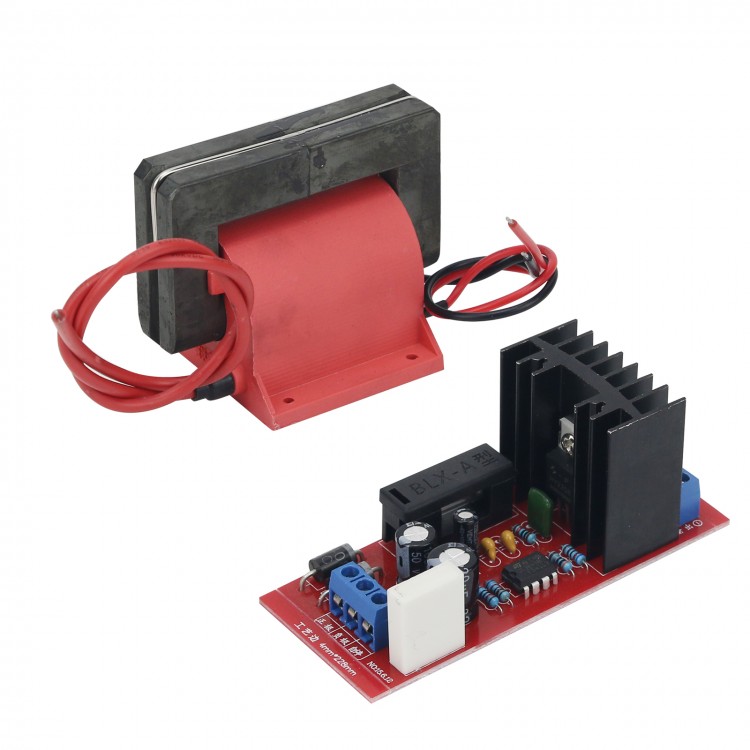

High-Power New 30000 Volt High-Voltage Package Drive Board Inverter Electrostatic Generator Fast Flash Charging Bag

High-Power New 30000 Volt High-Voltage Package Drive Board Inverter Electrostatic Generator Fast Flash Charging Bag

Specificcation:
- The name of the product; a new generation of high-voltage bags.

Parameters:
- The working voltage is 12V.
- One of our high-voltage bags is equivalent to more than 6-8 black-and-white high-voltage packets.
- High voltage output 3000V, with over-current protection.
- Feed protection is lower than 8.5V to stop high voltage concussion.
- Support is full of self-stop control signals.
- With work indicator and safety mounting seat.
- High output voltage.
- Increase input line.
- No welding.
- Imported chip

Fluke multimeter.

The measured no-load voltage is 32950V

3000V high voltage package.
The high-voltage package has a built-in protection circuit, which makes a good distinction between the high-voltage package and the low-voltage package to protect the machine from damaging the circuit because of short circuit.


Upgrade new featur.
The input line is added in the new model, which is convenient for customers to assemble without welding.
Input line length 20cm, output line 35cm

Heat sink.

After the improvement of three generations of products, the heatsink has been thickened to make the working performance of the product more stable and the imported ST brand FET.

The third generation products are upgraded to high current 110A, high withstand voltage 80V, low internal resistance 0.0065 European advantage, low heating, high power, durability and other characteristics far exceed the performance of domestic or previously imported 75NF75.

The original factory enters the DST brand.

Driver chip.

The chip is the most important component in the core of the system, the chip determines the voltage output, power, efficiency conversion, ripple size of this board, only a good chip will send back the best effect and stable quality.

Line safety device.

When the circuit is seriously overcurrent and short-circuited, you can protect the circuit and fuse the fuse, so as to prevent the scope of the fault from expanding even if your non-professional maintenance personnel can replace and fix the fault on your own.Imported non-inductive resistance.

The so-called non-inductive resistance represents the performance of negligible inductance and non-general resistors, so the resistors are used to protect the current limit and provide the chip with over-current protection signals. only by using imported non-inductive resistors can the chip work in a stable and optimal state.

Quick connection terminal.

The use of pure copper flame retardant I industry terminal, the advantage of pure copper conduction current, fast and convenient installation of wire can be a screwdriver.

There is no need for welding in disassembly and assembly.

Anti-reverse protection diode.

Two high-power diodes are connected in parallel to reduce the voltage drop loss of the diode and increase the current conduction capacity to completely avoid the unnecessary loss caused by the negligence of the positive and negative electrodes.

Operation indicator.

This indicator can visually reflect the working status of the product, for example, when multiple boards are working at the same time, you can distinguish whether it is working properly by observing the indicator light.

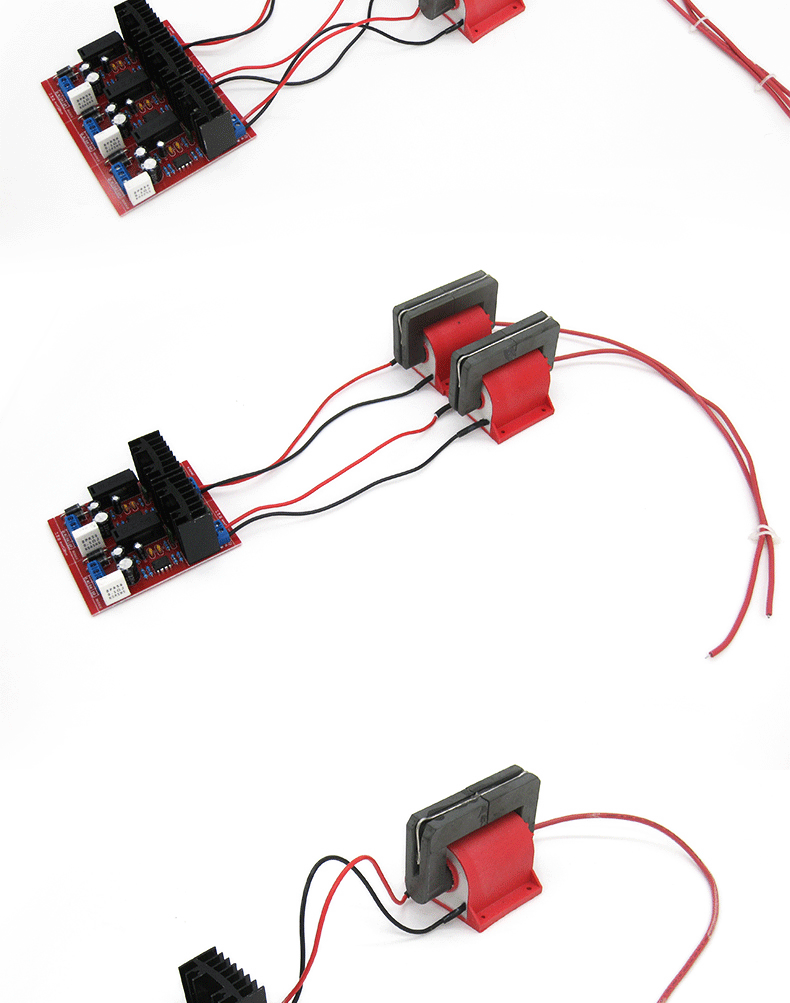

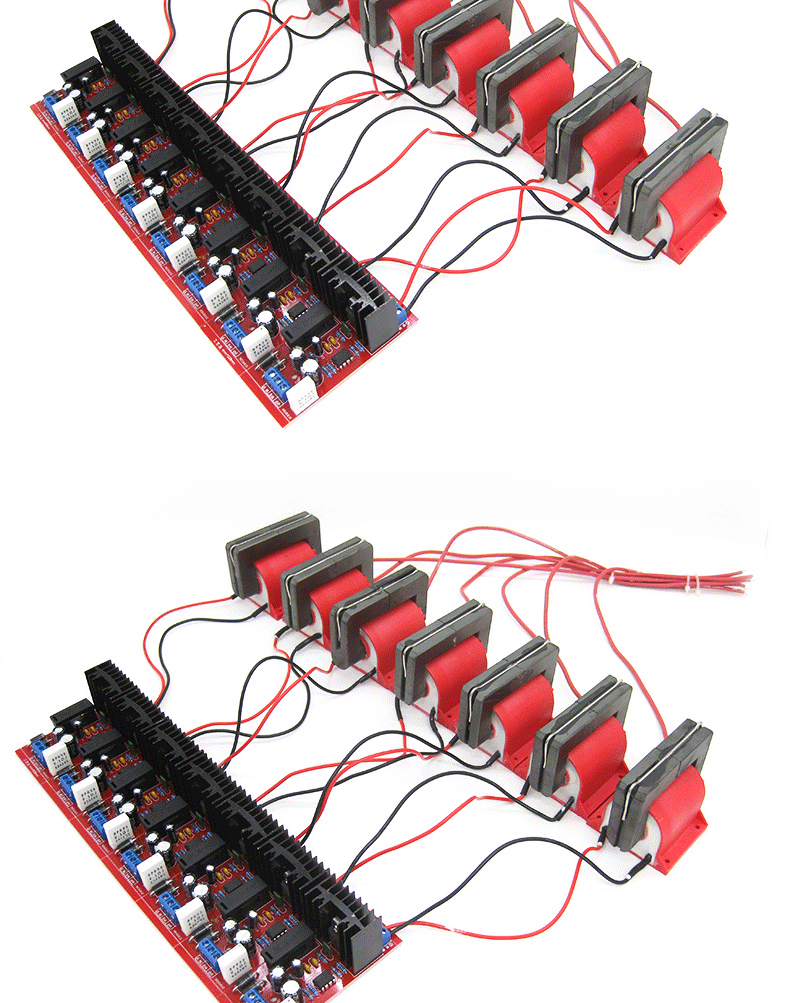

Can be independent: all boards can be broken into independent driving plates adjacent positions are mechanically V-cut.
Independent driver board benefits.
High power and high efficiency, even if there is a problem with a drive board, it will not affect other work.
