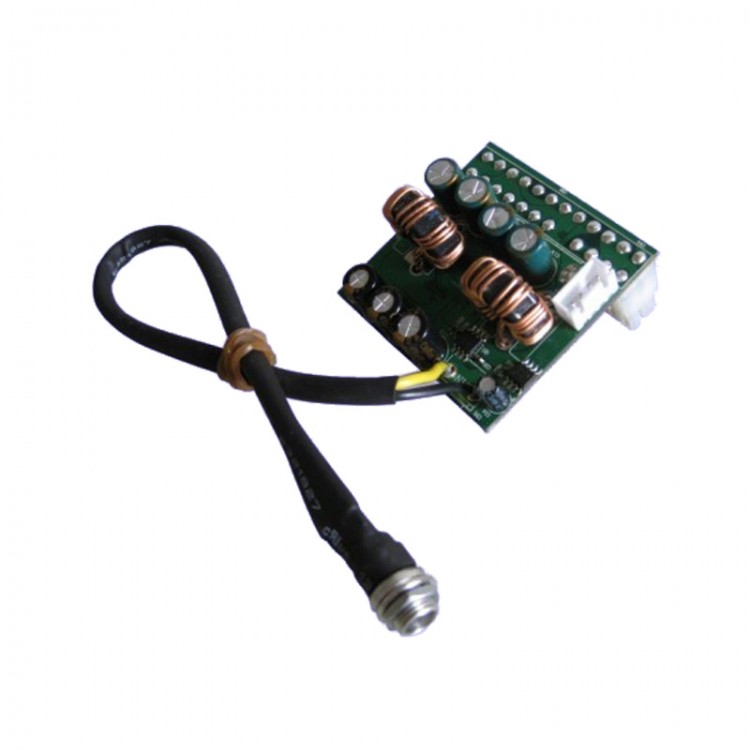

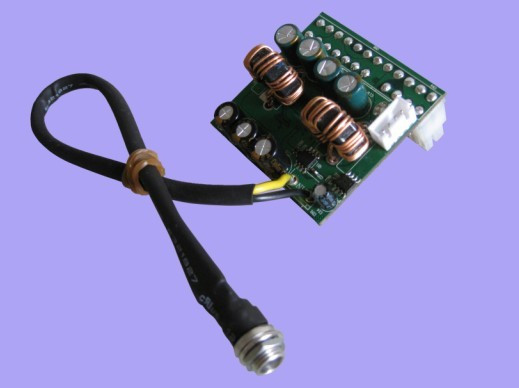

High Power Plug DC-ATX Electricity Supply PPB-12-200W 12VDC Input 200W DC to ATX

High Power Plug DC-ATX Electricity Supply PPB-12-200W 12VDC Input 200W DC to ATX


Item Features:
- Product Mode: PPB-12-200   12VDC input      200W DC to ATX Power
- 12VDC input  200W  ATX Output
- Output Overvoltage,Undervoltage Short circuit protection function
- Over 90 percent high conversion power

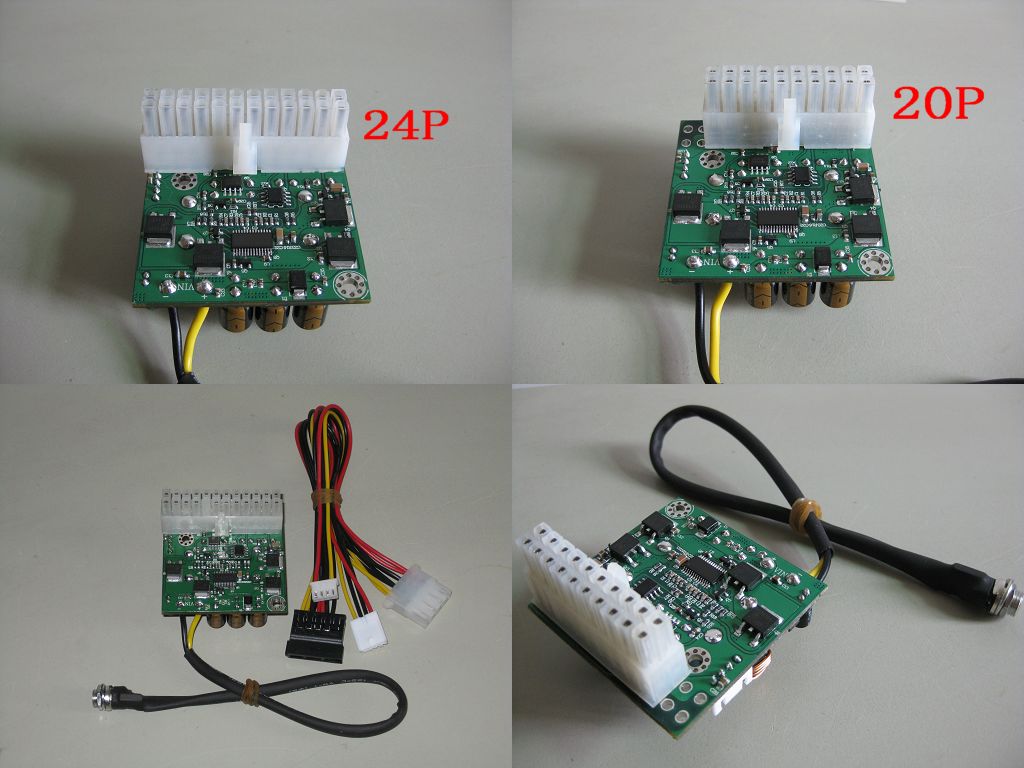

- Standard ATX (20P/24P,Optional) output
- The power is designed for MINI-ITX  mainboard
- Supply power for VTA Weisheng and ESC Mini-ITX Mainboard.
- Application area:Integrated machine,Tax control machine,IPC,Mini ATX mainboard application.
- DC/DC ATX power supply for automobile application, 12VDC input.

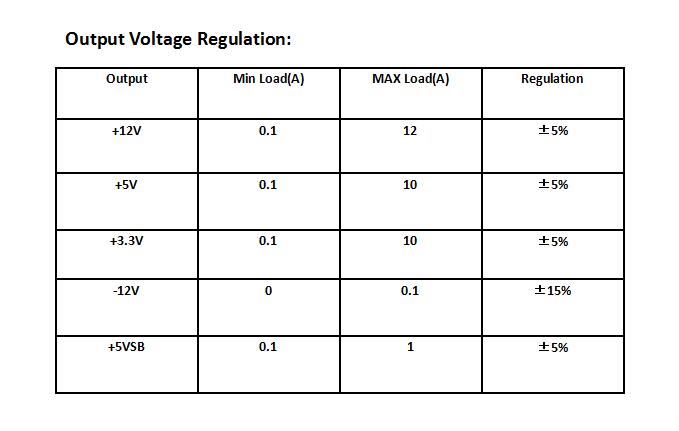

- Output:+5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.

Product Specification:
- The smallest 12V DC to DC power supply
- Convertor in the world.
- Adopt industrial solid capacitor, ideal for being used in
- Harsh evironment
- High performance with high heat-stand feature, more realiable
- Fanless DC-DC solution for 100% mute operating .
- Compact design, special for mini-itx and 1U case.

Parameters:
- Dimensions(mm):L50x W50x30H
- DC Input: 12V
- DC Output : 200W
- Input Current: Max. 15A
- Efficiency: above 92%
- MTPF: 100,000H
- Operating Temperature: 0℃ ~ 60℃
- Storage Temperature: -40℃ ~ 70℃

Package List:
- 1  x  High Power Plug  DC-ATX Electricity Supply PPB-12-200W 12VDC
- 1  x Connecting Wire
