High-Precision Fiber Cleaver Fiber Optic Cleaver Cold Splicing and Hot Melting Tool Accessory

High-Precision Fiber Cleaver Fiber Optic Cleaver Cold Splicing and Hot Melting Tool Accessory

Features:
- Flat cut surface; drop resistant and durable
- Suitable for cold splicing and hot melting
- Four-column support design makes it not easy to break
- In the event of a drop, the soft-encapsulated design cushions the impact

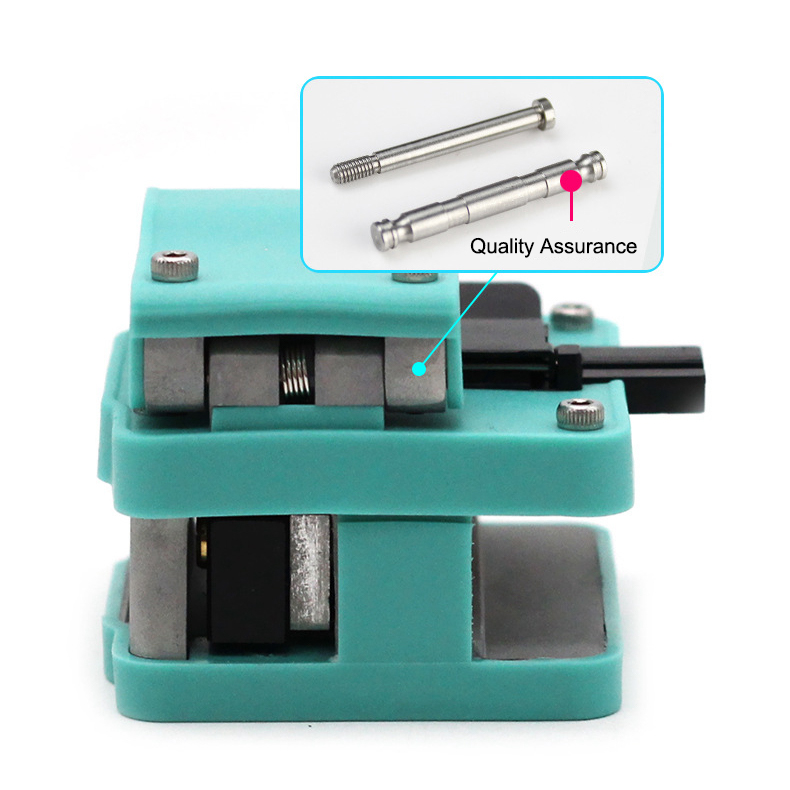

- Its reinforced shaft is resistant to falling and not easily deformed. Its shaft diameter cross-sectional area is twice that of traditional cleavers

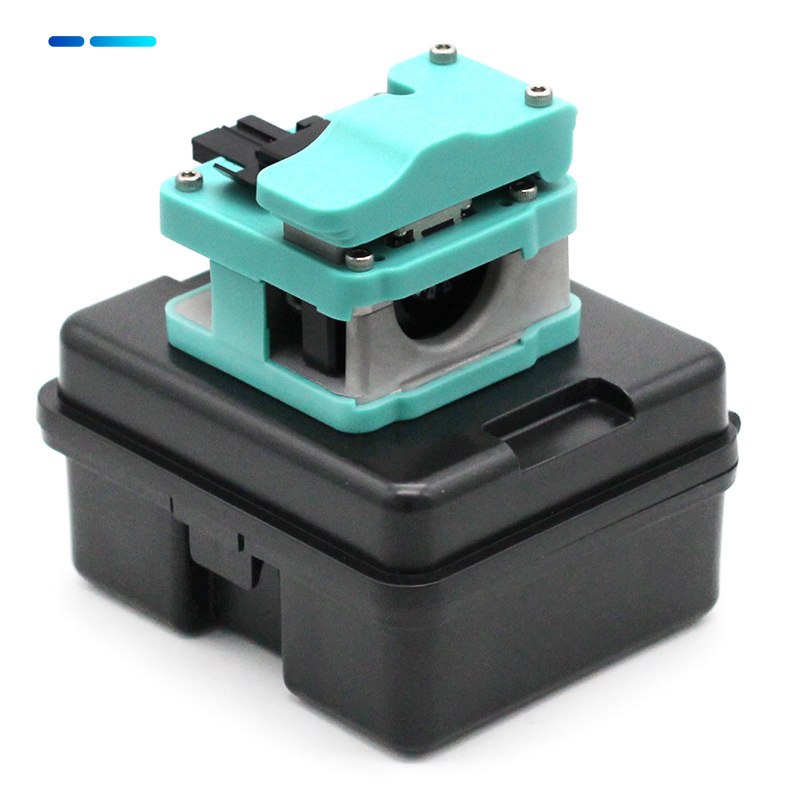

- Drop-resistant hard case provides all-round protection
- CNC machine finishing ensures high precision. The end face after cutting is smooth and free of burrs. Ideal working angle
- In cold weather, stainless steel rubber pressure pad can prevent fiber breakage; durable, oil and alcohol resistant

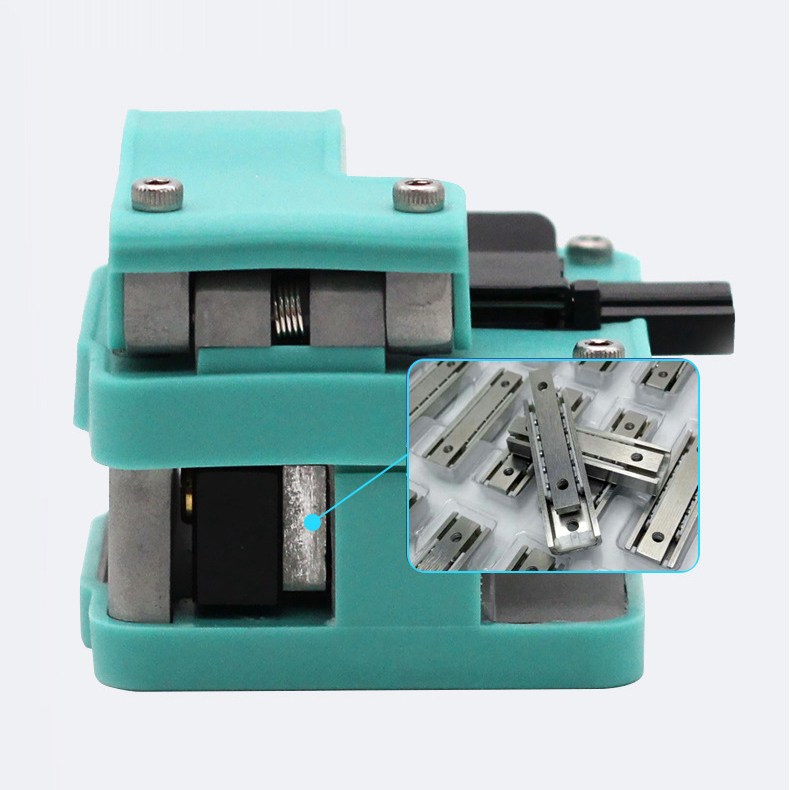

- High-quality stainless steel slides ensure smooth operation
- Automatic tool return improves work efficiency
- Protect your hands: prevent your fingers from contact with the blade
- Soft rubber makes you feel good in winter
- 3-in-1 clamp with scale. Suitable for optical cable, covered wire, and fiber pigtail

Technical Parameters:
- Applicable fiber: single core silica fiber
- Cladding diameter: 125μm
- Cutting angle: < 0.8°
- Coating diameter: 0.25mm and 0.9mm
- Blade life: 48000 times
- Cutting length: 9~16mm (diameter 0.25mm); 10~16mm (diameter 0.9mm)
- Product size: 60 x 57 x 46mm/2.4 x 2.2 x 1.8"

Package Included:
- 1 x Fiber cleaver
- 1 x Storage box
- 1 x Allen wrench
- 1 x User manual

How to Adjust Blade Height:
- Under normal circumstances, users do not need to adjust the height of the blade, because we have checked its height before shipping. In the event of an abnormality, first use a cotton swab (do not dip it in alcohol) to clean the rubber surface of the fiber holder and the edge of the blade to eliminate the poor cutting caused by dirt.
- The performance of low blade position: Uncut fiber; there are bumps (tails or notches); broken cores; bevels
- The performance of high blade position: The fiber has cracks; the end face has shadows; the angle is large

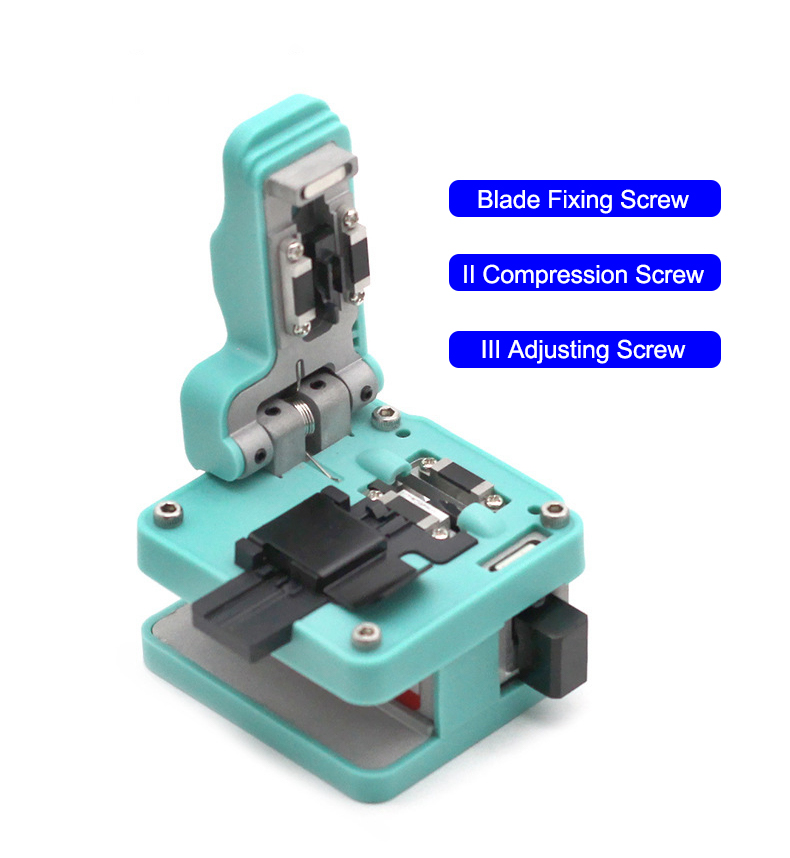

- If it is confirmed that there is something wrong with the blade height, please deal with it according to the following methods. 1. Increase the height of the blade: First loosen screw II counterclockwise 1/8 turn, then tighten screw III clockwise. 2. Lower the blade height: First loosen screw III counterclockwise 1/8 turn, and then tighten screw II clockwise. (Note: Rotate the blade up to 1/8 of a turn each time you change the height of the blade.)
- Make sure the blade height is adjusted: Place a piece of 20mm/0.8" stripped bare fiber on the stainless steel rubber pad, and push the cleaver holder so that the tip of the blade slightly touches the fiber.
