High Quality Battery Charger Module for Vifly Second Generation New WhoopStor FPV 1S 3.7V Lithium Battery BT2PH

High Quality Battery Charger Module for Vifly Second Generation New WhoopStor FPV 1S 3.7V Lithium Battery BT2PH

Features:

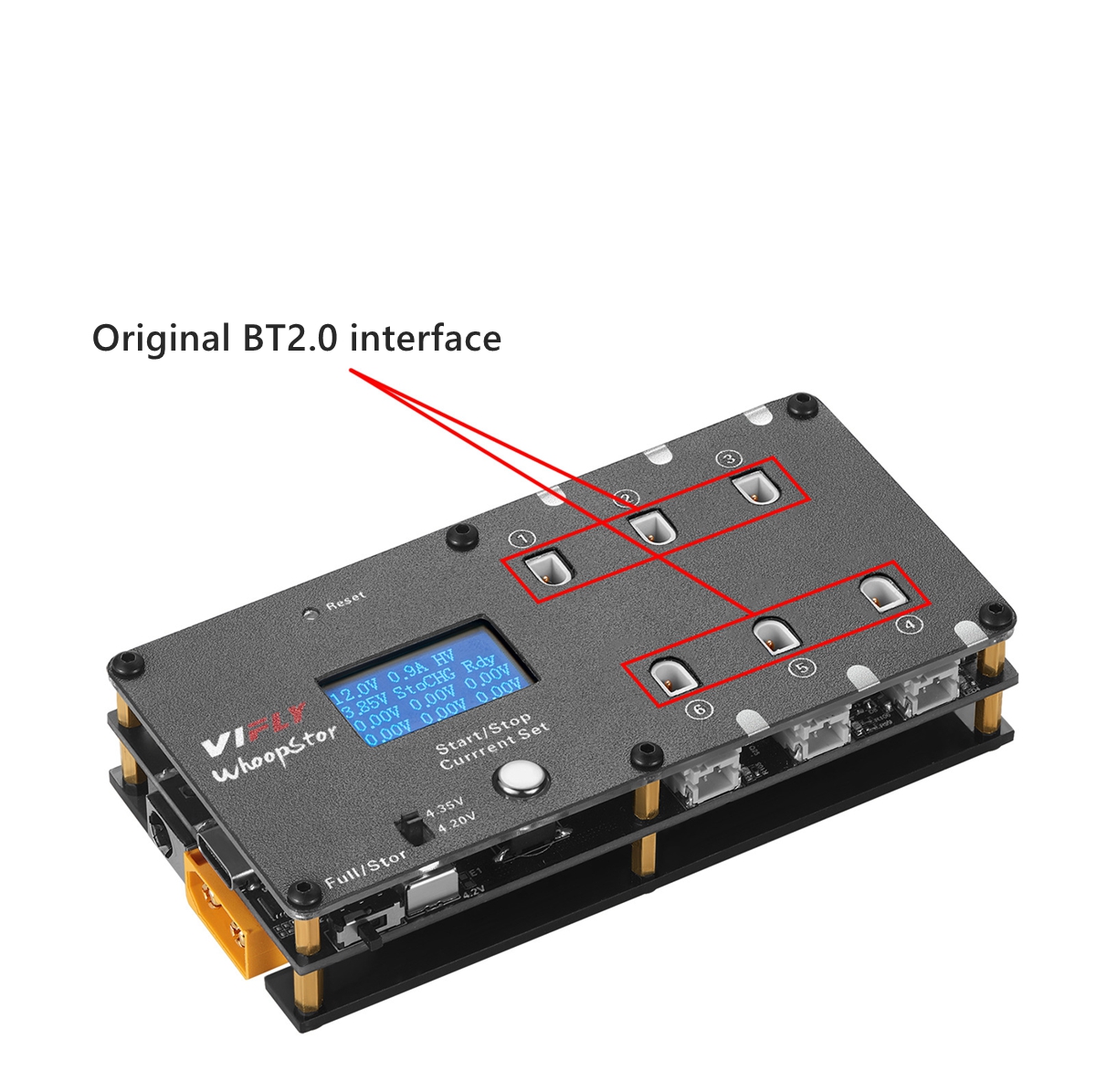

- It adopts original BT2.0 interface, which will be tight enough after long-term use.
- It has 6 independent channel to charge or discharge for 6 1S battery, which will not interference each other.
- Compatible with PH2.0 and BT2.0 interface (they are both original), two types of interface batteries can be mixed. (Two interfaces of the same set of charging ports cannot be used simultaneously.

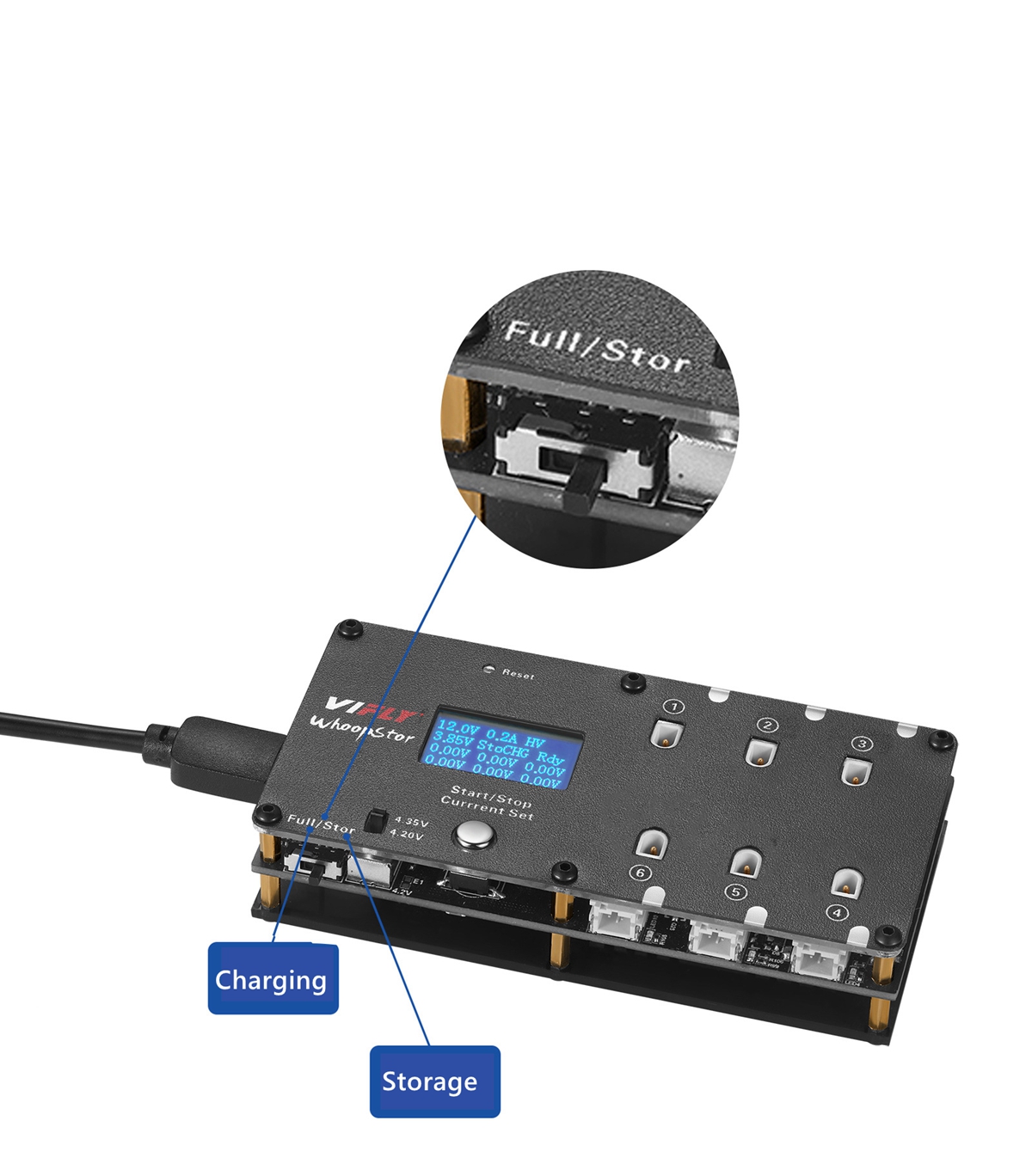

- According to the different gear you choose, the New WhoopStor can fully charge or discharge your 1S battery to the storage voltage for long-term battery storage.

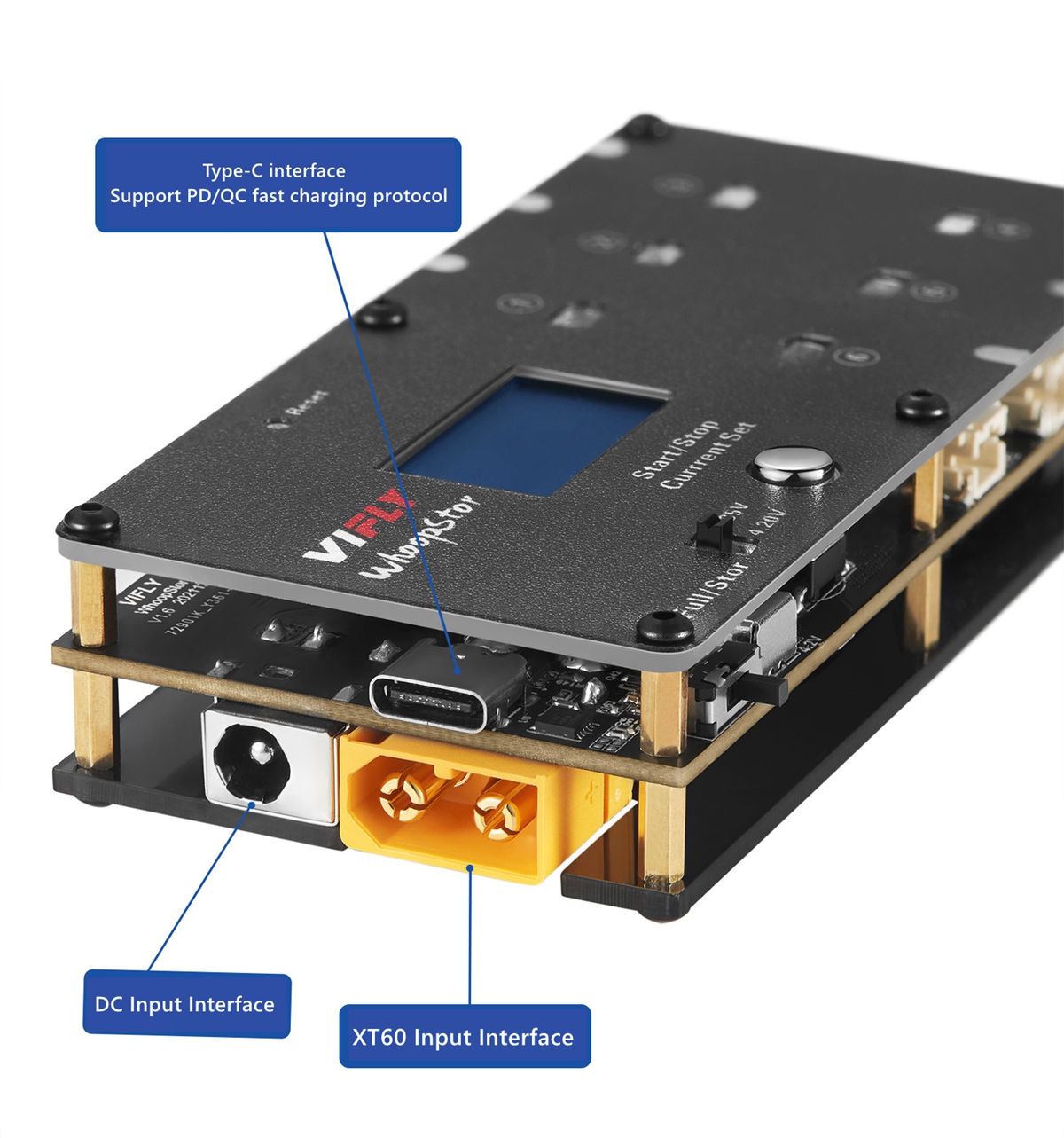

- Support Type-CXT60 and DC interface input (7 - 21V); Type-C used PD and QC protocol that supports fast charge at 9V and 12V, but it not supports regular 5V USB charge.

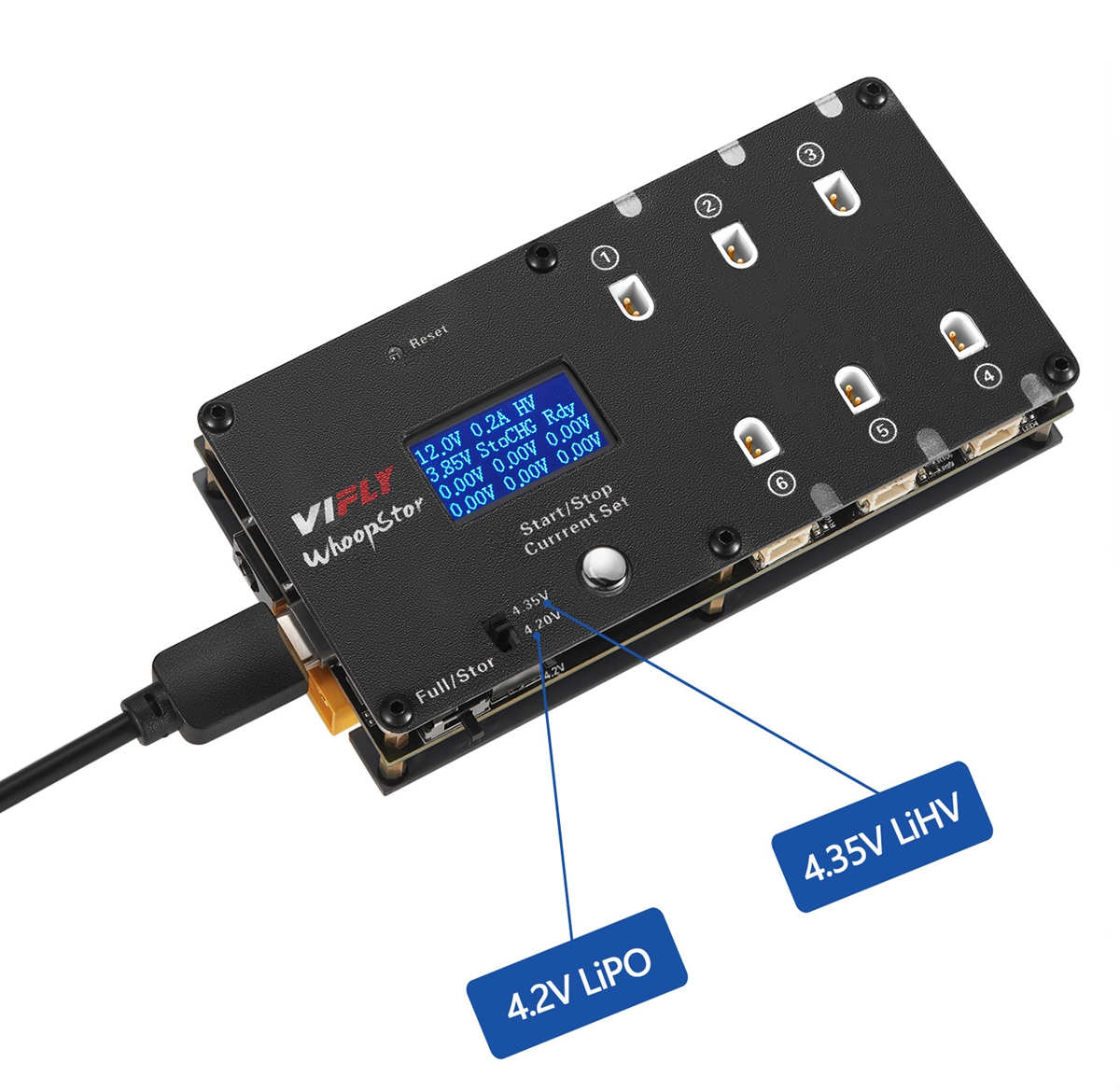

- VIFLY WhoopStor 1S charger supports both regular battery at 4.2V and high voltage battery at 4.35V. You can switch it easily with the button.

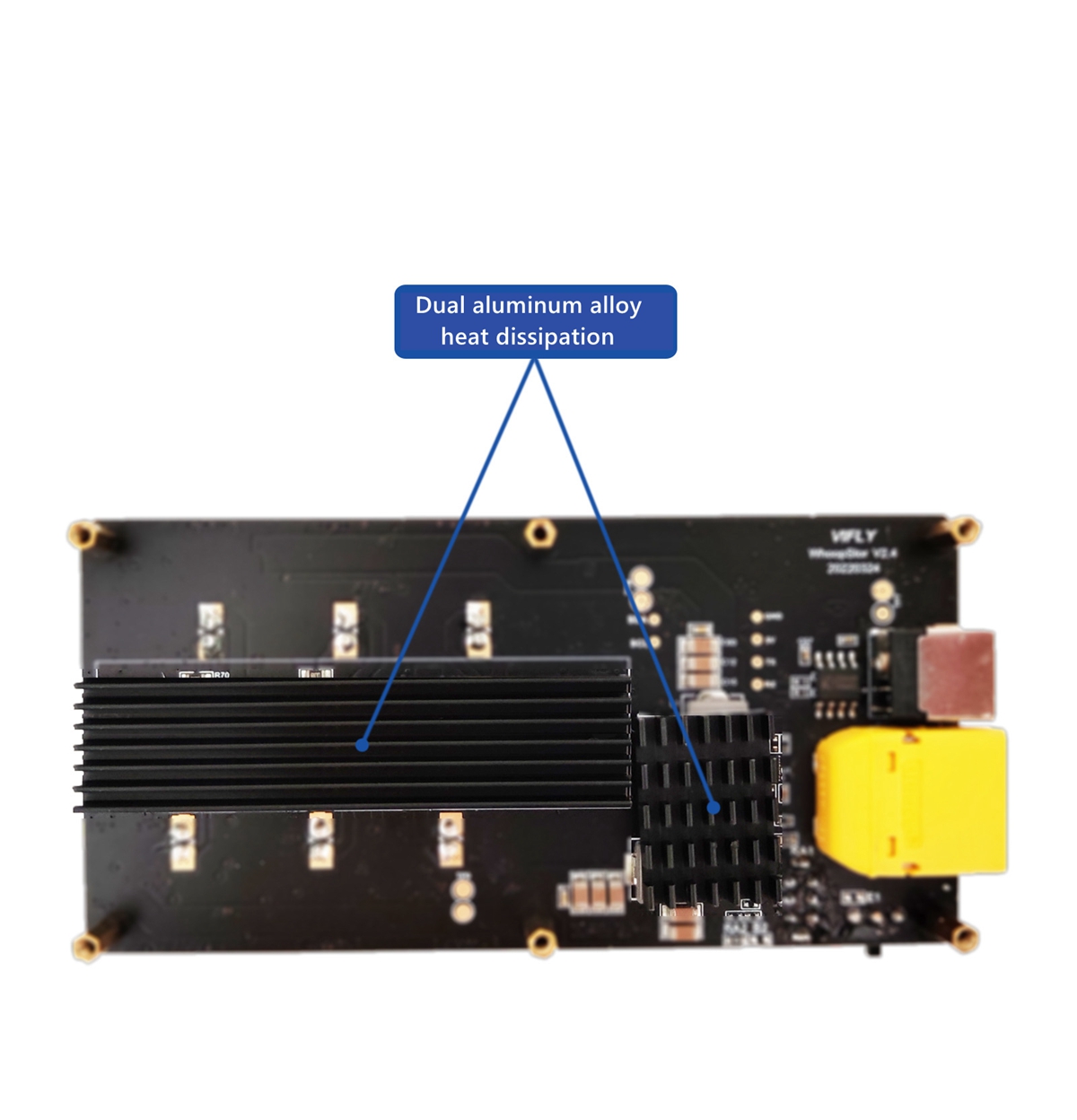

- The big heat sink below the PCB board would effectively dissipate the heat to prevent the unit from overheating when charging or discharging.

Specification:
- Size: 101 x 49 x 22mm
- Input interface type: XT60/DC (5.5 x 2.1mm)/USB-C (PD3.0, QC2.0, BC1.2)
- Input voltage range: 7V - 21V (XT60 2S - 5S battery, DC); 9V/12V (USB-C)
- Maximum input power: 30W
- Maximum charging current: 0.9A/interface
- Supported interface type: PH2.0 and BT2.0
- Supported battery type: LiHV 4.35V and LiPO 4.2V (±0.05V)
- Storage voltage: 3.85V (±0.05V)
- Maximum discharge power: 1W/interface

Package Included:
- 1 x Battery Charger Module

Note:
- Battery is not included.
