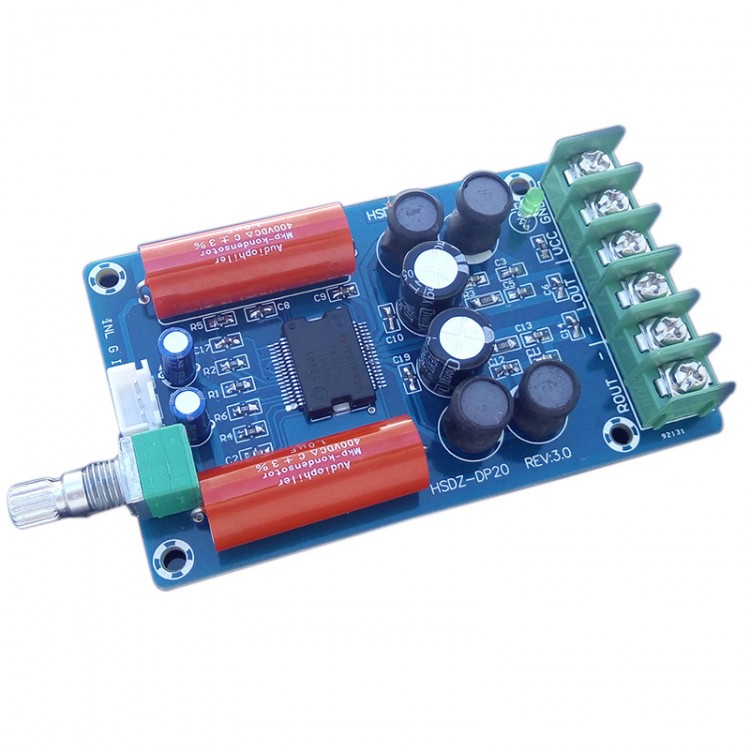

High Quality Class T DC 12V Mini TA2024 Amplifier Board Module HIFI Digital Audio AMP
Description:
This is a small digital amplifier board, its expertise is digital signal processing technology and design mixed signal processing and power integrated circuit. It is good, the efficiency high fidelity. Easy to carry, no small body heat. Widely used in multimedia computer, portable audio, home theater, car audio, etc.
Features：
- No heat sink; Suitable for any 4-8 ohms speakers;
- Compared with the traditional AB kind of power amplifier sound extremely high;
- Sound quite or more than class power amplifier;
- Single power design.
Signal Output function :
- Brand new and high quality.
- Voltage: DC 12V
Class-T architecture.
- 0.04% THD+N @ 9W, 4Ω.
- 0.18% IHF-IM @ 1W, 4Ω.
High Power:
- 10W @ 4Ω, 1% THD+N.
- 15W @ 4Ω, 10% THD+N.
- Efficiency: >88% @ 10W, 8Ω.
- Each channel: 15W (Radiator is not necessary)
- Mute and Sleep inputs.
- Turn-on & turn-off pop suppression.
- Over-current protection.
- Over-temperature protection.
- Dimension : 9.2 x 5.3 x 1.65cm -+ 0.2cm.
Note: The amplifier board is 12V DC, the maximum should not exceed 15V DC. The positive and negative can not be reversed.
Package includes:
1 x TA2024 Amplifier Board
