High Quality for Orange Pi 5/5B Metal Case with Cooling Fan and N506 Radiator Support 2280 NVME M2 SSD

High Quality for Orange Pi 5/5B Metal Case with Cooling Fan and N506 Radiator Support 2280 NVME M2 SSD

Description:
- We have added location holes for the Recovery KEY and MaskROM KEY buttons to facilitate the use of these two function keys and also expanded the outer shell to accommodate the entire NVME 2280 SSD, and the SSD can be fixed to the outer shell. In addition, we have added an aluminum radiator for the Orange Pi 5B.

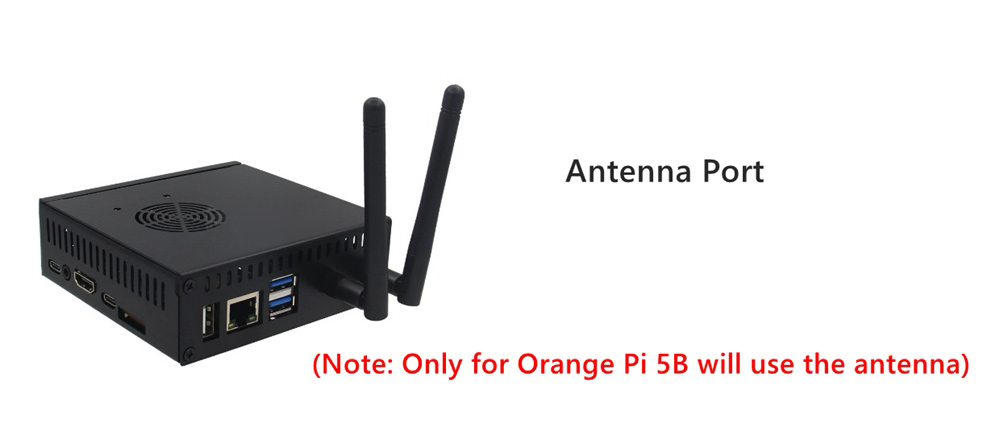

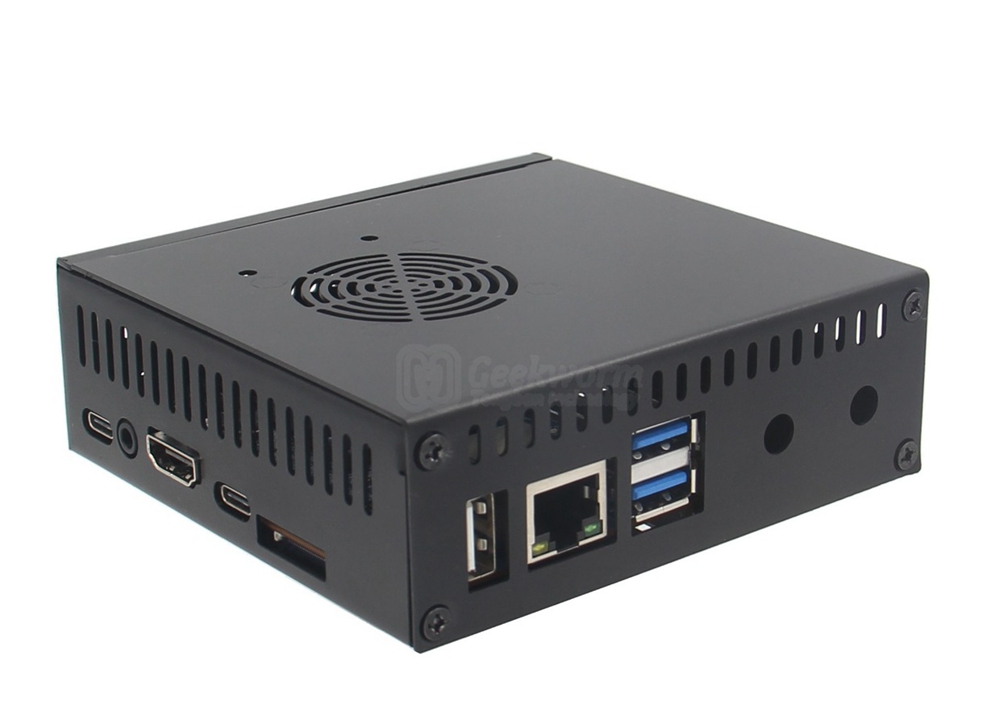

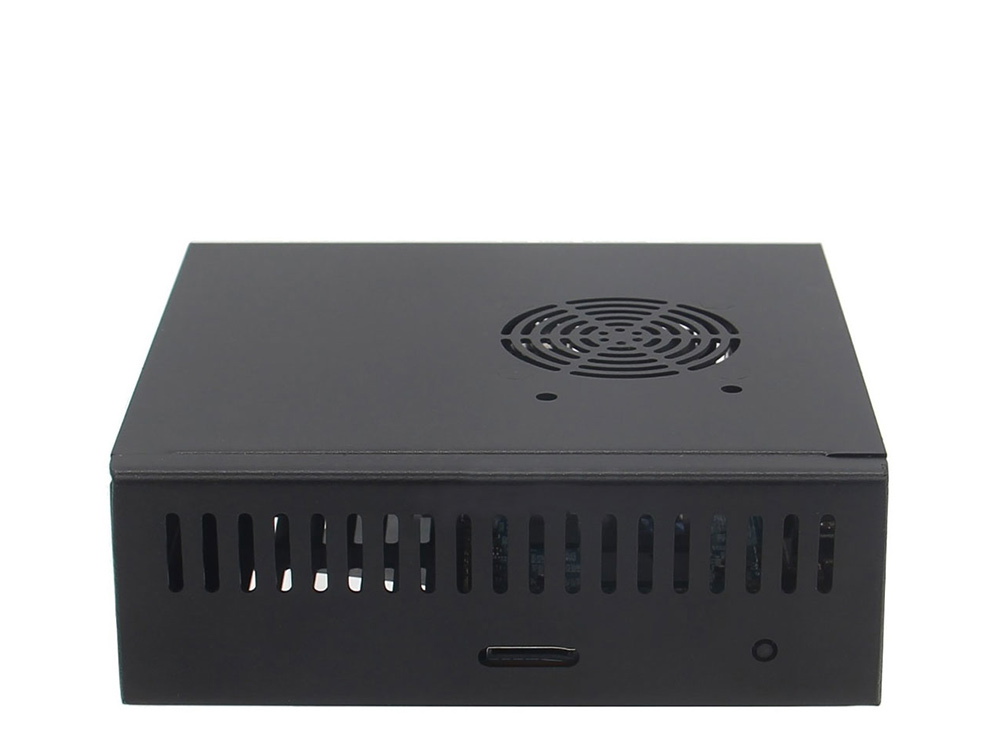

- It is a metal case designed for Orange Pi 5/5B , which support installing M2 NVME SSD with a length of 2280 in the metal case. It retains all the interfaces of the motherboard for Orange Pi 5, supports a 4010 5V cooling fan, and supports the removal of GPIO cables. The N506 metal shell also supports for Orange Pi 5B.

Features:
- Compatible with Range Pi 5/5B
- It adopts high quality galvanization metal materials

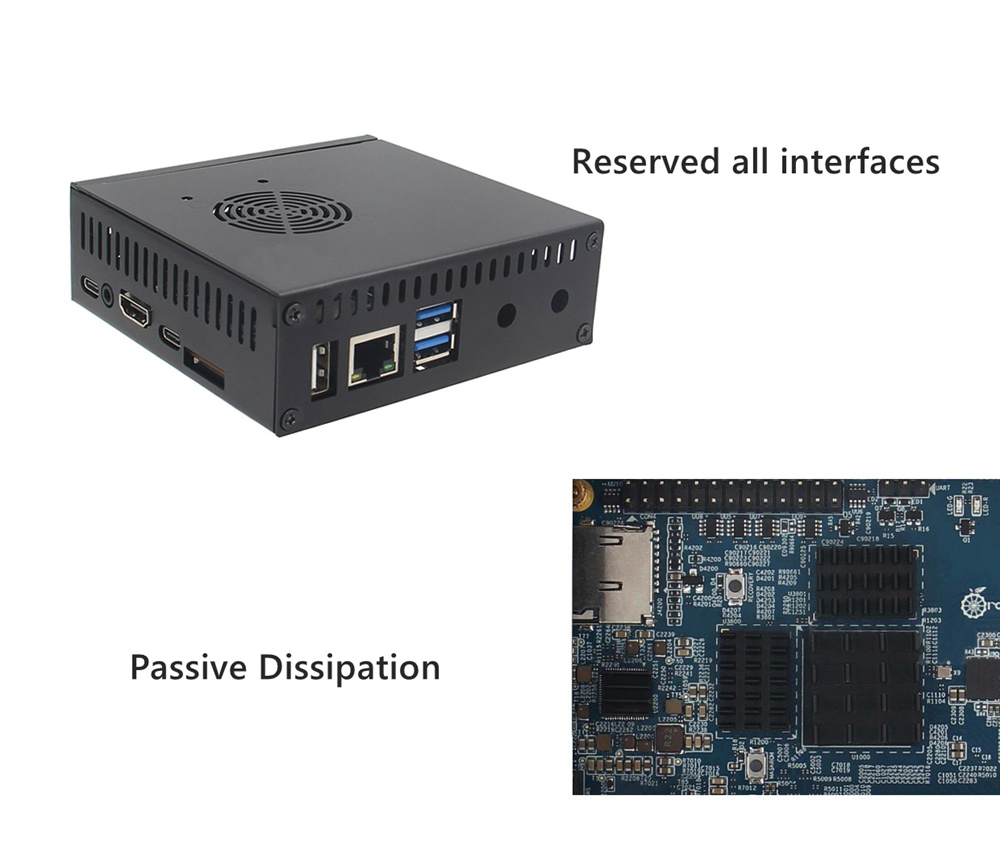

- All reserved ports and slots are customized for Orange Pi 5/5B

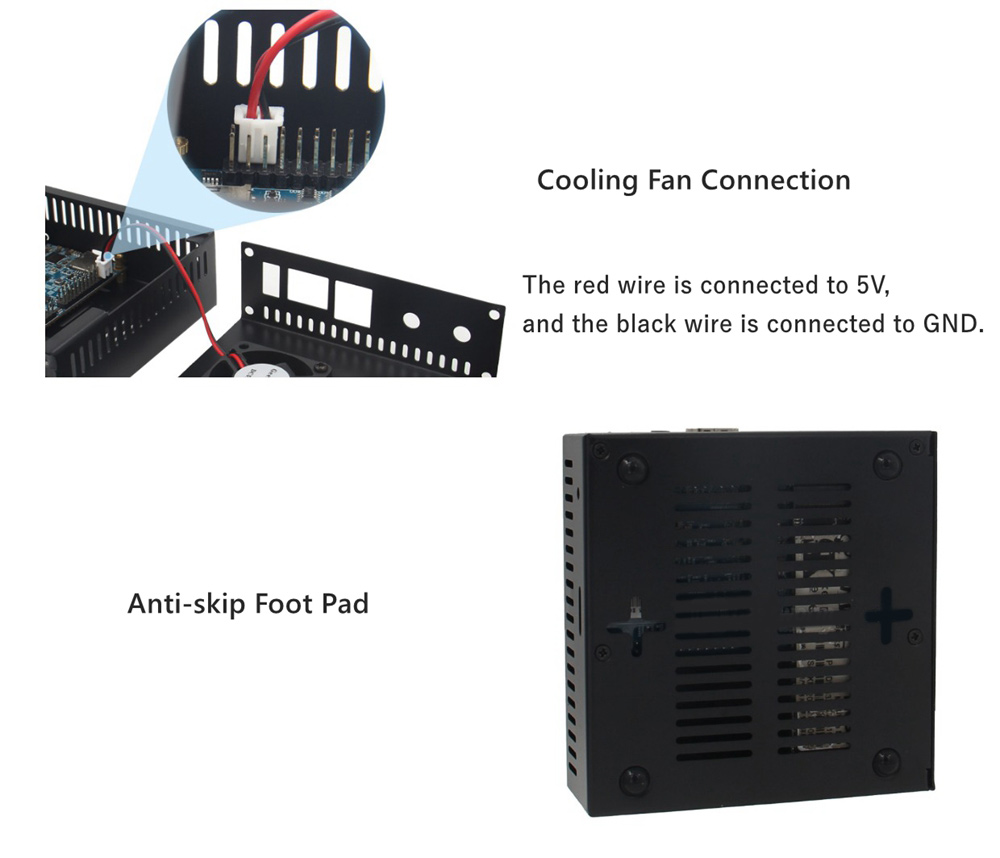

- Equipped with 5 aluminum radiators and 4010 cooling fans, passive and active dual cooling
- The chassis design has hanging holes with a spacing of 75mm, allowing you to hang them anywhere.

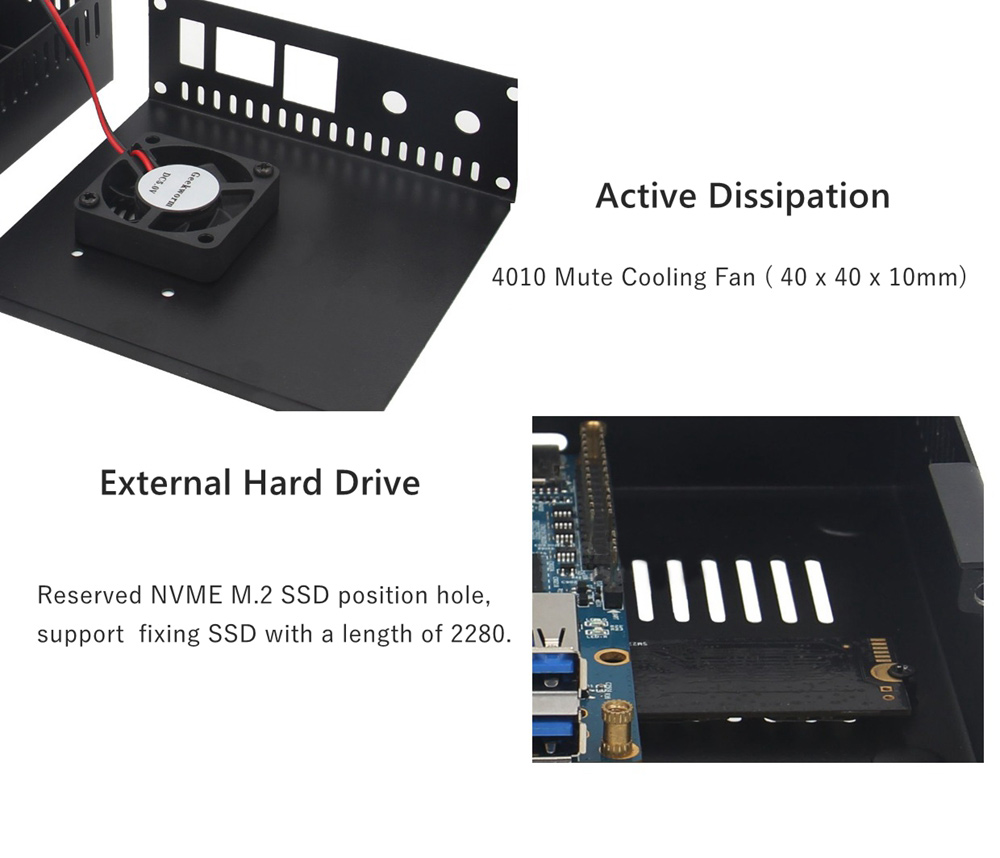

- Fully supports the installation of NVME M2 SSD

User Manual:
- Detail information: wiki.geekworm.com/N506
- Installation video: bilibili.com/video/BV1KV4y1X7Us

Specification:
- Material: Metal
- Size: 108 x 104.8 x 35.8mm
- Color: Black
- Dissipation: Active dissipation (mute fan 4010) + passive dissipation (5PCS aluminum radiator)
- Application: for Orange Pi 5, for Orange Pi 5B

Package Included:

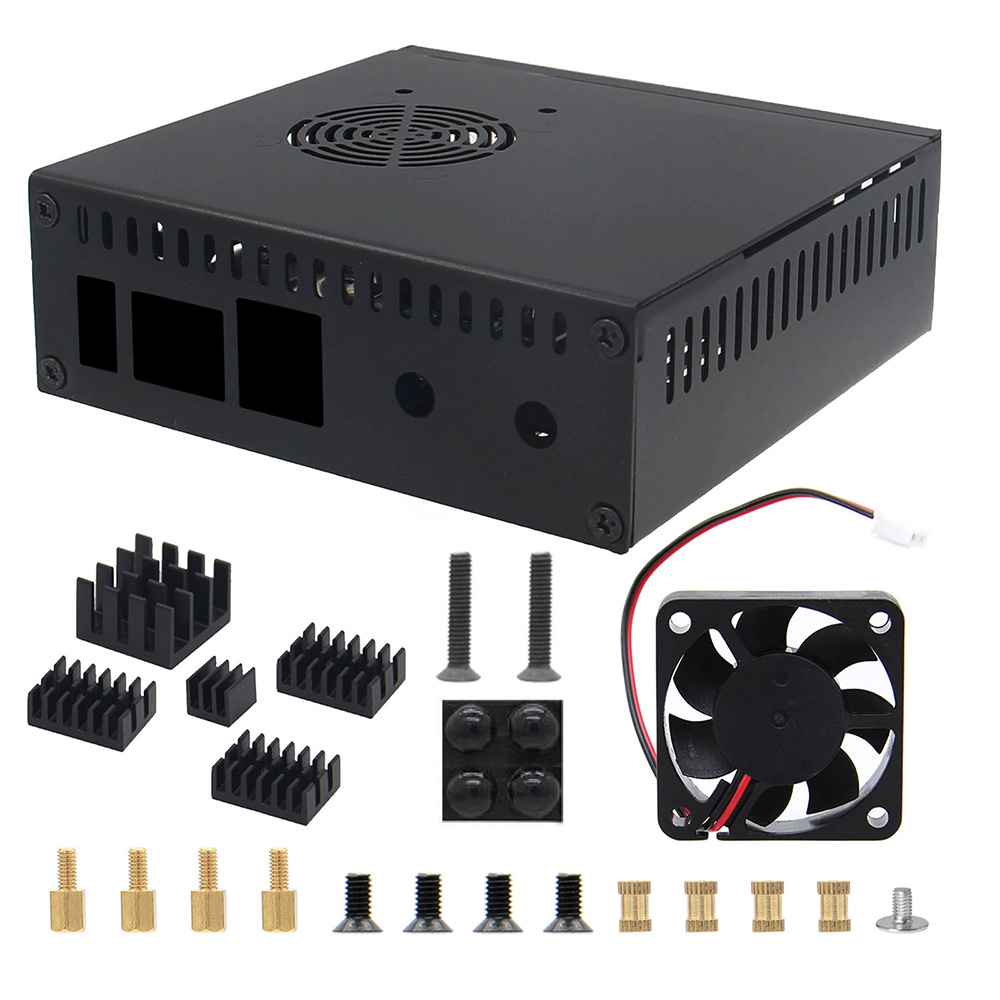

- 1 x Set of Metal Case

Note:
- The motherboard for Orange Pi 5 is not included.
