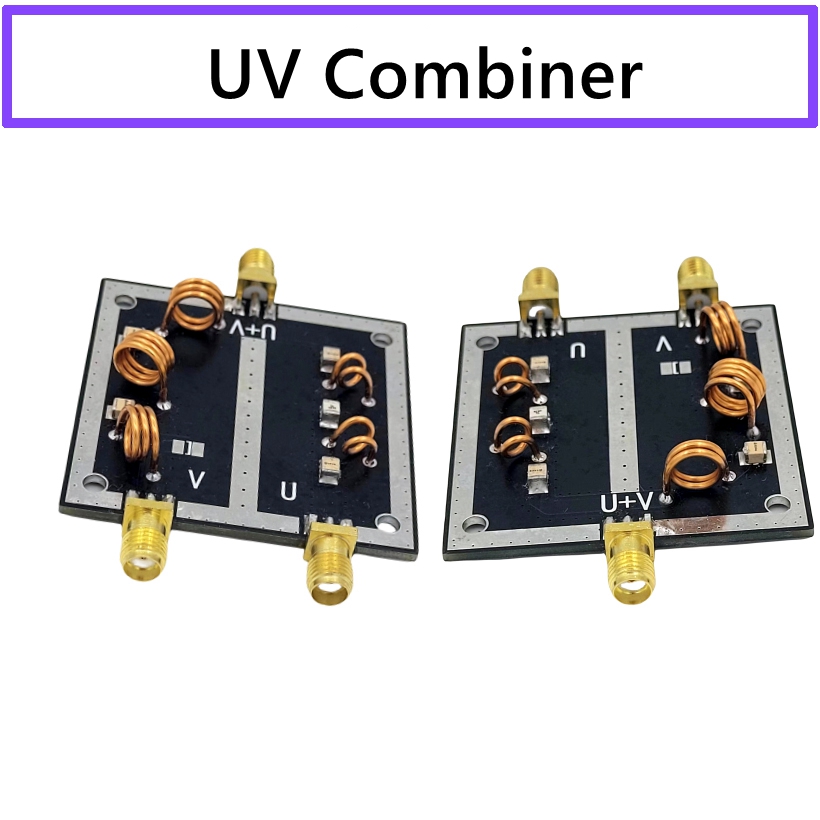

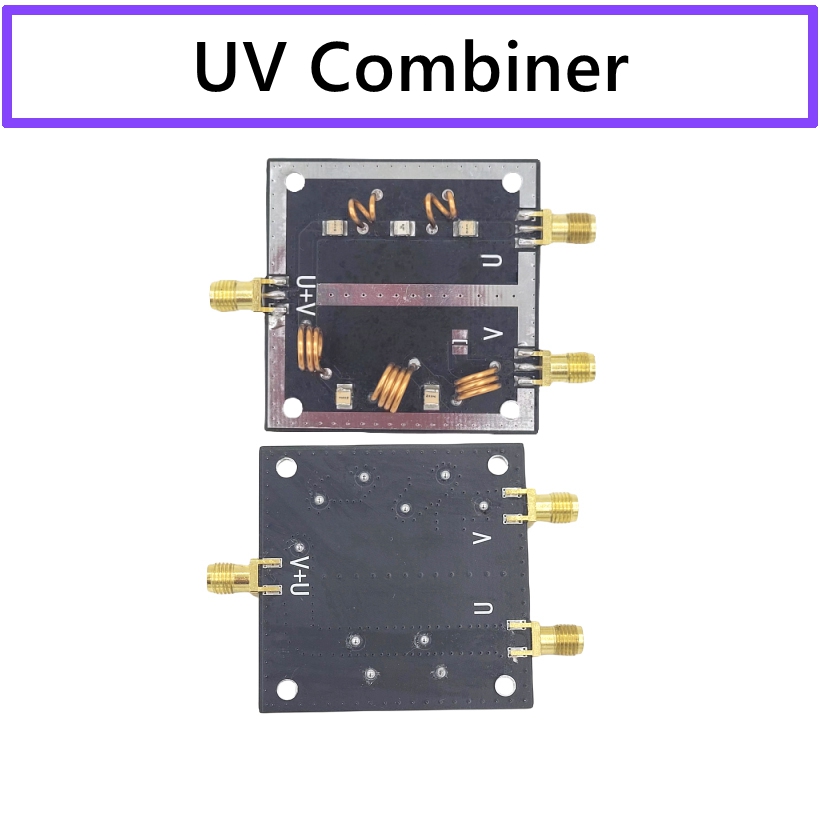

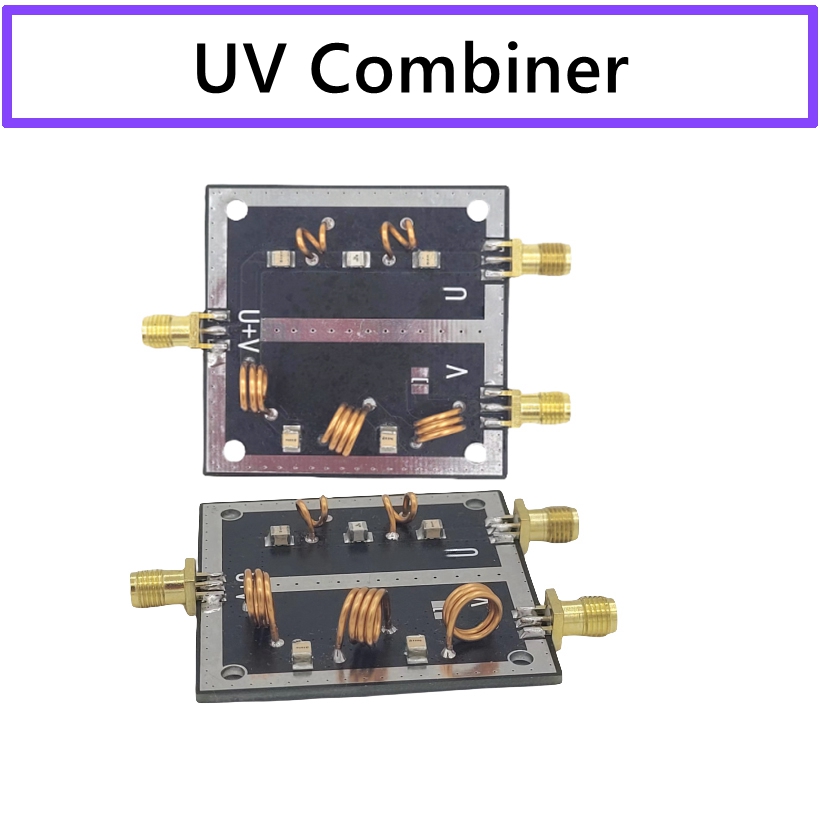

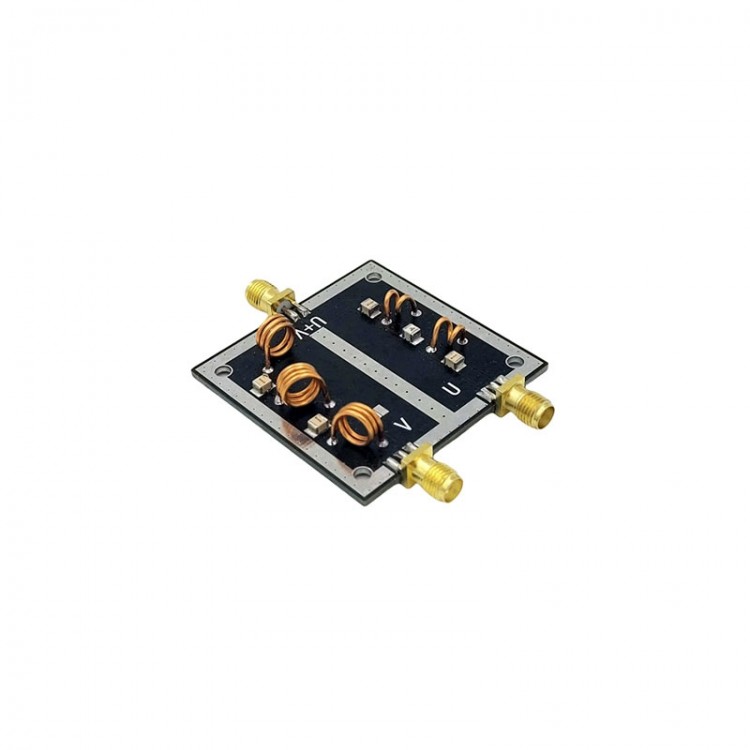

High Quality UV Combiner Large Power Capacity UV Splitter LC Filter Antenna Combiner UHF VHF with SMA Female Connector
Description:
- This passive module is used to synthesize two frequency RF signals in the U and V bands into one channel, or to separate the U and V common channel signals into two independent channels, in order to achieve a shared transmission cable or a shared UV dual frequency antenna for both signals.
- It is suitable for UV differential transmission links or relay stations, etc. The components adopt high-quality high-power high-voltage RF special capacitors from abroad, which have the characteristics of low loss and large power capacity.
Specification:
- Working frequency:
V band: DC-185MHz
U band: 350 - 560MHz
- Insertion loss:
V band: <0.2dB
U band: <0.3dB
- SWR: < 1.5
- UV isolation degree: > 45dB
- Power capacity: 200W

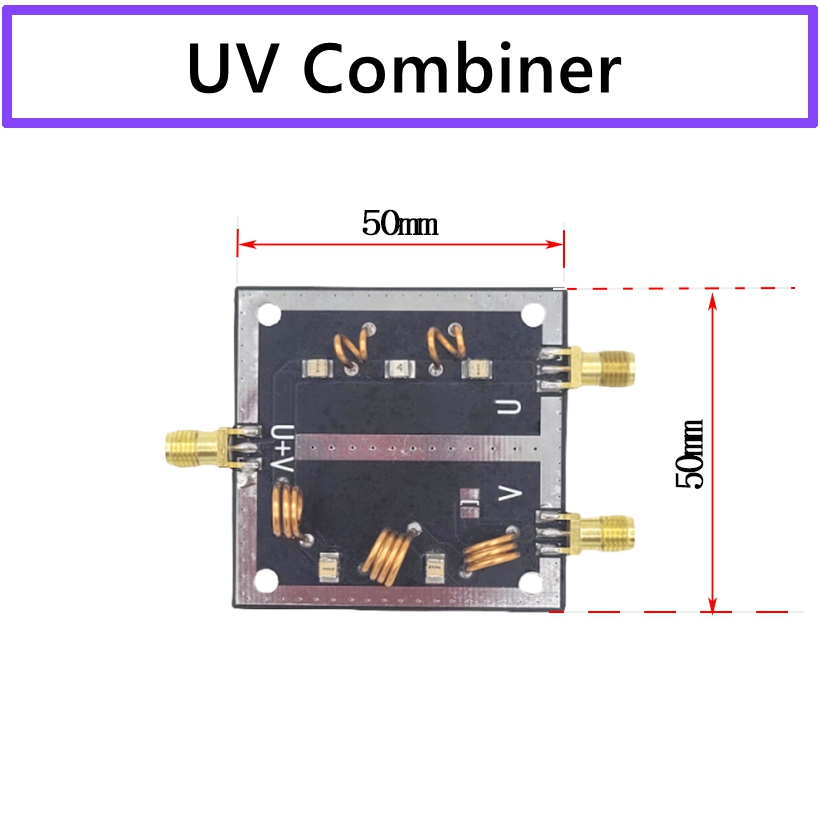

- Size: 50 x 50mm
- Connector type: SMA female connector (SMA-K)
- Connection method:
U: for U band independent signal
V: for V band independent signal
U+V: for U band and V band common signal
- Weight: 18g
Package Included:
- 1 x UV Combiner
