High-Speed Optical Transmitter Module 1310NM & Fiber Optic Receiver For Optical Fiber Communication

High-Speed Optical Transmitter Module 1310NM & Fiber Optic Receiver For Optical Fiber Communication

Attention:
(1) The module interface of our store is clear and the performance is stable. Please use the user manual provided by our store to do functional verification under the corresponding experimental conditions.
(2) The basic parameters of this module are mentioned below. Schematics, PCB and other engineering files are not provided. If you have any operational problems, please consult customer service.
(3) Before using the module, please read the information of this module to understand the power supply and usage restrictions, so as to avoid damage to the module due to improper operation.
(4) All modules in our shop guarantee to provide real module parameters, functions and pictures. All modules have passed tests before delivery.

Optical Transmitter Module:
Description:
The transmitter of the high-speed optical communication module is a module that can convert any input voltage signal into an optical signal and emit it through a laser emitting tube of a specific wavelength. The default emission wavelength of this module is 1310nm, the highest modulation frequency can reach 150MHz, the minimum pulse width of pulse modulation can be 2nS, and the rising and falling edges are less than 2nS. It is usually used in pulsed light conversion and some places such as femtosecond speed measurement. The minimum pulse width resolution of the module is 1nS, and the high pulse width resolution improves the accuracy of the optical sensor field, especially in the femtosecond speed measurement. The module is compatible with most high-speed and low-power laser emission tubes. The module is also suitable for optical applications such as CCD imaging and avalanche photodetection, and can be used for high-speed photodetection, light pulse detection and fluorescent substance detection.

Specifications:
- Module model: high-speed optical communication module transmitter
- Module type: high-speed laser modulation
- Module supply voltage: DC-9V
- Module power supply current: 1A
- Input impedance: 150R
- Input signal type: arbitrary waveform
- Input signal amplitude: 0-3.3V (input signal requirements are all above 0)
- Input signal bandwidth: better than 150MHz
- Output wavelength: 1310nm (other wavelengths can be customized)
- Output interface: FC-UPC
- Output optical power: 3mW (MAX.)
- Pulse width resolution: better than 1nS
- Output rising and falling edge: less than 2ns
- Module protection: power reverse connection protection
- Module weight: 55g

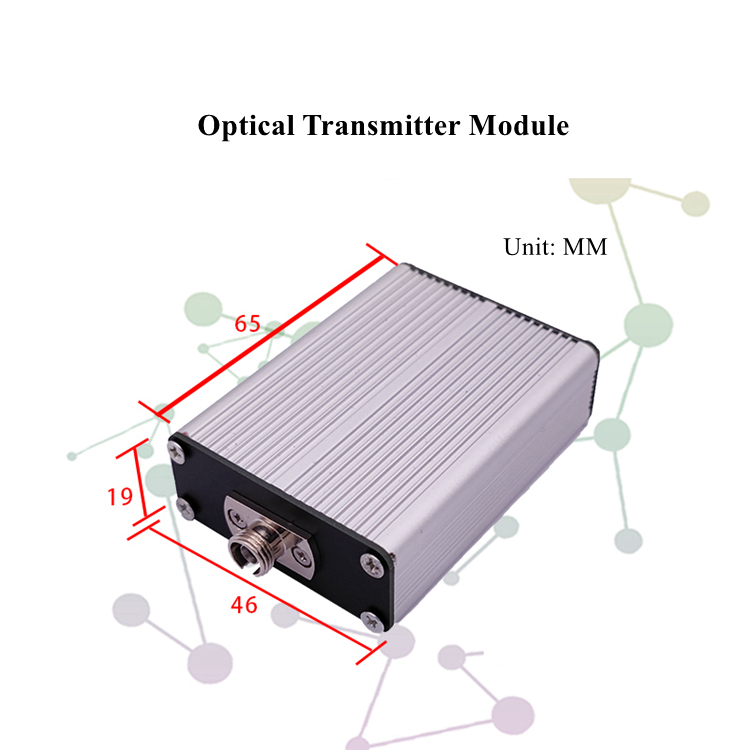

- PCB size: 79 x 46 x 19mm/3.1 x 1.8 x 0.7" (LxWxH)
- Module heating: no heat sink (no heat dissipation required for normal operation)
- Module heating factor: The power supply voltage is too large to damage the chip or the module is damaged
- Module working temperature: -25℃ to 75℃ (industrial grade)
- Module features: output power LED indication, arbitrary signal modulation
- Applications: Optical communication, high-speed signal detection, femtosecond control, etc.

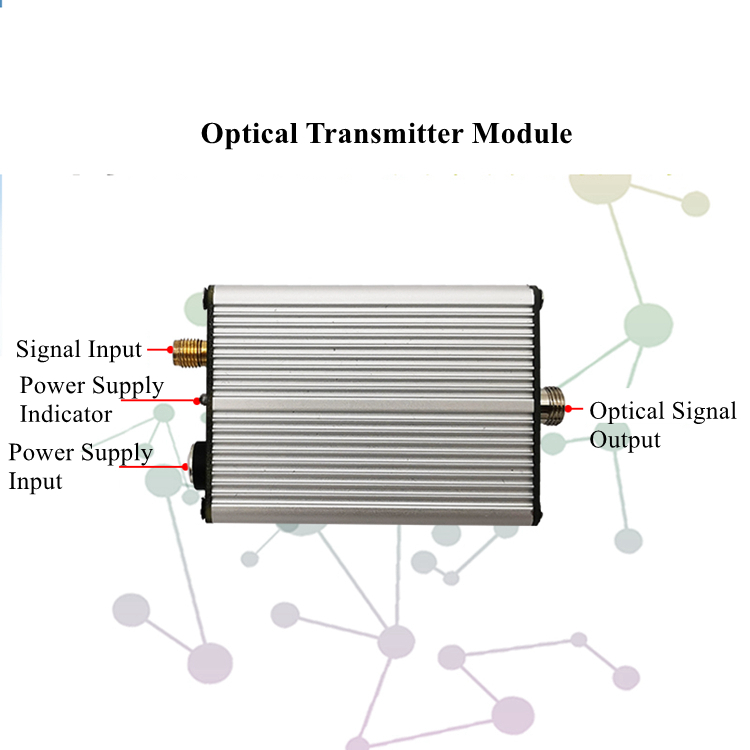

- Module interface type: SMA signal input, DC5.5*2.1 power socket, FC-UPC output

Precautions:
(1) The power supply of the module is a 9V DC power supply. Please not supply power over voltage.
(2) Since the module is a high-speed sensitive device, pay attention to the polarity and voltage of the input signal.
(3) For the input signal, it is recommended to use a wire with a length of SMA interface not exceeding 50cm/19.7" to input the signal to ensure good grounding performance. When measuring high voltage, use a high-voltage attenuation probe. Poor contact or poor-quality wire may cause signal attenuation or excessive noise.
(4) Please not bend the output fiber excessively, otherwise it may affect the signal size and signal quality.

Note:
- Battery is not included in the package.

FAQ:
Q1: Is there a higher power optical output module?
A1: All kinds of driver modules in our shop are under development one after another, including modules with higher power and more wavelengths. Customized services of function customization and size customization are provided. For details, please consult customer service.

Q2: After the signal is input, there is no light output.
A2: Since the 1310nm wavelength band is invisible light, it cannot be observed with the naked eye, so it can be measured with a power meter. And check if the input is correct.

Q3: Is it possible to use batteries and other equipment for power supply?
A3: Yes. As long as the voltage and current requirements of the module are met, 9V 1A is enough.

Optical Receiver Module:
- High-speed pulse reception
- Signal bandwidth: greater than 150MHz
- Pulse resolution: less than 1nS
- Output edge: less than 2ns
- Output impedance: 50Ω

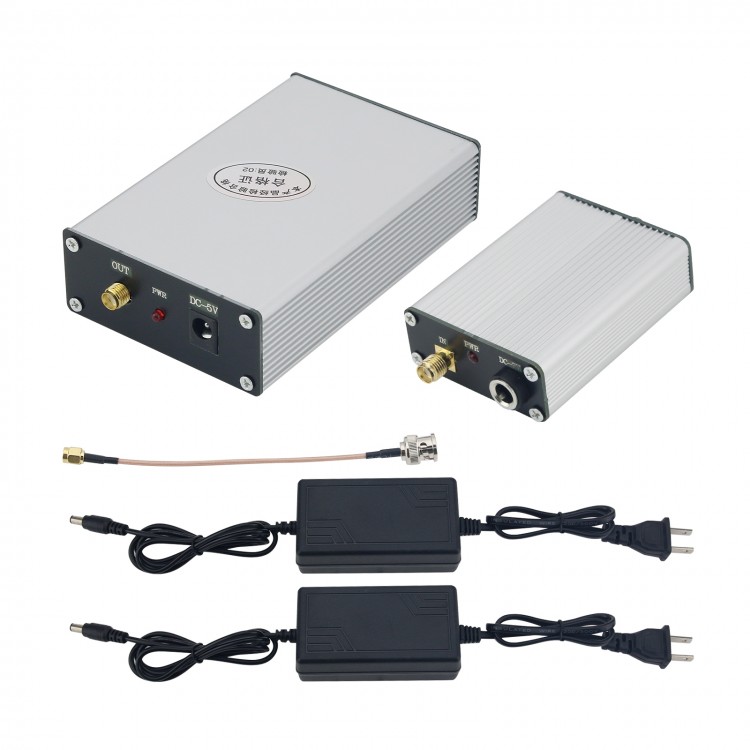

Package Included:
- 1 x Set of Optical Transmitter & Receiver
