Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $127.78 | $125.17 | $121.26 | $116.05 | Contact US |

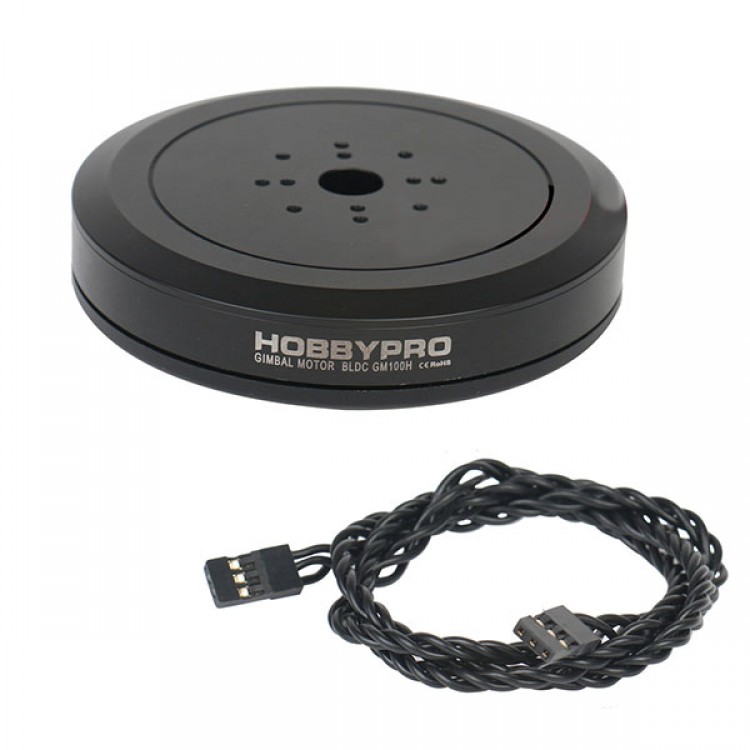

High Torque Brushless Gimbal Motor GM100H BLDC Motor Slipring Sealed Case Gimbal motor For RED EPIC BLACK MAGIC SCARLET Camera
Features
- 3 Axis Brushless Gimbal Motor
- High Precision and Quality
- Sealed Casing, Dust-proof design
- High Performance,Large Torque
- Long Life,Running Smoothly
- Safety and Reliable to keep your expensive camera
Specifications
Item NO.:R100
Name: Gimbal Motor GM100H
Weight(g):472
Motor Dimension[D×L](mm):ø109.8*24.5
Hollow shaft:Y
Diameter of Shaft(mm):12.7
Length of Shaft(mm):N/A
Stator mounting holes[Pitch,Size](mm):35mm,4-M3/35mm,4-M4/45mm,4-M3
Rotor mounting holes[Pitch,Size](mm):25mm,4-M3/35mm,8-M3
Wire length including JR plug:500mm
Copper wire(OD,mm):0.32
Configuration:24N28P
Winding Type:WYE
Turns:150T
Resistance[Ri](Ohm):16.9
Max nominal Voltage:28V
Recommended Voltage(Lipo):4-6S
Camera Range:5.5-9KG
Recommended Camera:Red Epic&Frame and Similar
