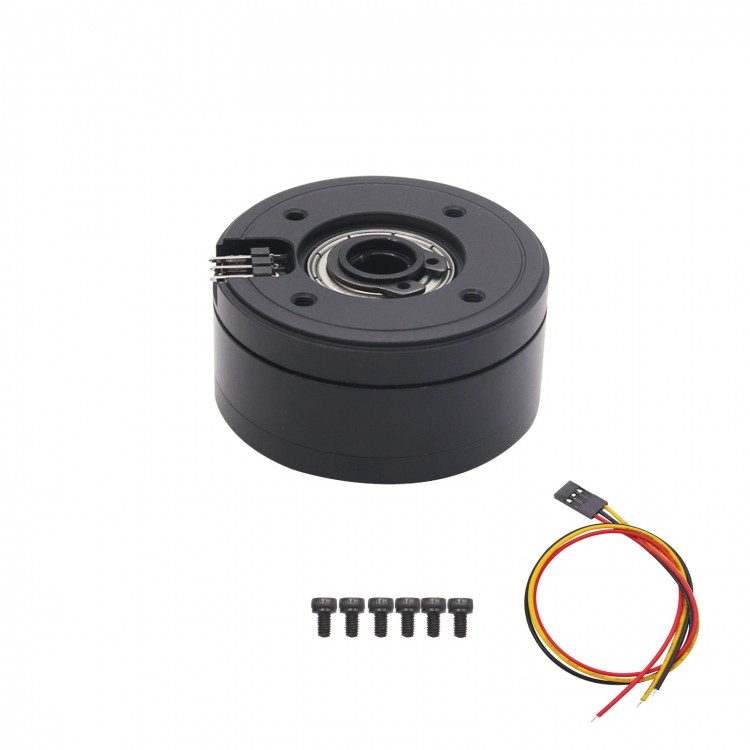

High Torque RC Brushless Gimbal Motor GM4608H BLDC Motor Remote Control Airplane Motor For Mini DSLR Camera Nex6/Nex7and Similar
Features
- 3 Axis Brushless Gimbal Motor
- High Precision and Quality
- Sealed Casing, Dust-proof design
- High Performance,Large Torque
- Long Life,Running Smoothly
- Safety and Reliable to keep your expensive camera
Specifications
Item NO.: E46
Name: Gimbal Motor GM4608H
Weight(g): 102
Motor Dimension[D×L](mm): ø46*25
Hollow shaft: Y
Diameter of Shaft(mm) : 6
Length of Shaft(mm): N/A
Stator mounting holes[Pitch,Size](mm):25mm,4-M3/32mm,4-M2.5
Rotor mounting holes[Pitch,Size](mm): 16mm,4-M3
Wire length including JR plug:350mm
Copper wire(OD,mm): 0.18
Configuration: 24N22P
Winding Type: WYE
Turns: 120T
Resistance[Ri](Ohm): 11.3
Max nominal Voltage: 24V
Recommended Voltage(Lipo): 3-6S
Camera Range: 400-1200grams
Recommended Camera: Mini DSLR Camera,Nex6/Nex7 and Similar
