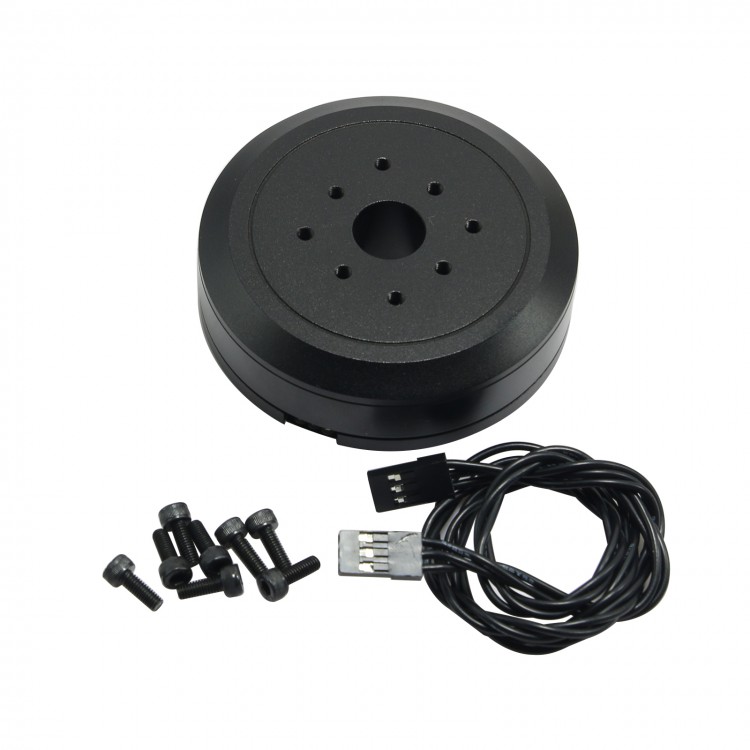

High Torque RC Brushless Gimbal Motor GM7008H BLDC Motor 3 Axis Brushless Motor Hollow Shaft For Yaw Axis of DSLR Camera & Frame
Features
- 3 Axis Brushless Gimbal Motor
- High Precision and Quality
- Sealed Casing, Dust-proof design
- High Performance,Large Torque
- Long Life,Running Smoothly
- Safety and Reliable to keep your expensive camera
Specifications
- Item NO.: D70
- Name: Gimbal Motor GM7008H
- Weight(g): 203
- Motor Dimension[D×L](mm): ø68.2*23.5
- Hollow shaft: Y
- Diameter of Shaft(mm) : 12.7
- Length of Shaft(mm): N/A
- Stator mounting holes[Pitch,Size](mm):30mm,4-M3/44mm,4-M3
- Rotor mounting holes[Pitch,Size](mm): 25mm,4-M3/30mm,4-M3
- Wire length including JR plug:500mm
- Copper wire(OD,mm): 0.22
- Configuration: 24N22P
- Winding Type: WYE
- Turns: 180T
- Resistance[Ri](Ohm): 11.6
- Max nominal Voltage: 26V
- Recommended Voltage(Lipo): 3-6S
- Camera Range: 1000-2850grams
- Recommended Camera: yaw axis of DSLR Camera & Frame
