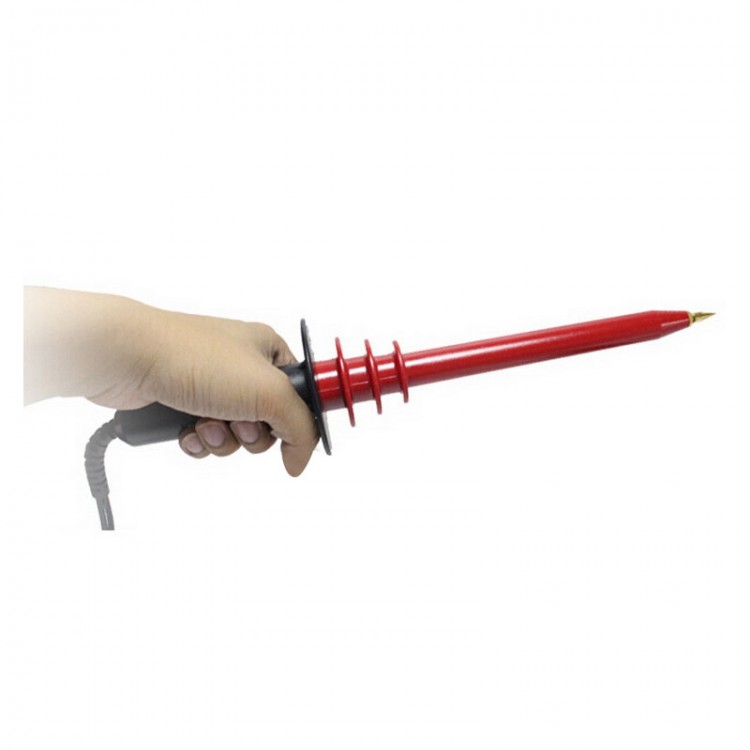

High Voltage Probe 40KV DC 28KV AC 1000Mohm Input Impedance 1000:1
Parameters:
- Model Type: HVP-40
- Input Impedance: 1000MΩ
- Division Ratio: 1000:1
- Max. Test Voltage:
DC: 0 ~ 40KV
AC: 1 ~ 28KV (50 / 60 Hz)
- Safety APPL.:
EN61010, UL3111-1, TUV / GS
IEC 1010 CAT II Pollution 2
- Polarity: Positive / Negative
- Accuracy:
DC: ± 1% to 20KV, ± 2 % to 40KV
AC: -5 % to -10 % (1 ~ 28KV; 50 / 60Hz)
- Temperature Coefficient: ≦ 200ppm/℃
- Maximum Loading Current:≦ 40μA (at 40KV DC)
- Maximum Loading Power:≦ 1.6 watt
- Operating Temperature: 0℃ ~ + 50℃
- Storage Temperature: -20℃ ~ + 70℃
- Ground Lead Length: 90cm (3ft)
- Output Cable Length: 100cm (3.3ft)
- For: DMM
- Output Division: 1V / 1KV
- Remark: For 10MΩ input impedance
DMM (Accuracy < 0.5 %) only
Package Included:
- 1 x HVP-40 High Voltage Probe
