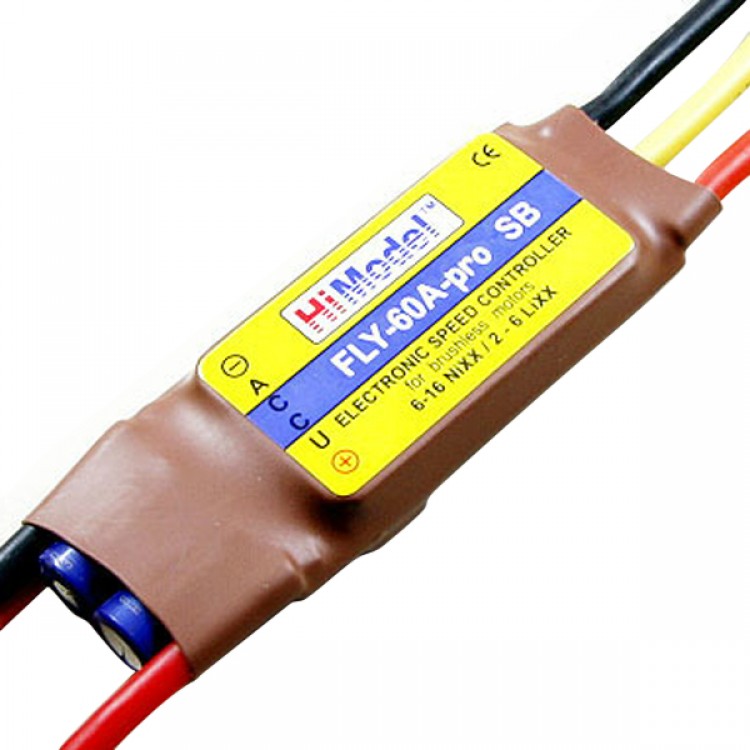

Himodel FLY PRO Seires 60A 2-6S 6A BEC Brushless Speed Control Type FLY-60A-PRO SB

Himodel FLY PRO Seires 60A 2-6S 6A BEC Brushless Speed Control Type FLY-60A-PRO SB
Description
- Super fine and smooth touch of speed controlling, first-rate accurate linearity and quick-respond speed of throttle.
- Separate voltage regulator IC for MCU(Micro Controller Unit), high capability of anti-interference to decrease the possibility out of control.
- Low-voltage cut-off protection of battery, blocked rotation protection and throttle signal lose protection, etc. All these functions can prolong the service life of ESC effectively.
- It can be compatible with a programming card(optional component), which has a simple and visual surface so as to change the parameters conveniently at any time anywhere (reference to the manaul for programming card).
- Good and safe performance of power-on. The motor won’t be started no matter which position the throttle stick is on when the battery is connected.
- All the ESCs of the series can be attached to battery of Li-XX or Fe. The protection voltage becomes more accurate.
- Automatically adjustment of Timing recommended for outrunner and inrunner motors.
- Direction of motor rotation can be changed by transmitter or programming card.
- BEC has adopted the most advanced designing of Switch mode mastered by the main-controlling chip, combining of FET of extremely low resistor against high frequency, current limit protection, high efficiency of chip up to 93%, which can meet the demand of digital servo of high torque or simulating servo fully

Specfication:
- Weight: 53 g
- Size: 70 x26 x16 mm
- Constant Current: 60A
- BEC: Switch mode 5.5V/ 6A
- PWM: 8 KHz
- Input: 2 to 6 Li-Po/ 6-16 NiCd/NiMh
