Product Description:

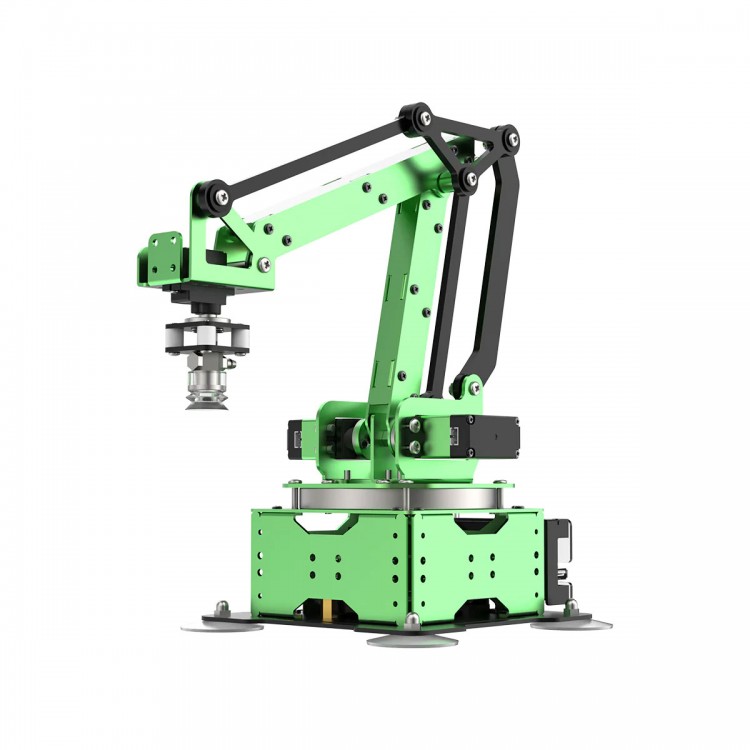

MaxArm is an open-source robotic arm powered by ESP32 microcontroller. The linkage mechanism designed body are equipped with high-quality bus servos and suction nozzle. Using inverse kinematics technology, MaxArm can execute variety of tasks such as object sorting, picking, transporting and stacking.

Designed for Python and Arduino programming and Wi-Fi and Bluetooth communications, MaxArm can also be controlled by APP, PC software, wireless remote controller and mouse (depending on the versions your choose). It also supports variety of sensors to turn your creative AI ideas into reality!

Linkage Mechanism Improves Efficiency
Using the linkage mechanism designed body, MaxArm greatly improves its joints efficiency so as to allow the end effector move along x-y-z axes.


Compact Structural Design
Made from hard aluminium alloy and carbon fiber for high quality. The metal bearings for smoother and more accurate joint movement. Compact design gets the body small and flexible.

Inverse Kinematics Algorithm, Free Adjustment

Provide Linkage Coordinate System Diagram
Based on ESP32 development platform, the inverse kinematics analysis and DH model of MaxArm are available, which allows you to deeply comprehend the working principle of MaxArm.


Linkage Inversion Solution, Easy Control
By inputting the coordinate of the end effector, Inverse kinematics can calculate the angle of each servo to facilitate the action debugging. (Provide the function source code of inverse kinematics)

AI Vision Module Extension
Equipped with WonderCam AI vision module, MaxArm can implement different recognition and tracking tasks by one-click training. Cooperated with fan, dot matrix and other electronic modules, more funny games are involved like AI fan, mask recognition, color tracking, waste sorting.



AI Fan (Face Tracking)


Color Sorting


Waste Sorting


Mask Recognition

Sensors Expansion, to Create More Possibilities
Compatible with glowing ultrasonic sensor, infrared sensor, color sensor, touch sensor and other electronic modules, MaxArm converts more creative ideas into reality!



Ultrasonic Detection and Stacking
With ultrasonic sensor, MaxArm can perform intelligent stacking after detecting the blocks.


Touch Detection and Placement
With touch sensor, MaxArm can detect the touch action and place the blocks.


Color Sorting
With color sensor, MaxArm can recognize and sort the target color.


Intelligent Sound Control
With sound sensor, MaxArm can place the blocks in the corresponding position by recognizing the number of knocks.

Sliding Rail Extension
Through the reserved holes in the base, MaxArm can be easily assembled on the sliding rail. It can perform block picking and transporting to simulate industrial application scenarios.


Product Structure

ESP32 Open-source Controller
ESP32 open-source controller consists of an ESP32 core board and multi-functional extension board. In addition to servo interfaces, it is also equipped with buzzer, LED, USB interfaces and other electronic components. Multiple expansion interfaces are lead out, so that users can directly connect other sensors and execution modules for secondary development. Supporting WiFi and Bluetooth, ESP32 core board is convenient for users to develop the application of wireless data transmission.


Python and Arduino

MaxArm uses Python by default, which is easy to learn.


Program MaxArm with IDE software for Arduino.

Multiple Control Methods

Product Parameters:


Packing List:


Note:
- The robotic arm has been assembled.
- Please note that functions and accessories of the robot arm vary according to the versions you choose. Please read carefully before purchasing. Thank you!
