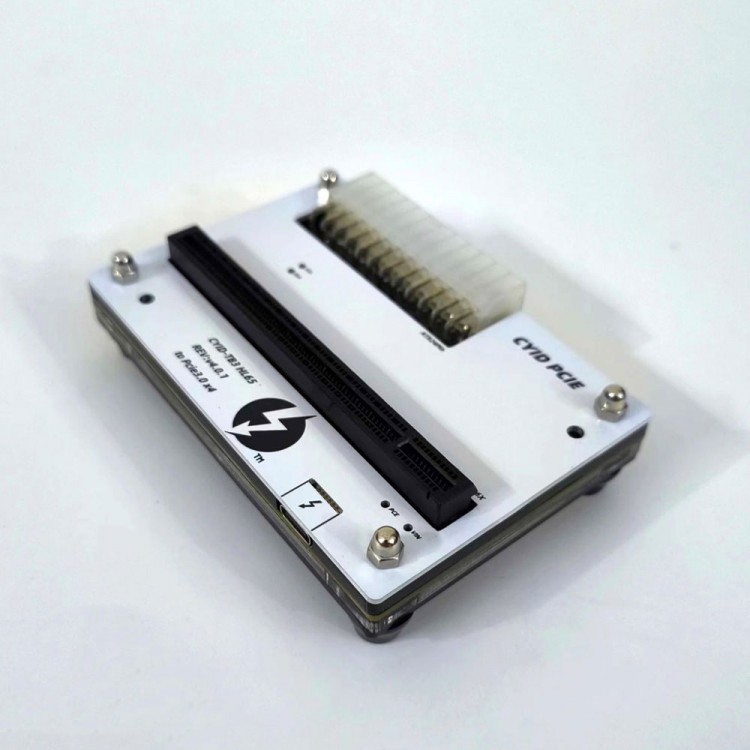

HL65 Graphic Card Dock External GPU Expansion Dock PCIE 16X Slot for Thunderbolt 3/4/USB4 Devices

HL65 Graphic Card Dock External GPU Expansion Dock PCIE 16X Slot for Thunderbolt 3/4/USB4 Devices

Description:
- The main function of this GPU dock is to allow a computer to extend a PCIE interface. The PICE interface can be used to connect external PCIE graphics cards (desktop graphics cards), PCIE sound cards, PCIE network cards, etc. Among them, the external PCIE graphics card of the core display laptop can improve the performance of the graphics card, thereby achieving a similar effect of turning a lightweight laptop into a gaming laptop in seconds.

Computer Compatibility:
- Computers (laptops/Mini consoles/handheld devices, etc.) with Thunderbolt 3, Thunderbolt 4, and USB4 can be used.
- Note:
  a. All 10G and 20G speed interfaces, such as USB2.0/USB3.0/USB3.1/USB3.2/full function interfaces, cannot be used with this product.
  b. For Apple computers with processors for Intel can be used with this product (such as i3, i5, i7, i9, and other computers with Thunderbolt 3 interface); All Apple computers with M1/M2 CPUs are not available. (Physical limitation for Apple CPU, unable to recognize)

Systems and Graphics Card:
- Supports for Windows 10 and Windows 11, and can use graphics cards for AMD and NVIDIA. The N card recommends the 10/16/20/30/40 series, while the A card recommends the RX full series graphics card.
- Supports black and white systems for MAC OS, which only support for AMD driver-free graphics card models (for Google: for MAC OS driver free graphics card list). We do not recommend using an external graphics card for this system as customer service is not familiar with the system and cannot provide technical support. Thanks for your understanding.

Specification:
- Model: TB3-HL65
- Main control: for Intel JHL6540
- Applicable: computers with Thunderbolt 3/4/USB4
- Expansion: PCIE 16X slot (speed rate PCIE3.0x4 Max)
- PCIE 16x slot compatible expansion: for AMD graphics card (RX series), NVIDIA graphics card (7 - 40 series), Intel graphics card (please contact the graphics card customer service for the applicable models), DMA card (it does not support for DMA card as the Thunderbolt 4/USB4 interface for Intel CPU restricts access to memory data, causing DMA to be unusable.), PCIE X4 solid-state drive, PCIE sound card, PCIE network card (10G), etc.
- Other instructions: HL65 does not support reverse charging.
- Start method: connect the power supply of the Thunderbolt 4 data cable to start, and disconnect the power supply of the Thunderbolt 4 data cable to turn off.

Instruction:
Step 1: Hardware preparation
- Prepare a computer (laptop/MINI host/handheld) with Thunderbolt 3, Thunderbolt 4, or USB4 interfaces.
- Prepare a graphics card dock (this product).
- A PCIE device that supports for NVIDIA graphics cards, for AMD graphics cards, PCIE network cards, sound cards, DMA cards, etc.
- One ATX power supply (not included) is recommended to be prepared according to the requirements of the desktop computer.

Step 2: For Windows installation and use
- Insert the graphics card into the graphics card dock, connect the 24Pin of the power supply to the expansion dock, and if the graphics card needs power supply, please connect it fully.
- Connect the Thunderbolt 3/4 data cable (optional), with one end connected to the expansion dock and the other end connected to the computer. Once connected, the power will automatically start.
- Identify new hardware, update drivers, use the "360 Driver Master" app to install graphics card drivers with one click, then it is completed.

Package Included:
- 1 x Expansion Dock

Note:
- Other products such as graphics cards, power supply displayed in the picture are not included.
