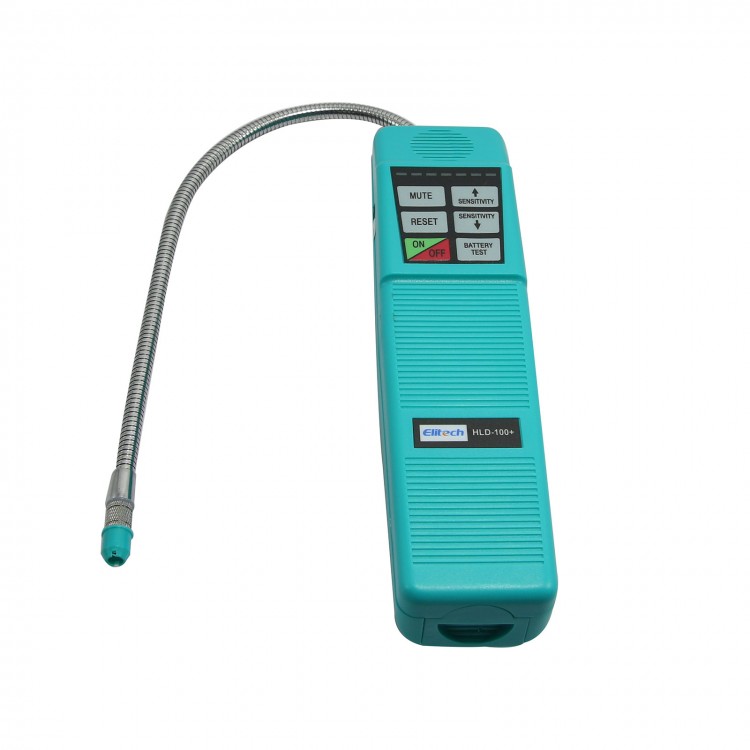

HLD-100+ Freon Halogen Refrigerant Gas Leak Detector Leakage R134 HVAC Sensitivity Tool

- The HLD-100+ is the most reliable negative corona halogen leak detector at present.

- We integrate all our experience and customer’s feedback into this product in hope that it could provide our customer the best price performance and reliability.

- The sensitive elements adopt the advanced and reliable corona refrigerant sensor

- which has great sensitivity and excellent repeatability; The test program

- is controlled by the artificial intelligent microcomputer, with reasonable work procedure, easy and convenient to operate, complete functions and multiple self-adaptive capabilities; Dual-color LED indicator light, with visual and clear display; smart and portable design is convenient for your mobile operation. when there is excessive refrigerant in the leak gas, this unit will automatically audio alarmed to effectively test the refrigerant leak.



Technical features:



- Adopt advanced, low power consumed, eight-bit microprocessor controller

- Dual-color LED indicator light with progressive and real time display

- Sensitivity adjustable, seven level alarming indicated by LED display

- Modular sensor, convenient for maintenance

- Seven levels audible and visual alarm

- Auto reset testing when the detector is turned on

- Battery level indication



Technical parameters:



- Sensor type: negative corona sensor

- Ultimate sensitivity: 3 g/yr

- Warm-Up Time: 3 Application:

- Detect leaks in other systems and filling vessels. It will respond to all halogenated (including Chlorine and Fluorine) refrigerants. This includes, but is not limited to:



CFCs :

 R12, R11, R500, R503etc.



HCFCs :

 R22, R123, R124, R502etc.



HFCs :

 R410a,R134a, R404a, R125 etc.



- Mixtures such as AZ-50.HP62.MP39 etc…

- Detect Ethylene Oxide gas leaks in hospital sterilizing equipment

- Detect SF-6 in high voltage circuit breakers

- Detect most gases that contain chlorine, Fluorine and Bromine (halogen gases)

- Detect cleaning agents used in dry cleaning applications such as perchloroethylene.

- Operating Environment:

- Temperature: 0°C ～50 °C

- Humidity: ＜95% RH (non-condensing)

- Power supply: two 2# Alkaline Batteries

- Sensor tip life under continuous operation: more than 50 hours in normal detecting status

- Specification:230 x 60 x 55 (mm)

- Probe length:36mm
