HLK-RM02 5V 2.4GHz Mini Wireless Router AP Gateway Bridge Ethernet to Wifi Module

HLK-RM02 5V 2.4GHz Mini Wireless Router AP Gateway Bridge Ethernet to Wifi Module

Introduction:
- Support serial to wifi,serial to RJ45,RJ45 to wifi.
- Support TCP/UDP/HTTP/ DHCP
- Support transparent transmission

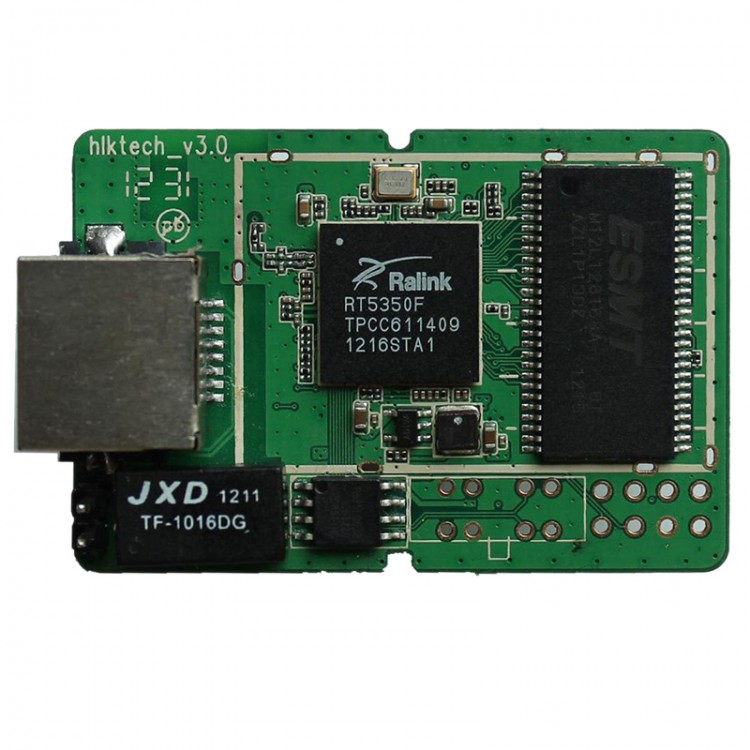

- HLK-RM02 is a Mini wireless router that takes RT5350 as the main chip. 5V power supply, 2.4GHz ISM band, accord with wireless IEEE802.11b/g/n standard protocol. - - This module allows the user to access 802.11b/g/n Wi-Fi Internet and surf the net easily.

Hardware:
- A 10/100Mbps WAN switch port, support Auto-MDI/MDIX,Automatic detection of parallel lines and jumpers,available connection for ADSL / CableModem.
- Have a reset switch (Reset)

Software
- According with 802.11b/g/n wireless transmission standard
- Band rate :2.4GHz (1-13 channels, ISM band)
- Automatically Rate detect
- Meet IEEE802.11n, IEEE802.11g and 802.11b wireless standard specifications
- Board ceramic antenna

Router internal software:
- Support Web Settings
- Universal Plug and Play (UpnP) function, support for online games and online audio and video transmission
- Provide Dynamic DNS (DDNS), support dynamic IP wordpress function
- Supports NAT function, provides a multiplayer online environment
- Supports virtual server
- Support for broadband telecommunications services such as xDSL and Cable
- Support PPPoE timing system Internet
-  Support DHCPServer/Client
- Support a DMZ host functions
- Support IPSec/PPTP/L2TPVPN transparent (Pass-Through) function
- Support applications require multiple connection settings
- System logs

Security Mechanism:
- Support 64/128 (802.11G) bit WEP wireless encryption and dual-mode password :HEX / ASCII
- Support WPA/WPA2(TKIP/AES)
- Provide user-defined access control list (ACL) mechanism, and supports IP address / URL / MAC address / domain name filtering capabilities.
- Support remote management

Front panel indicator significance
- WIFI: The WIFI indicator light was operated by HLK-MP03 , the light flashes green in the normal operation when received wireless transceiver data
- RST button: Press the button for more than 10s, restore the factory settings.

Package included:
- 1 x Wifi Module
