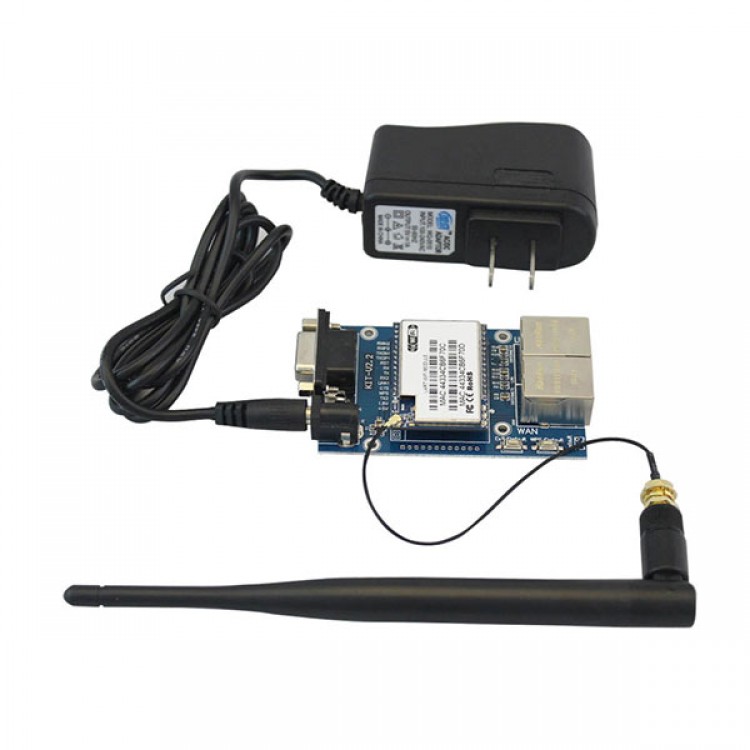

HLK-RM04 Embedded UART-ETH-WIFI wireless Router Development Module + Antenna

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.74
  • Price in reward points: 207 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.33 $19.91 $19.29 $18.46 Contact US
Quantity:

HLK-RM04 Embedded UART-ETH-WIFI wireless Router Development Module + Antenna

Description:
1. Serial to WIFI, Ethernet, Ethernet to Wifi multifunction Wifi module, transparent dual-way data transmission
2. Integrated 10/100M ethernet port, Max.baud ratio up to 230.4kbps
3. Adopts Ralink program, high quality material
4. Reliable system core suit safety and long-run system application
5. Size: 40*29mm
6. Working temperature: industrial class -25~75°C
7. Built-in 360M MIPS CUP, 16M RAM, 4M FLASH, wireless base band, RF front-end and multi peripheral bus
8. Support IEEE 802.11 b/g/n, transparent protocol data transmission mode
9. Support WIFI encryption and algorithm, WEP/WAP-PSK/WAP2-PSK/WAPIï¼?encryption type WEP64/WEP128/TKIP/AES
10. Offter AT+instruction set, offer friendly web configuration page
11. Built-in antenna or external antenna
12. Support AP and Station mode, AP support iphone and android connect with WIFI, support AT, Station online simultaneously
13. TCP server/TCP Client/UDP work mode, support network protocol: TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP
14. Support DHCP auto gain IP, support IP distribution at AP Mode
15. Serial speed ratio adjustable up to 320400


Package included:

 - 1 x  HLK-RM04 Embedded UART-ETH-WIFI wireless Router Development module + Antenna
