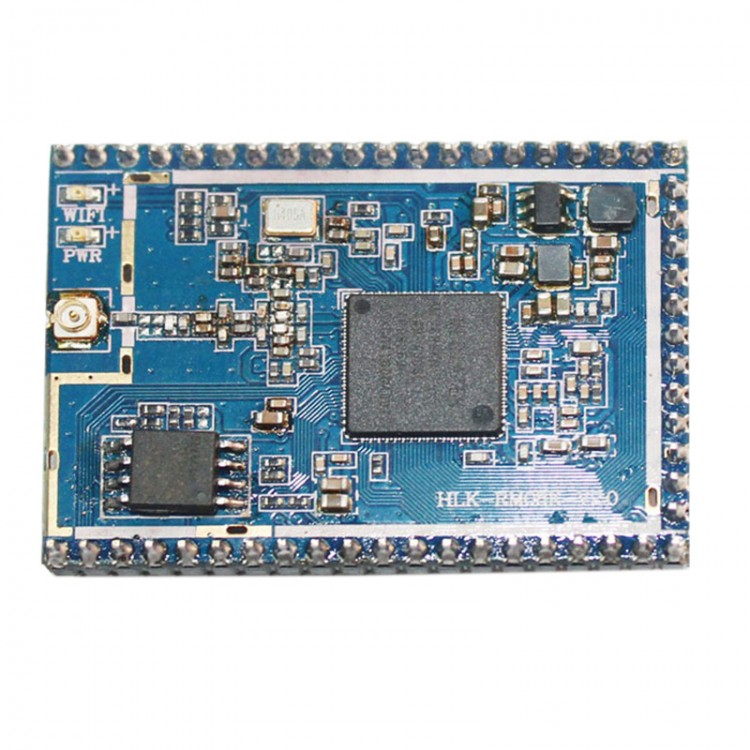

HLK-RM08K Seriel Port to WIFI Module Ethernet Smart Domestic Control Wireless Router Module MT7688K
Description:
- The chip of HLK-RM08K is MT7688K , which can replace HLK-RM04. There are 4 net exports, 2 seriel ports and the power consumption is about 100mA.
- HLK-RM08K is a embedded module of UART-ETH-WIFI (serial-Ethernet-wireless network), which is based on MT7688K, a smart home networking WIFI module.
- This product is a embedded module that based the common serial interface that meets the network standard , built-in TCP/IP protocol stack, the user can achieve serial port, Ethernet, wireless network (WIFI) conversion between the 3 interfaces.
- Through the module, the traditional serial device, in the case of no change to any configuration, you can transfer your data through the Internet network.
| Network standard | Wireless standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Cable standard: IEEE 802.3, IEEE 802.3u | |
| Wireless transmission rate |
11n: Max.150Mbps 11g: Max.54Mbps 11b: Max.11Mbps |
| Channel number | 1-14 |
| Frequency range | 2.4-2.4835G |
| Transmit power | 12-15DBM |

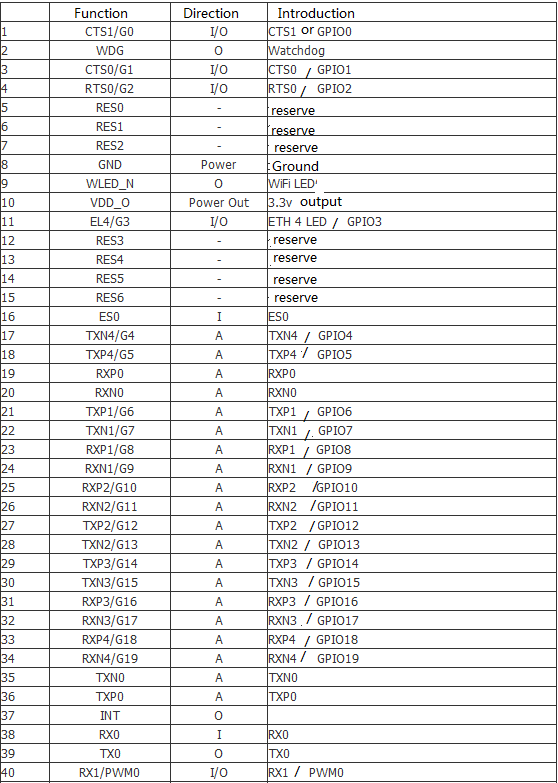

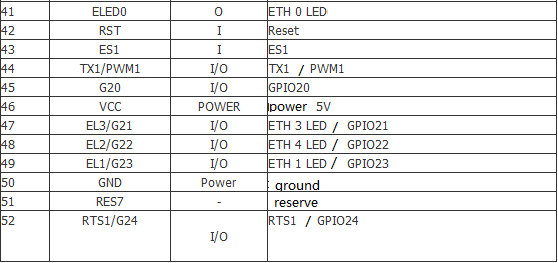

| Interface | 2 Ethernet ports, 2 serial ports, 1 USB port (host/slave), GPIO |
| Antenna | |
| Antenna type | Board antenna / external antenna (optional) |
| Function and parameter | |
| WIFI working mode | Wireless network card / wireless access point / wireless router |
| WDS function | WDS wireless bridge |
| Wireless security | Wireless MAC address filtering |
| Wireless switch security function | |
| 64/128/152 bit WEP encryption | |
| WPA/WPA2, WPA-PSK/WPA2-PSK security mechanism | |
| Network management | Remote Web management |
| Configuration file import and export | |
| WEB software upgrade | |
| Serial communication network | |
| TCP connection | Maximum connection number >20 |
| UDP connection | Maximum connection number >20 |
| Serial baud rate | 1200~2500000bps (1<=n<=65535 2500000/n) |
|
Other parameters |
|
| Indicator Status | Indicator Status |
| Environmental standard | Working temperature: -20-55 |
| Working humidity: 10%-90%RH (not setting) | |
| Storage temperature: -40-80 | |
| Storage humidity: 5%-90%RH (not setting) | |
| Other properties | Band bandwidth (optional): 20MHz, 40MHz, automatic |
Package included:
- 1 x Module
