HLK-SW16 16CH Wifi Relay Module for Wifi Module P2P Mobile Phone Control Switch

HLK-SW16 16CH Wifi Relay Module for Wifi Module P2P Mobile Phone Control Switch

Description:
- 16 channels relay, convenient for secondary development.
- HLK - is SW16 is a professional remote control terminal, an implementation of the TCP through gateway and establish communication with the remote device connected, it can not modify the original, on the basis of communication protocol, the network client and equipment directly connected, save the development cycle, improve the user experience.
- And compared to the traditional router port mapping dynamic domain, has the incomparable superiority, for the user to save the application of dynamic domain name, such as frequent operation, on a router to do port mapping to device to achieve the effect of plug and play.

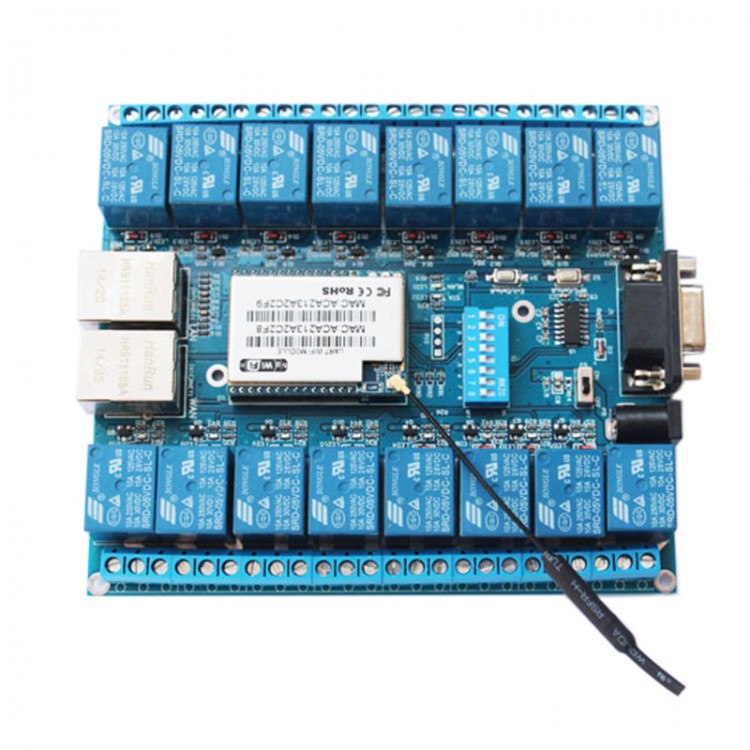

- The suite contains 16 road relay control board, the core module, flexible antenna and power supply
- The default IP: 192.168.16.254, port 8080
- Product size: 115 * 130 * 19 mm

Function:
Through this module can be achieved via the Internet or Intranet router control relay module, so as to realize the remote control of switch power supply centralized management purposes. At the same time support android this module implements a simple switch control.

For example:
Example 1: the network module,the router IP address is: 202.99.166.4, and the router has been done the port mapping, then can be in any place to access the module, which can control the long-distance control relay on the module;

Example 2: the network module in a network segment for 192.168.1. X on wireless router, can use the android smartphones with control software realize the simple control of the switch module;

Product features:
1, Support multiple client connections at the same time, it is the upgraded version;
2, Increase the P2P function, can carry out remote control protocol;
3, High voltage relay PCB isolation trench, increase the electrical isolation;
4, Optical coupling protection circuit, higher reliability;
5, WEB set the network parameters;
6, Span segment access;
7, Perform a specific action.
8, Compatible with the android mobile phone/tablet computer control;
9, Relay work status indication, convenient know each relay working state;
10, Communication protocol and opening, providing convenient test software's source code, the secondary development of the service;

Application:
Suitable for: home, hotel, shopping mall management, Internet cafes, karaoke time, daily office, stores monitoring, networking, industrial control equipment, test equipment, power control, unattended, underground pipes, mining equipment, ships, machine room,
Street lamp management, intelligent management, centralized management.

Product basic parameters:
- Data communication: RJ45 cable communications, wifi communication, TCP/UDP
- Module power consumption: 5V DC 2A Max
- Maximum control: 220 vac 10 A
- Control power: 220 v AC maximum 10A 2000W (linear load)
- Control mode: based on the IP address, network to send TCP packets, a packet of eight bytes, specific content may refer to our general relay board communication protocol.
 Automatically obtain IP address mode, use the Internet search tool can search to a specific IP address.

Shipping list:
- Relay module
- Power supply
- Antenna and its data
