| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $25.35 | $24.84 | $24.06 | $23.02 | Contact US |
LDDH-60A5.5V-MA LED Driver Board High Voltage Low Current Laser Diode Power Constant Current Driving Module
$296.52
LDDH-45A5.5V-MA LED Driver Board High Voltage Low Current Laser Diode Power Constant Current Driving Module
$267.76
LDDH-25A5.5V-MA LED Driver Board High Voltage Low Current Laser Diode Power Constant Current Driving Module
$248.52

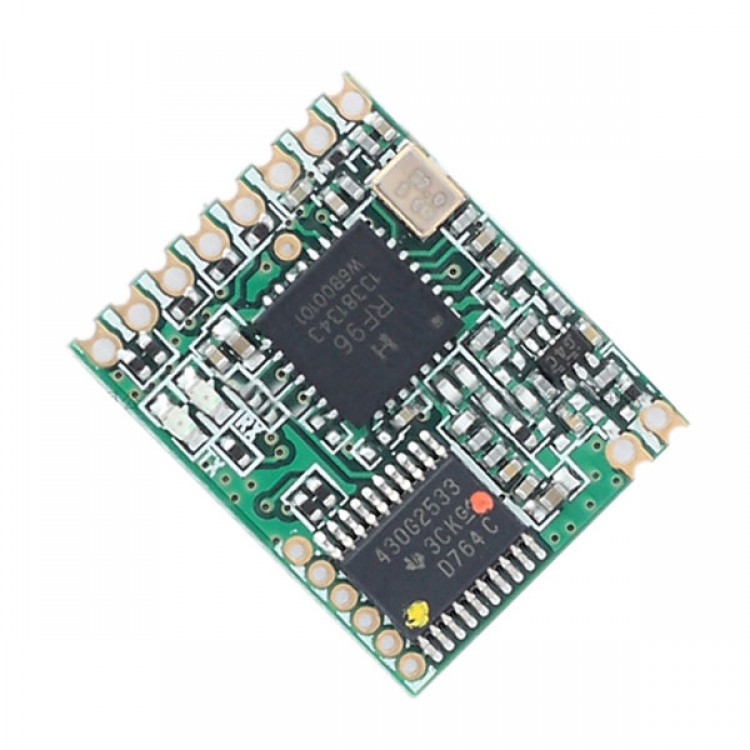

HM-TRLR-S Wireless Module Frequency Hopping Spread Spectrum TTL Serial High-Sensitivity Power 100mW 433M/ 470M/ 868M/915M
Paramters:
- Operating voltage: 2.4 ~ 3.6V
- Current: receiving 16mA, dormant 1uA, launch 120mA @ 20dBm
- Transmit Power: 2 ~ 20dBm (100mW)
- Receiver sensitivity: -139dBm
- Working frequency: 434M / 470M / 868M / 915M
- Channel assignment: Each band 16 selectable channels
- Communication modes: node communications, broadcast communications mode
- Serial rate: 1.2k ~ 115.2kbps
- Interface Standard: standard UART protocol to support 8N1,8E1,801
- Package Size: 16mm * 20mm * 2mm
- Technical Certification: FCC, ETSI, RoHS
Note:
- Four types: 433M:HM-TRLR-S-433, 470M:HM-TRLR-S-470 , 868M: HM-TRLR-S-868 , 915M: HM-TRLR-S-915 to choose from
- Please leave a message of choosing type when you placing an order
