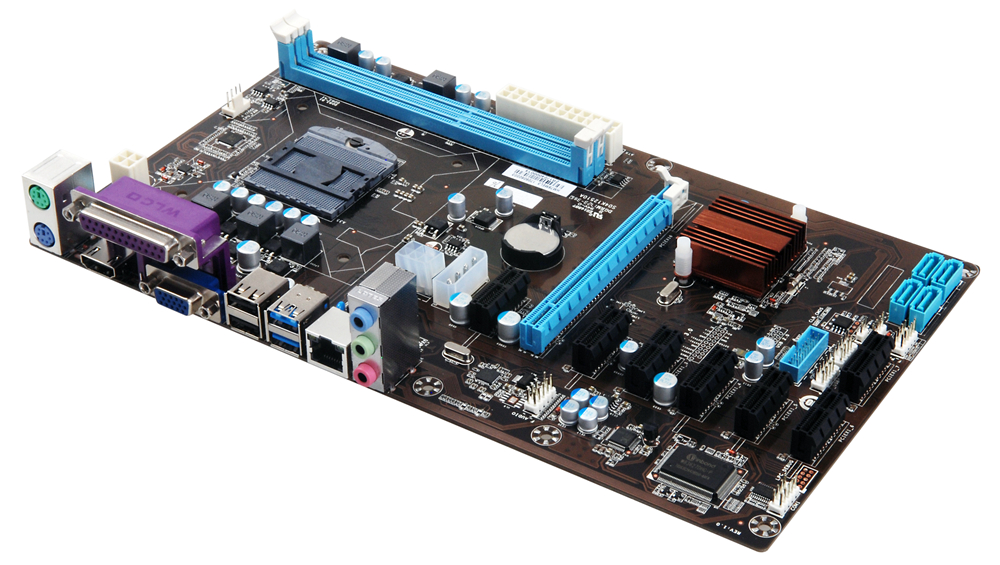

HM65-BTC-P2 Mining Motherboard 8PCIE Onboard CPU For Celeron Fit Eight Graphic Cards Coin Mining
Specifications:
System:
- Processor: Supports for Intel 2nd/3rd generation mobile Core i3/i5/i7/Celeron/Pentium processors in Socket PGA988 package
- Chipset: for Intel HM65/67 chipset
- Memory support: 2pcs DDR3 slots, support a total of up to 16GB. Support DDR3 1600/1333/1066MHz. Dual-channel memory architecture
- Built-in graphics card: 1 VGA port, 1 HDMI port
- USB: 8 x USB 2.0 ports (4 on the back panel, 4 built-in USB 2.0 pins)
- Network: for onboard Realtek RTL8111G Gigabit Ethernet card
- Audio: for onboard Realtek 662 6-channel HD Audio Codec. Provides front audio interface and microphone interface
- SATA: 4 x SATA 2.0 ports
- Slots: 1pcs PCI Express x 16 slot, 7pcs PCI Express x 1 slot

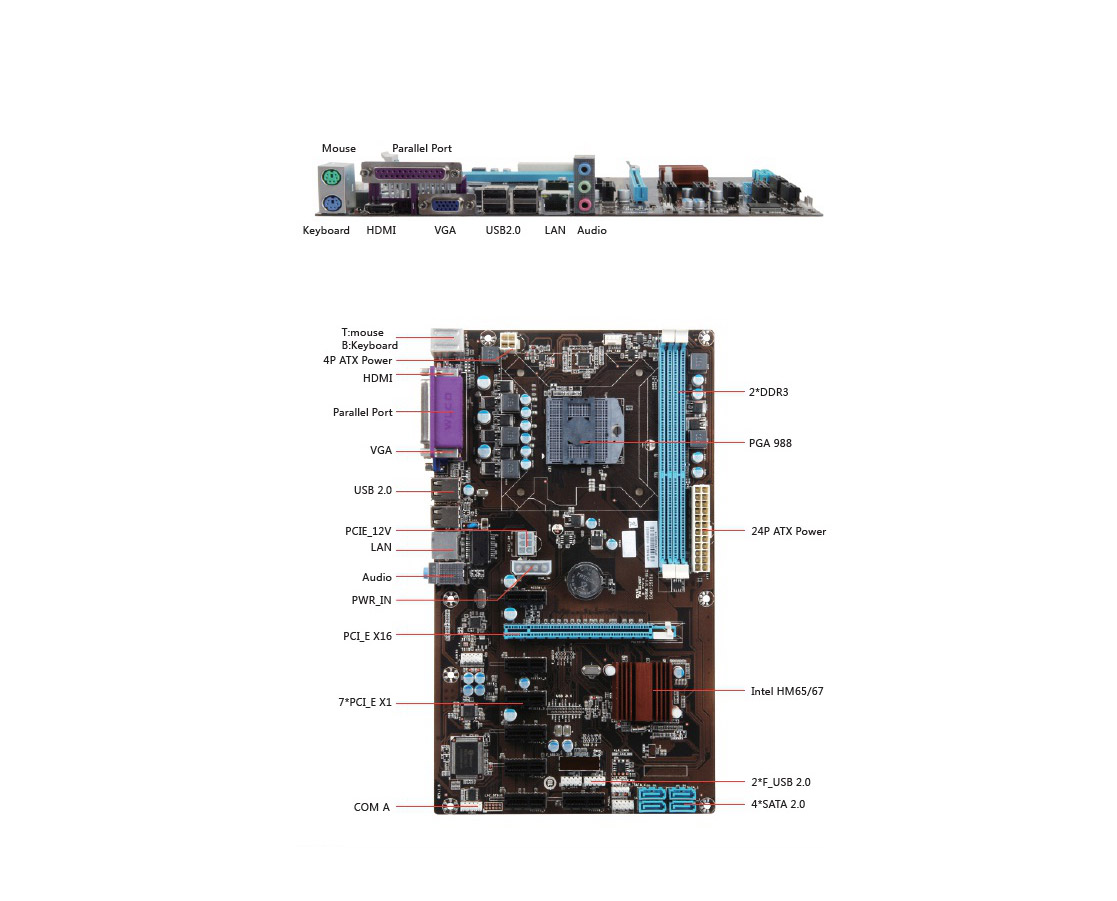

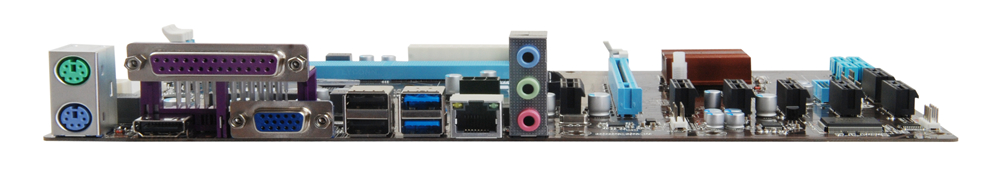

Rear panel:
- 1 x for PS2 keyboard and mouse interface
- 1 x Parallel port
- 1 x VGA port
- 1 x HDMI port
- 2 x USB 3.0 ports
- 2 x USB 2.0 ports
- 1 x LAN port
- 1 x audio input/output/microphone interface
On-board pin header/interface:
- 2 sets of USB 2.0 pins, can be connected with 4pcs external USB 2.0 interface
- 1 set of COM pins
- 1 set of DEBUG pins
- 1 set of front audio pins
- 1 set of front panel switch pins
- 1 set of PWR_IN power socket
- 1 set of PCIE 12V power sockets
- 1 set of 24-pin ATX power socket
- 1 set of 4-pin ATX 12V power socket
- 1 set of CLR_COMS pins, 1 set of SPEAK pins
Motherboard specifications:
- Micro-ATX (29.2cmx17cm), 7 fixing screw holes
Display adapter:
- For Microsoft Basic Display Adapter
- For NVIDIA GeForce GTX1050 Ti
- For Intel (R) HD Graphics
- For NVIDIA P106-100
Package Included:
- 1 x Set of Mining Motherboard
Note:
- Other items pictured are not included, for demonstration purposes only. Thank your for your understanding!
Attention:
- The CPU fan heat sink is LGA775.

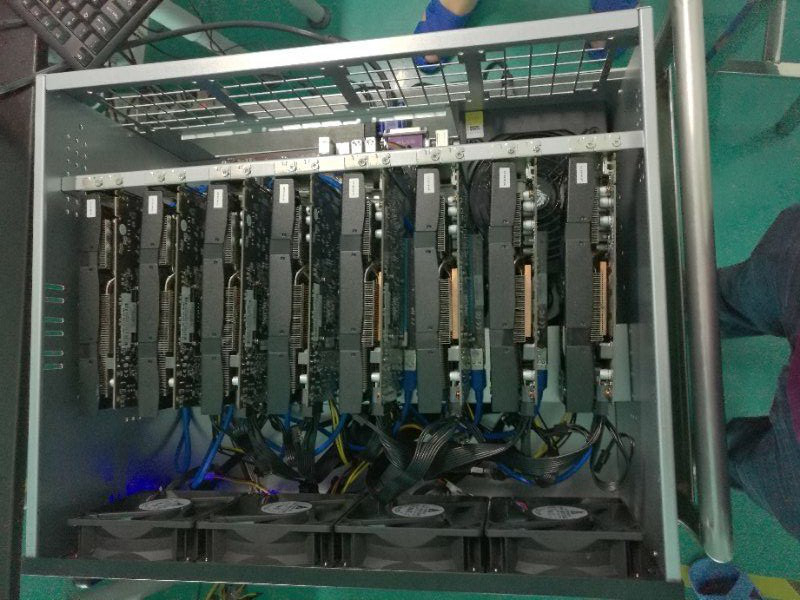

- This motherboard is a mining motherboard that can work 24 hours a day. Therefore, users must ensure that the product has good heat dissipation during use.
- No graphics card compatibility issues have been found so far. If you cannot find eight graphics cards, please check whether your adapter card and graphics card are normal.
Application:
