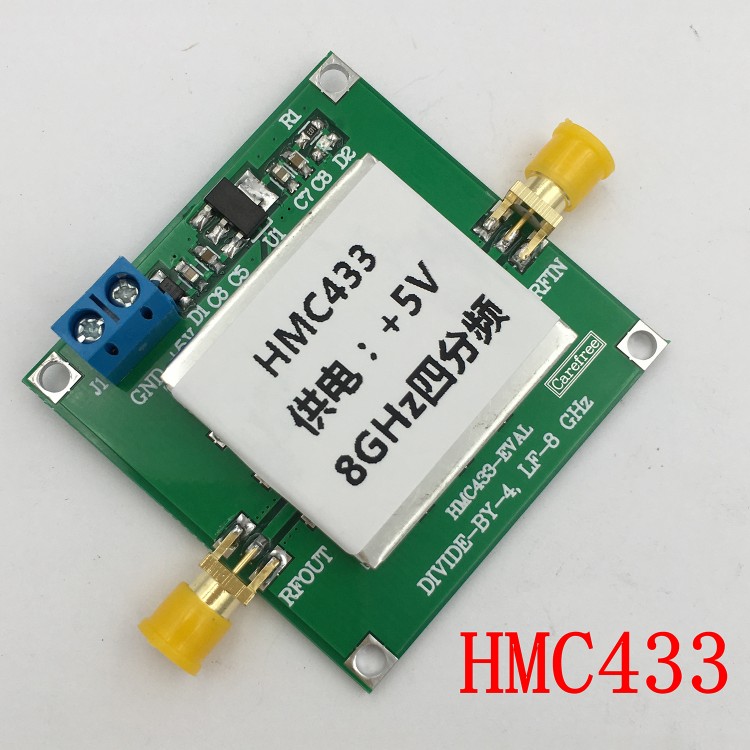

HMC433 8GHZ Frequency Divider 4 Frequency Division Microwave Prescaler -150dBc Low Noise
Description:
-The HMC433 is a low noise, static, divide by 4 prescaler monolithic microwave integrated circuit (MMIC) utilizing indium gallium phosphide/gallium arsenide (InGap/GaAs) heterojunction bipolar transistor (HBT) technology in an ultra-small surface-mount 6-lead SOT26 package.
-The HMC433 operates from DC (with square wave input) to 8GHz input frequency with a single 3V DC supply.
-The HMC433 features single-ended inputs and outputs for reduced component count and cost. The low additive single sideband (SSB) phase noise of -150dBc/Hz at 100KHz offset helps the user maintain optimal system noise performance.
Features:
-Ultra-low SSB phase noise: -150dBc/Hz
-Single-ended input/outputs
-Output power: -2~-3.5dBm
-Single supply operation: 3V @ 53mA
-Ultra small SOT package
Applications:
-DC to C band PLL prescalers
-Very small aperture terminal (VSAT) radios
-Unlicensed national information infrastructure (UNII)
-802.11 HiperLAN wireless local area network
-Fibber optics
-Cellular/3G infrastructure
Package List:
1 x Frequency Divider
