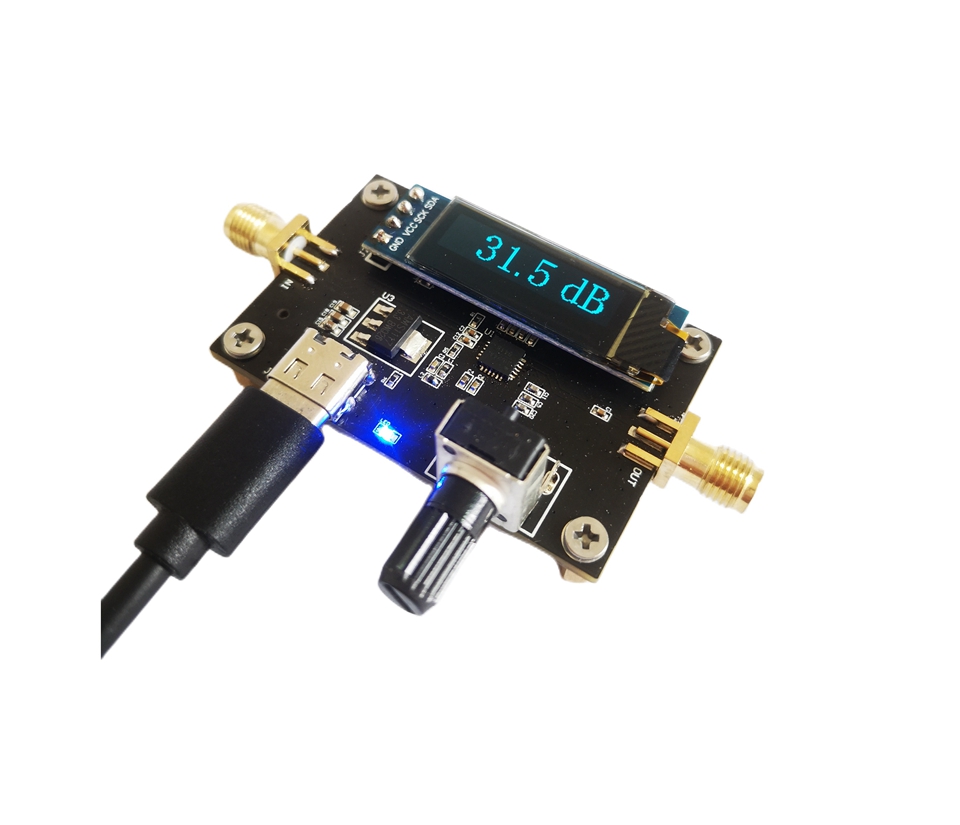

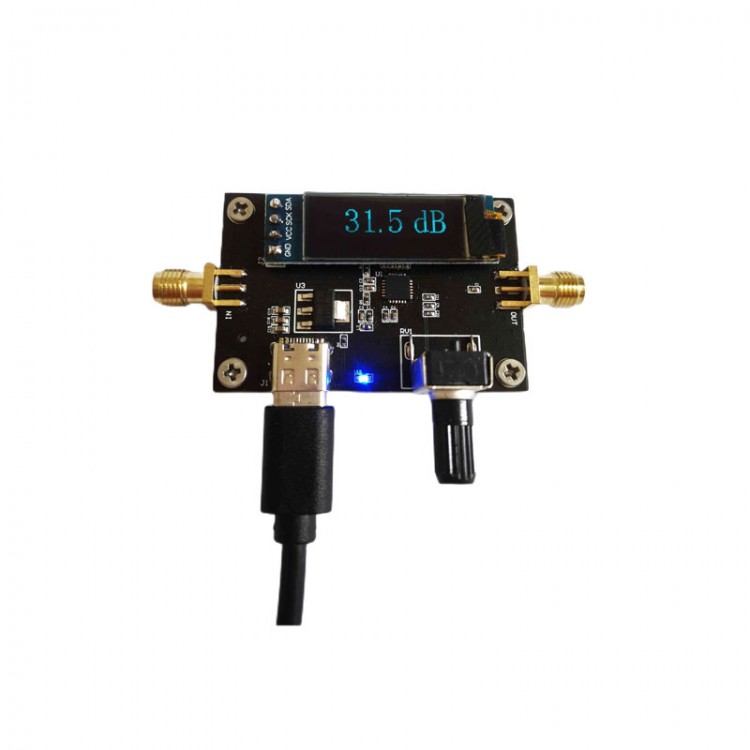

HMC624A DC-6GHz 0.5dB Step Digital RF Signal Attenuator Module 50ohm Type-C with 0.91-inch OLED Screen
Specification:
- Module type: RF signal attenuator
- Module power supply: DC3.6 - 15V
- Power: 0.6W (max)
- Input signal power: 28dBm (max)
- Frequency range: DC-6GHz
- Output impedance: 50ohms
- Interface type: Type-C
- Step gain: 0.5dB
- Attenuation range: 0 - 31.5dB
- Step method: rotate the knob to adjust
- Display: OLED-0.91 inches
- Module features: wide frequency band, mini size, low power consumption, simple operation.
- Application: industrial communication, instrument and equipment, medical device, military radar and science research, etc.
- Working temperature: -85 to 150℃
- Module size: 33 x 50mm
Package Included:
- 1 x RF Attenuator Module
