Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $23.21 | $22.73 | $22.02 | $21.08 | Contact US |

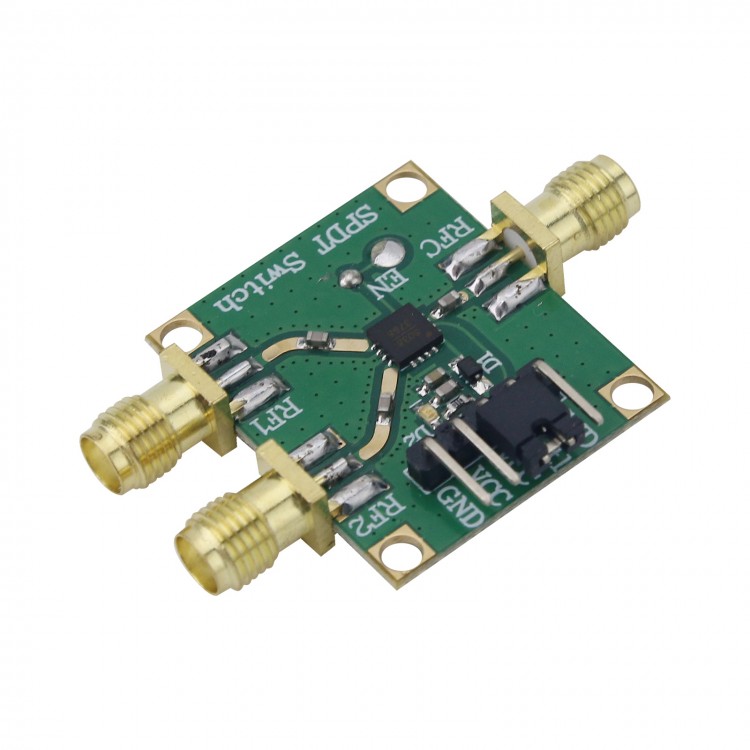

HMC8038 RF Switch Module 6GHz Single Pole Double Throw Module Board with Bandwidth High Separation
Features:
Nonreflective, 50Ω design
High isolation: 60 dB typical
Low insertion loss: 0.8 dB typical
High power handling: 34 dBm through path; 29 dBm terminated path
High linearity: 0.1 dB compression (P0. 1db): 35 dBm typical; Input third-order intercept (IP3): 60 dBm typical
ESD ratings: 4 kV human body model (HBM), Class 3A; 1. 25 kV charged device model (CDM)
single positive supply: 3.3V to 5V; 1. 8V-compatible control
Module size: 2.5 * 3cm (without protruding SMA part)
All off state control
16-lead, 4mm x 4mm LFCSP (16mm²)
Pin compatible with the HMC849ALP4CE
Applications:
Cellular/4G infrastructure
Wireless infrastructure
Automotive telematics
Mobile radios
Test equipment
Package Included:
1 Set Module Board
