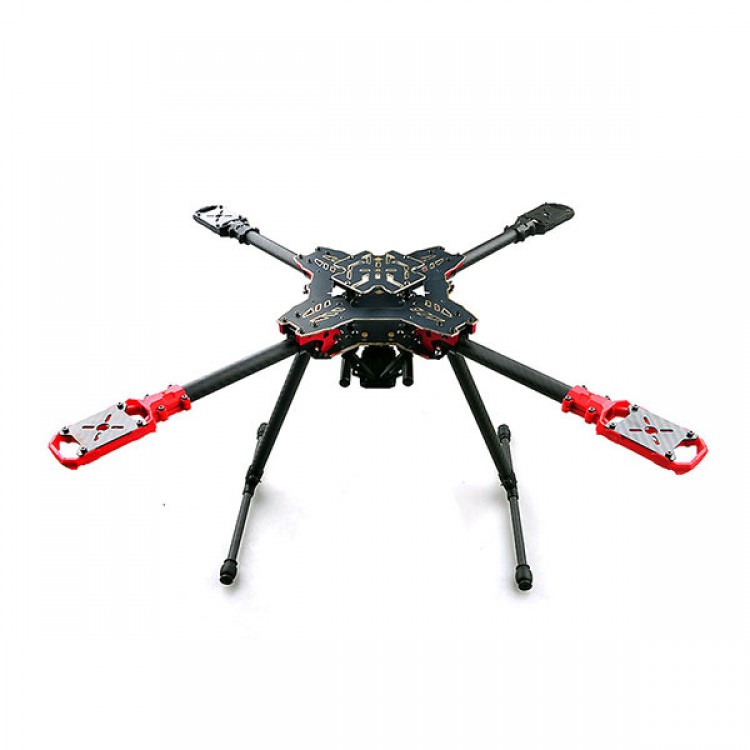

HMF U580 Quadcopter Umbrella Structure Folding Frame w/ High Landing Gear & Gimbal Hanging Rod for FPV Photography
Description:
- Copy the S800 design, the arm is with anhedral
- Unique umbrella shpae folding structure, no diastema for installtion, easy to carry. WIth protection structure, will never get loose
- With gimbal hanging rod, suitable for Gopro gimbal, like XA, Tarot, Happymodel
- PA66+30% glass fiber injection motor mounting base
- The internal space reserves APM damper board installation hole, suitable for open source flight control like APM2.5/2.6/2.8/PIXHAWK , at the same time the large space can be installed commercial flight control like DJI, ZERO, XA
Specs:
- 16mm carbon fiber tube, high strength with welding points PCB center board
- Wheelbase 580mm , weight is about 558g
- Suitable for 2212、2216、3108、3110、3508、3510、4108 motor
- 10-15inch prop is recommended
- Battery from 3S2200\2600\4000\5000 to 4S 2600\4000\5000 can be used
