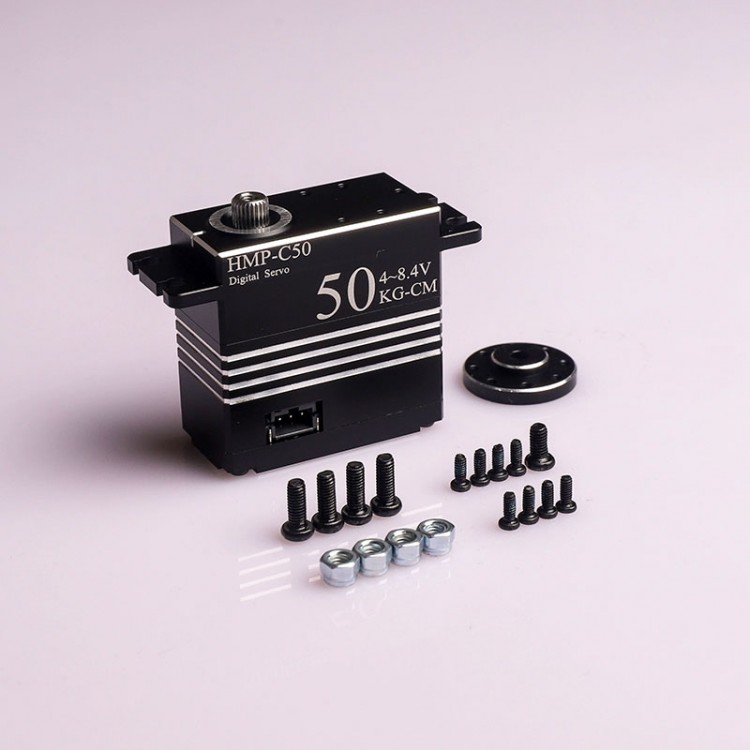

HMP-C50 50KG One Shaft PWM Digital Servo High Torque Servo with Coreless Motor Accessory for Robots

HMP-C50 50KG One Shaft PWM Digital Servo High Torque Servo with Coreless Motor Accessory for Robots

Features:
- Serial bus servo with coreless motor
- Data feedback: timely feedback of the angle, temperature and voltage (optional) of the servo
- Thickened stainless steel gears: 25T thickened all-stainless steel gears are wear-resistant and have a longer life
- Multiple protection: locked-rotor protection and temperature protection
- All-aluminum alloy shell: CNC machined aluminum alloy shell has strong thermal conductivity. All-metal gears greatly improve the performance of the servo. Aviation aluminum alloy raw material is impact resistant, enabling fast heat dissipation
- Serial connection: Theoretically, 253pcs servos can be serialized in single/unified motion. Each servo should be assigned with an ID

Application Scenarios:
- Robots, robotic arms, PTZ, etc.
- RC applications: drones, rock crawlers, short trucks, helicopters and the like
- Medical equipment: surgical instruments, medical testing and so on
- Non-standard automation: production line automation and automation equipment
- Commercial applications: service robots, monitoring equipment, stage lighting, etc.

Product Parameters:
- Weight: 80g
- Size: 40*40*20mm
- Operating voltage: 4-8.4V
- Operating temperature: -20 to 60°C
- No-load speed: 0.17s at 60°
- No-load current: 300mA
- Stall current: 3.5A
- Stall torque: 50KG-cm
- Control signal: UART/TTL
- Standby current: 40mA
- Effective angle: 360°
- Position sensor: Magnetically encoded

Package Included:
- 1 x Set of Digital Servo
