HOBBYEAGLE A3 MINI Standard Version 6 Axis Airplane Gyro Flight Control Accessory for Fixed Wing UAV
Description:
A3 Mini is a high-performance and functional 6-axis mini gyro and stabilizer designed for RC airplanes. The smaller size and more compact design make it more suitable for the small electric airplanes. With the new feature of multi-protocol serial receiver support, it could be compatible with most single line mini receivers on the market.
Features:
- Mini size and 4.8g (0.01lb) weight, PPM and multi-protocol digital serial receivers supported
- 32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware platform and new firmware solution provide more reliable performance

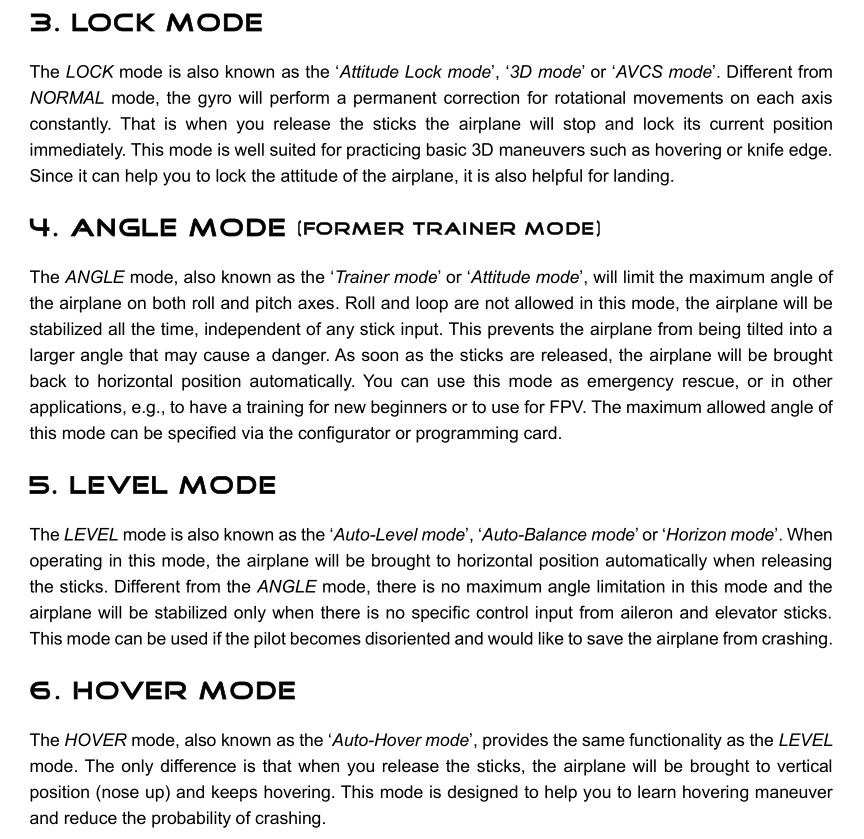

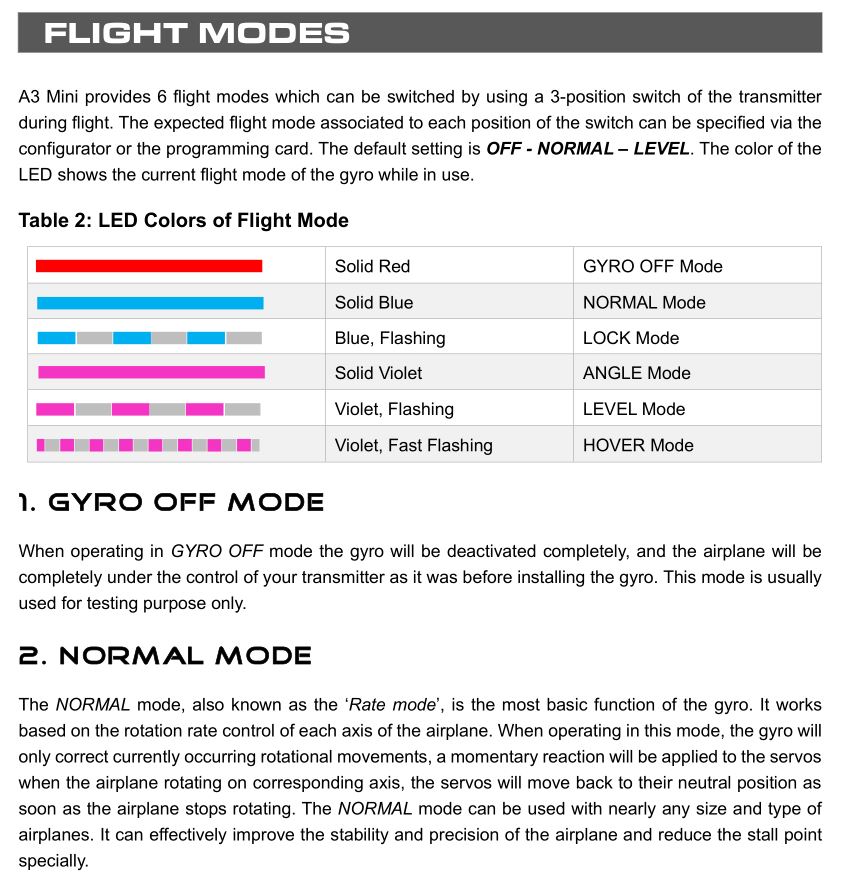

- 6 flight modes, including GYRO-OFF, NORMAL, LOCK, ANGLE, LEVEL and HOVER modes
- Flying-wing (Delta-wing), V-Tail, Remote Master Gain
- Firmware upgradeable and Programming Card supported

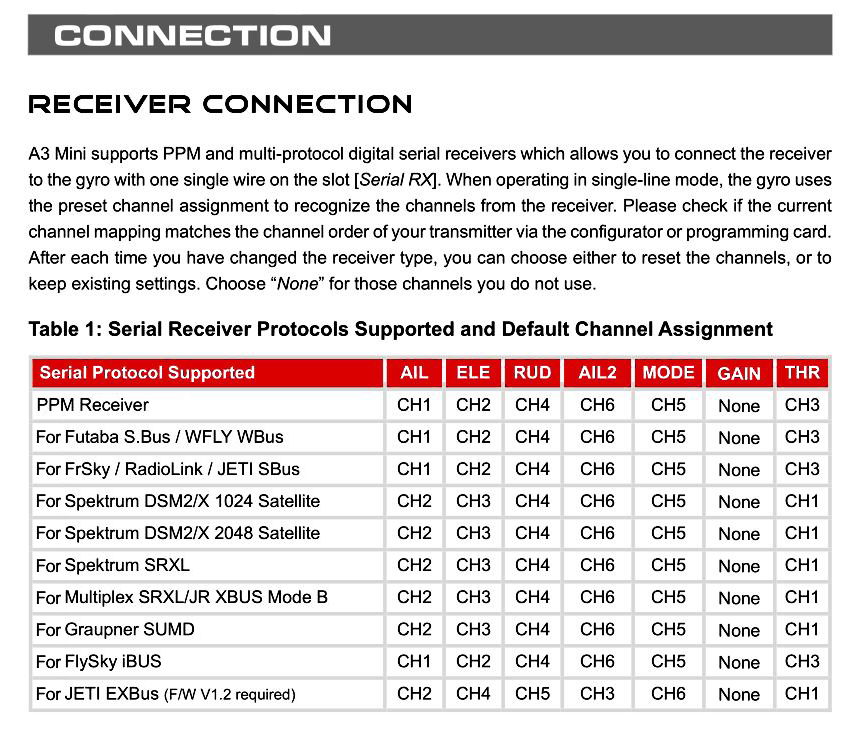

Serial Receiver Protocols Supported:
- PPM Receiver
- For Futaba S.Bus (for FrSky SBus, JETI SBus, RadioLink SBus and WFLY WBus)
- For Spektrum DSM2/X 1024 Satellite (Remote) Receiver
- For Spektrum DSM2/X 2048 Satellite (Remote) Receiver
- For Spektrum SRXL
- For Multiplex SRXL / JR XBUS Mode B
- For Graupner SUMD
- For FlySky iBus
- For JETI EXBus
Technical Parameters:
- Main Controller: 32-bit MCU
- Sensor: High-precision MEMS 6-axis sensor
- Operating Voltage: DC 3.6V-8.4V
- Operating Current: 20mA at 5V
- Size: 30 x 19.5 x 7.5mm/1.2 x 0.8 x 0.3" (LxWxH)
- Weight: 4.8G/0.01LB (excluding wires)
Package Included (Standard Version):
- 1 x Airplane Gyro
- 1 x USB Adapter
- 1 x Data Cable
- 2 x Double-faced Adhesive Tapes
- 2 x Cables
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
