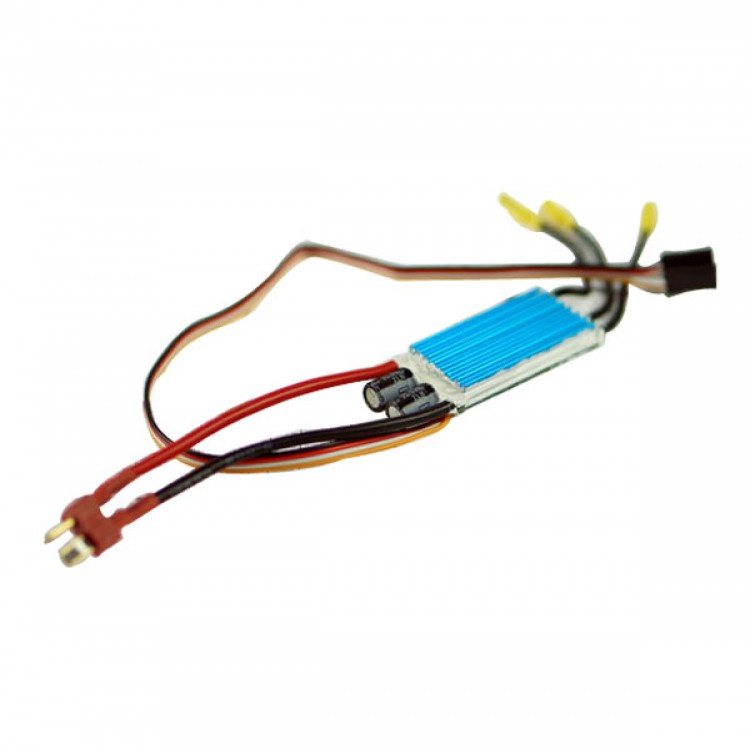

Hobbywing 2-4S 40A Reverse ESC Back Car ESC Waterproof ESC North Star
Specification:
- Output: continuous current 40A, short time current: 55A(no less than 10secs)
- Power output: 2-4 lipo battery group
- BEC output: 5V@3A (built in switch stability mode BEC)
- Throttle signal frequency range: refresh rate: 50-432Hz
- Max rotate speed: 2 pole 210000r/mins, 6 pole motor 70000r/mins, 12 pole motor 35000r/min
- Dimension: 68mm(L)*25mm(W)*12mm(H)
- Weight: 43g(cooling fin included)
Function:
- Safe power on funcion
- Throttle range debugging function
- Lack voltage protection, overvoltage protection, overheat protection, RC signal lost protection
