Hobbywing Ezrun 13.5T/3650KV + eZRun-60A-SL combo for 1/10 or 1/12 Car

This combo  is specially designed for 1/10 and 1/12 scale ON-ROAD  and OFF-ROAD car.

Main applications:
1) R/C enthusiasts to upgrade to brushless and experience incredible power and starting torque, minimal maintenace and longer runtimes;
2)  "RTR" (Ready To Run) applications for manufacturers;
3)  Club race for stock equipments (Same controllers and/or  same motors) ;

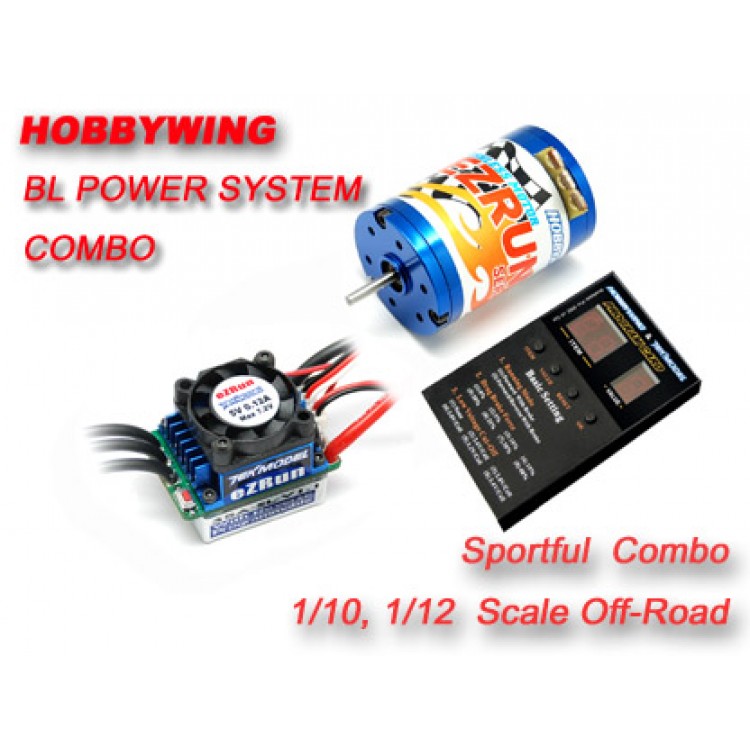

The Combo includes the following items:

       eZRun-60A-SL brushless ESC:  1pcs
       5.5T / 8.5T / 13.5T / 17.5T sensorless brushless motor: 1pcs
       Program card for car ESC: 1pcs
       Cooling fan: 1pcs

 1   Specification of The ESC

1.4 Resistance:  0.0007 Ohm

1.5 Motor Supported:  Sensorless Brushless motor.

1.6 Suitable Brushless Motor:   Note2
        eZRun-60A-SL:   >=5.5T (Size: 3650)

1.7 Suitable Car:  1/10, 1/12 on-road and off-road car for sportful race
1.8 Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
1.9 Weight: 32g(Without wires).



Note1:

Note2: The values of  "T" number is tested under the following conditions:



2  Specification of The Motor



Model	KV	Diameter mm	Length mm (Without Shaft)	Shaft mm	Shaft Length mm	Weight g
5.5T/SL-3650	6000	36.0	50.0	3.17	15	165
8.5T/SL-3650	4000	36.0	50.0	3.17	15	165
13.5T/SL-3650	3300	36.0	50.0	3.17	15	165
17.5T/SL-3650	2400	36.0	50.0	3.17	15	165



3   Features



3.1 Compatible with all sonsorless brushless motor.

3.2 Use top quality electronic components to enhance the current endurance ability of the ESC.

3.3 Excellent start-up, acceleration and linearity features.

3.4 With 2 running modes (Racing mode and Forward/Backward mode).

3.5 With 4 steps of maximum reverse force adjustment.

3.6 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.

3.7 With 4 start modes (Also called "Punch" ) from "Soft" to "Very aggressive".

3.8 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.

3.9 With 8 steps of timing adjustment to get the best compatibility with various of motors.
3.10 Easily program with only one button and compatible with pocket-sized program card.


3.11 Motor uses top quality materials:
        Aluminium shell (case)
        High quality magnets
        Copper wires of high temperature endurance
        Good quality bearings.
3.12  Dustproof design for the motor.

3   Programmable Items





For detail information, please read the user manual for reference.

              a) The input is a 6 cells NiMH battery;

              b) The ESC is equipped with a cooling fan.

 For 4-6 cells NiMH or 2S Lipo: You needn’t change the cooling fan coming with the ESC;

 For 7-9 cells NiMH or 3S Lipo: You must change the fan because it cannot work with such a high voltage, so please choose a high voltage fan or supply the fan from the receiver (+6V);
