| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $90.15 | $88.31 | $85.55 | $81.87 | Contact US |
SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

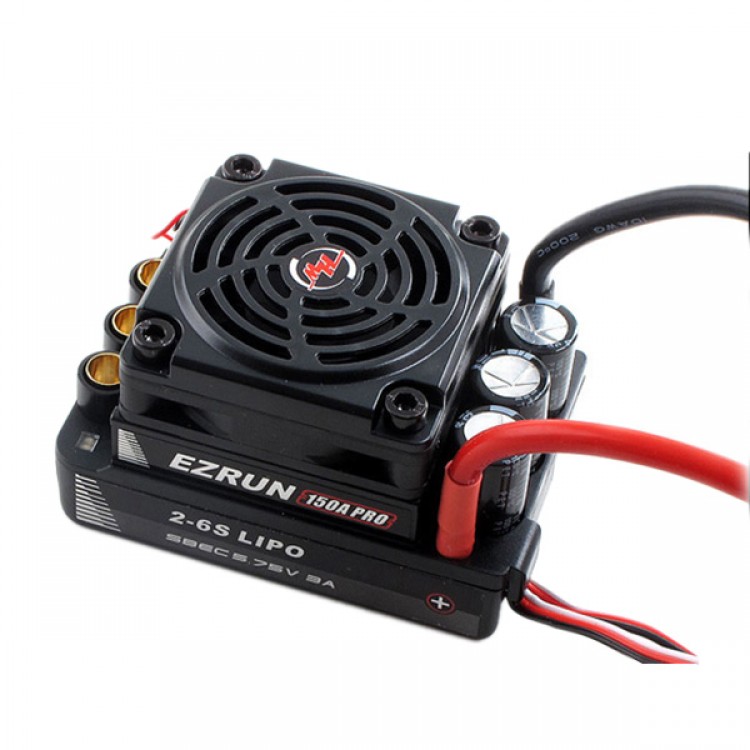

HobbyWing EZRUN-150A-PRO Brushless ESC High Performance for 1/18 Car 150A Burst 1080A
Specification:
- Output: Continuous 150A, burst 1080A.
- Input: 6-18 cells NiMH/NiCd or 2-6S LiPo.
(When using 2S lipo or 6 cells NiMH, an UBEC or seperate battery is strongly recommended to supply the receiver)
- BEC: 5.75V/3A (Switch mode built-in BEC).
- Resistance: 0.0002 Ohm.
- Motor Supported: Sensorless brushless motors.
- Suitable Motor: KV<=2500. * Note #1
- Suitable Car: 1/5 and 1/8 scale on-road or off-road sport.
- Size: 79mm(L) * 52mm(W) * 46.5mm(H).
- Weight: 150g(Without wires)
Note: This listed KV value is available for 4274 sized brushless motor (dia=42, L=74)
Features:
- Compatible with sensorless brushless motors and most of sensored brushless motors (work in sensorless mode).
- Excellent start-up, acceleration and linearity features.
- Built-in switch mode BEC has powerful output to supply all the electronic equipments.
- Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
- Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- Internal timing can be changed easily to make the ESC suitable for various of motors.
- Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
- ESC firmware can be updated through the USB adapter in the LCD Program Box .
