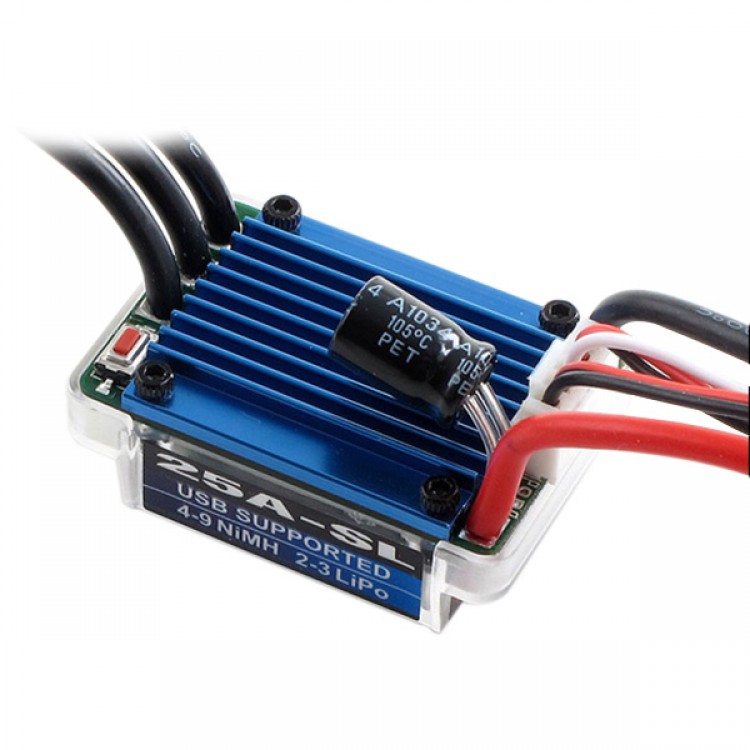

HobbyWing EZRUN-25A-L Brushless ESC High Performance for 1/18 Car 25A Burst 90A

HobbyWing EZRUN-25A-L Brushless ESC High Performance for 1/18 Car 25A Burst 90A

Specification
- Output: Continuous 25A, burst 90A.
- Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.
- BEC: 6V/1.5A (Linear mode built-in BEC).
- Resistance: 0.005 Ohm.
- Motor Supported: Sensorless Brushless Motor.
- Suitable Motor:  * Note #1
        With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road≥12T,  Off-Road≥8T;
        With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road≥18T,  Off-Road≥24T;
- Suitable Car: 1/16 and 1/18 on-road and off-road sport.
- Cooling Fan: Not included.
- Size: 31.5mm(L) * 27.5mm(W) * 16mm(H).
- Weight: 23g(Without wires)

Note: These listed T numbers are available for 2040 sized brushless motor (dia=24, L=40)

Features
- Compatible with sensorless brushless motors.
- High quality components, big current endurance.
- Excellent start-up, acceleration and linearity features.
- Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
- Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- Internal timing can be changed easily to make the ESC suitable for various of motors.
- Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
- ESC firmware can be updated through the USB adapter in the LCD Program Box.
