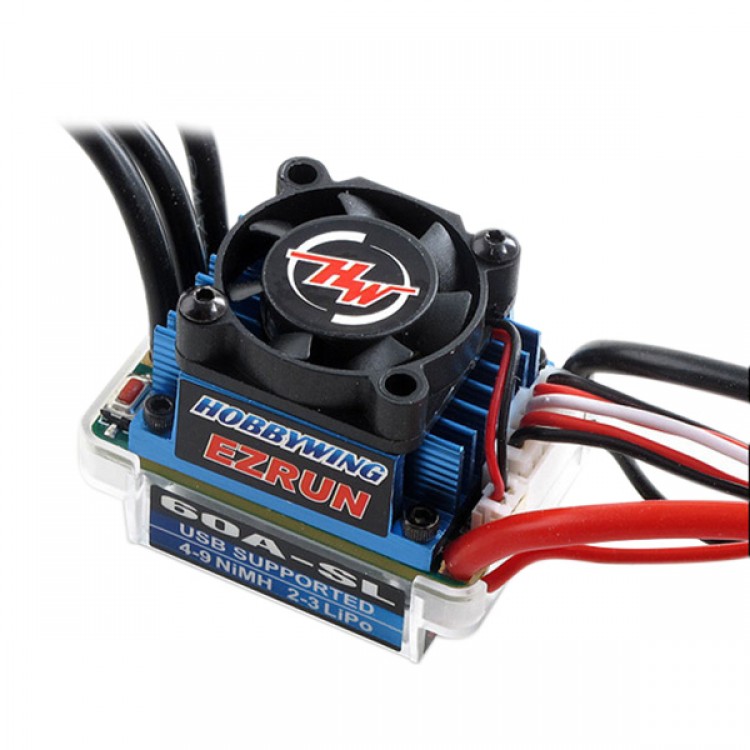

HobbyWing EZRUN-60A Brushless ESC High Performance for 1/18 Car 60A Burst 380A
Specification
- Output: EZRUN-60A: Continuous 60A, burst 380A
- Input: 4-9 cells NiMH/NiCd or 2-3S LiPo
- BEC: 6V/1.5A (Linear mode built-in BEC)
- Resistance: EZRUN-60A: 0.0007 Ohm.
- Motor Supported: Sensorless Brushless Motor.
- Suitable Motor: * Note #1
EZRUN-60A:
With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road≥5.5T, Off-Road≥8.5T
With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road≥8.5T, Off-Road≥13T
- Suitable Car: 1/12 and 1/10 on-road and off-road sport.
- Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
- Weight: EZRUN-60A: 32g (Without wires)
Note: These listed T numbers are available for 3650 sized brushless motor (dia=36, L=50)
Feature:
- Compatible with sensorless brushless motors.
- High quality components, big current endurance.
- Excellent start-up, acceleration and linearity features.
- Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
- Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- Internal timing can be changed easily to make the ESC suitable for various of motors.
- Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
- ESC firmware can be updated through the USB adapter in the LCD Program Box.
