SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

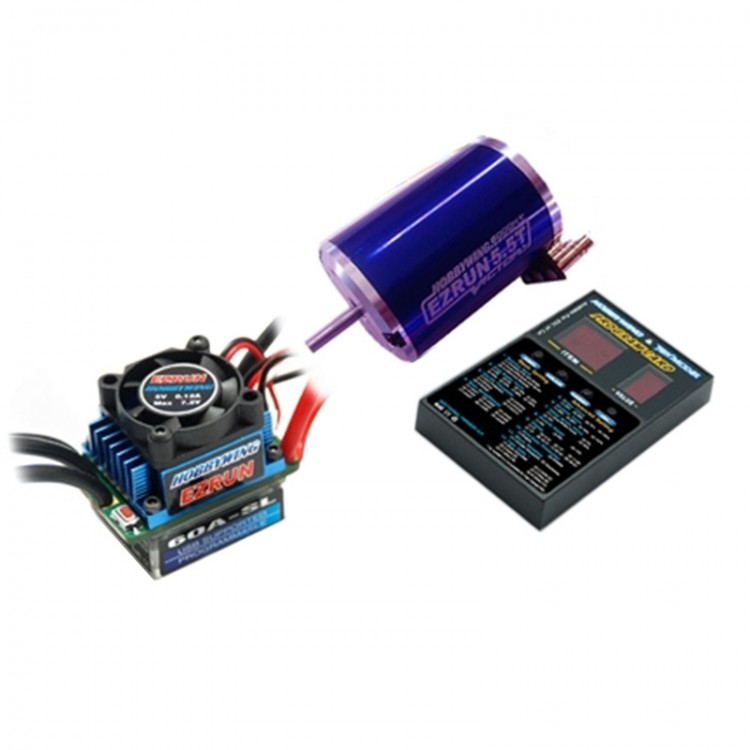

Hobbywing EZRUN 60A ESC+5.5T 6000KV Brushless Motor+LED Program Card for 1/10/1/12 RC Car
Specification for motor:
- Rotational Speed: 6000 KV
- Motor Dimensions (Diameter x Length): 36mm x 52.5mm
- Shaft Dimensions (Diameter x Length): 3.14mm x 14mm
- Input Battery Types: NiCd/ Nimh/ Li-po Battery
- Recommend Model: RC Model Car
Specification for ESC:
- Dimensions: 31.5mm x 27.5mm x 24mm (The height of fan is not included)
- Net Weight: 32g (without wires)
- Continuous Current: 60A
- Burst Current: 380A
- Resistance: 0.0007 ohm
- BEC Output: 6V/1.5A
- Suitable Brushless Motor:
- On-road: =>5.5T, Off-road: =>8.5T (2 cells Lipo / 6 cells NiMH)
- On-road: =>8.5T, Off-road: =>13T (3 cells Lipo / 9 cells NiMH)
- Working Battery Types: 4 - 9 Cells (NiMh) / 2 - 3 Cells (Li-Po)
- Motor Type: Sensorless Brushless Motor
- User Programmable: Available
- Cable Type: 14 AWG (Battery and Motor)
- Cable Length: 100mm (Motor), 150mm (Battery), 220mm (Receiver)
- Recommend Model: RC Model 1/10 Car
Packing includes:
- 1 X 60A-SL brushless ESC
- 1 X 5.5T@6000KV brushless motor
- 1 X Digital LED Program card
