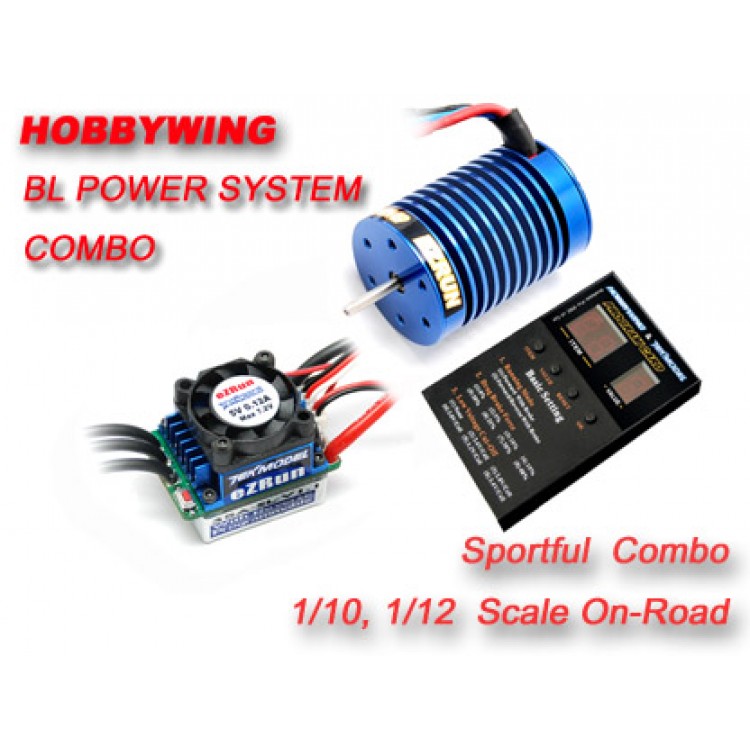

Hobbywing Ezrun 9T/SL-3650M 4300KV motor+eZRun-35A-SL brushless ESC

This combo  is specially designed for 1/10 and 1/12 scale ON-ROAD car.

Main applications:
1) R/C enthusiasts to upgrade to brushless and experience incredible power and starting torque, minimal maintenace and longer runtimes;
2)  "RTR" (Ready To Run) applications for manufacturers;
3)  Club race for stock equipments (Same controllers and/or  same motors) ;

The Combo includes the following items:

       eZRun-25A-SL-H or eZRun-35A-SL brushless ESC:  1pcs
       9T /10T /12T / 13T sensorless brushless motor: 1pcs
       Program card for car ESC: 1pcs
       Cooling fan: 1pcs

 1   Specification of The ESC

        eZRun-35A-SL: Continuous current 35A, burst current 190A.

        eZRun-25A-SL-H: Continuous current 25A, burst current 90A.
1.2 Input: 4-9 cells NiMH/NiCd or 2-3 cells LiPo.   Note1

        eZRun-35A-SL: 0.0015 Ohm.

        eZRun-25A-SL-H: 0.005 Ohm.

1.6 Suitable Brushless Motor:   Note2
        eZRun-35A-SL:   >=9T (Size: 3650-M)

1.7 Suitable Car:

        eZRun-35A-SL:  1/10, 1/12 on-road car for sportful race.
1.8 Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
1.9 Weight: 30g(Without wires).



Note1:

Note2: The values of  "T" number is tested under the following conditions:



2  Specification of The Motor    (Please see the hyper-link:  eZRun 3650-M sized motor)



Model	KV	Diameter mm	Length mm (Without Shaft)	Shaft mm	Shaft Length mm	Weight g
9T/SL-3650M	4300	35.8	50.0	3.17	15	165
10T/SL-3650M	3900	35.8	50.0	3.17	15	165
12T/SL-3650M	3300	35.8	50.0	3.17	15	165
13T/SL-3650M	3000	35.8	50.0	3.17	15	165



3   Features



3.1 Compatible with all sonsorless brushless motor.

3.2 Use top quality electronic components to enhance the current endurance ability of the ESC.

3.3 Excellent start-up, acceleration and linearity features.

3.4 With 2 running modes (Racing mode and Forward/Backward mode).

3.5 With 4 steps of maximum reverse force adjustment.

3.6 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.

3.7 With 4 start modes (Also called "Punch" ) from "Soft" to "Very aggressive".

3.8 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.

3.9 With 8 steps of timing adjustment to get the best compatibility with various of motors.
3.10 Easily program with only one button and compatible with pocket-sized program card.

3.11 Motor uses top quality materials:
        Aluminium shell (case)
        High quality magnets
        Copper wires of high temperature endurance
        Good quality bearings.
3.12  Dustproof design for the motor.

3   Programmable Items   (Click the following picture to enlarge it)







              a) The input is a 6 cells NiMH battery;

              b) The ESC is equipped with a cooling fan.

 For 4-6 cells NiMH or 2S Lipo: You needn't change the cooling fan coming with the ESC;

 For 7-9 cells NiMH or 3S Lipo: You must change the fan because it cannot work with such a high voltage, so please choose a high voltage fan or supply the fan from the receiver (+6V);

        eZRun-25A-SL-H: 1/12 on-road cars for sportful race.

        eZRun-25A-SL-H:   >=12T (Size: 3650-M)
