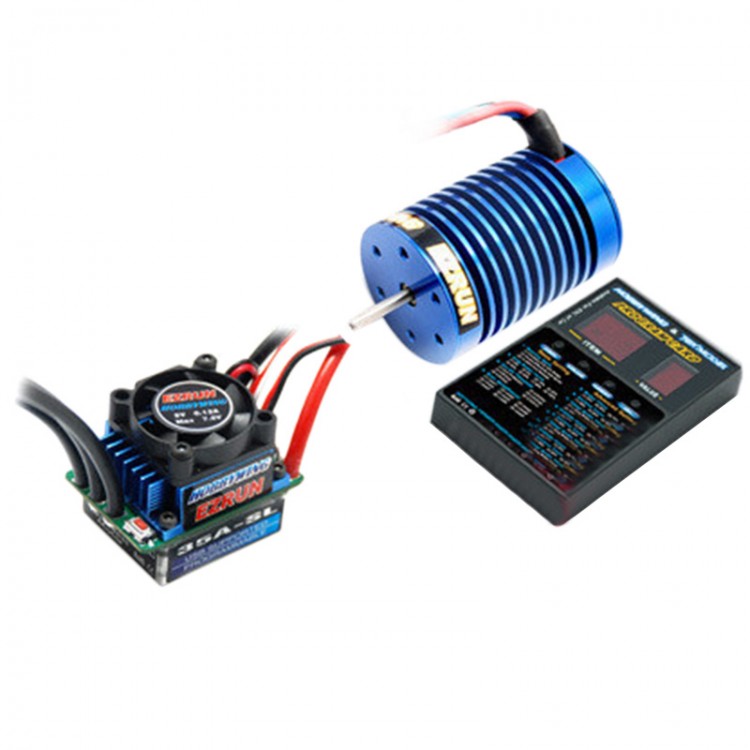

Hobbywing EZRUN Brushless 35A ESC+9T 4300KV Motor+LED Program Card Combo B2 for 1/12 1/10 RC Car
Motor:
1. Diameter (mm): 35.8
2. Length (mm): 50 (Without Shaft)
3. Shaft Length (mm) 15
4. Weight (g): 165
ESC Specification:
1. Output: Continuous current 35A, burst current 190A.
2. Input: 4-9 cells NiMh/NiCd or 2-3 cells LiPo. Note1
3. BEC Output: 6V/1.5A.
4. Resistance: 0.0015 Ohm.
5. Motor Supported: Sensorless Brushless Motor
6. Suitable Brushless Motor: 9T and > 9T
7. Suitable Car: 1/10, 1/12 on-road or off-road cars / trucks for normal race or sportful race.
8. Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
9. Weight: 30g(Without wires)
Features:
- Compatible with all sonsorless brushless motor.
- Use top quality electronic components to enhance the current endurance ability of the ESC.
- Excellent start-up, acceleration and linearity features.
- With 3 running modes: Racing mode (Forward), Forward/Backward mode and Rock Crawler mode.
- With 4 steps of maximum reverse force adjustment.
- Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
- With 9 start modes (Also called "Punch" ) from "Soft" to "Very aggressive" to suitable for different tracks.
- Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
- With 8 steps of timing adjustment to get the best compatibility with various of motors.
- Easily program with only one button and compatible with pocket-sized program card.
- The ESC is USB supported. The firmware of the ESC can be updated through an USB adapter on the Advanced LCD Program Box (Optional device).
- Top quality motor:
- Aluminium shell (case)
- High quality magnets
- Copper wires of high temperature endurance
- Good quality bearings
Packet content:
- HOBBYWING eZRun 9T/3650-M 4300Kv Sensorless Brushless Motor x1
- 35A-SL ESC x1
- LED Card x 1
