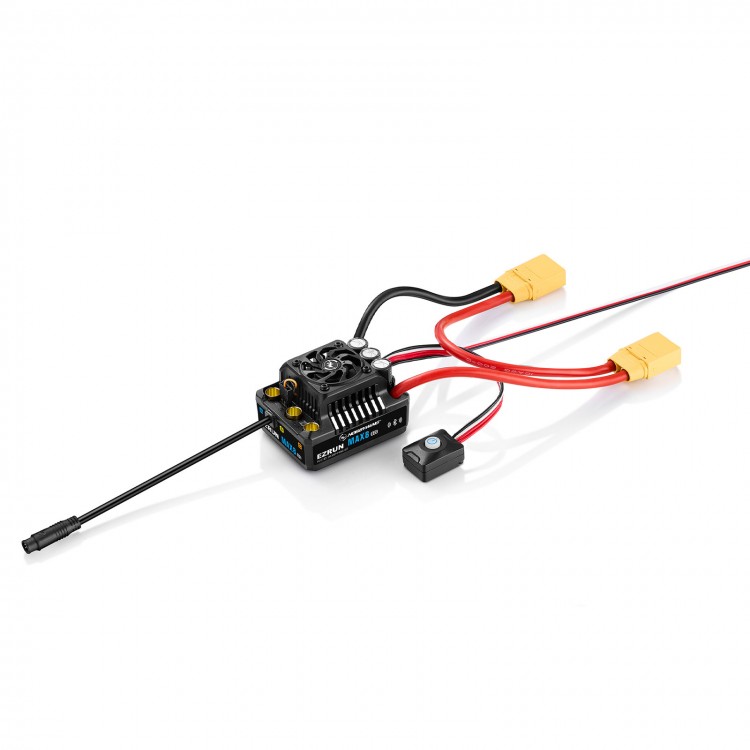

Hobbywing EzRun MAX8 G2S Inductive Brushless ESC Waterproof 160A 3-6S Lipo for RC Drones with Cooling Fan
Specification:
- Product name: EzRun MAX8 G2S
- Scale: 1/8th
- Brushed/brushless: brushless
- Sensored/sensorless: sensored
- Waterproof: yes
- Constant/peak current: 160A/1050A
- Input voltage: 3 - 6S Lipo
- BEC output: 6V/7.4V/8.4V adjustable, continuous current 6A (switch-mode)
- Input wires: black-10AWG-150mm*1, red-10AWG-150mm*1
- Output wires: no
- Input connectors: XT90
- Output connectors: 6.5 bullet connectors (female)
- Firmware upgrade: supported
- Size: 60 x 48 x 40.5mm
- Net weight: 192g (including the cable weight)
ESC Programming Method:
- SET button on ESC: not supported
- LED program box: not supported
- LCD G2 setting box: not supported
- LCD PRO: not supported
- OTA programmer: not supported
- Programming interface: built-in Bluetooth
Fan:
- Size: 30 x 30 x 10mm
- Voltage range: 6V/7.4V/8.4V
- Powered by: BEC
Data Recording:
- Extreme value: supported
- Real-time data: supported
- Historical data (graph): supported
Applications:
- Motors: sensored brushless motors / sensorless brushless motors
- Vehicles: 1/8th On-road, Short course truck, Monster truck
- KV rating/T count:
With 4S Lipo: KV≤3000
With 6S Lipo: KV≤2400 4278 size motor
Package Included:
- 1 x ESC
Note:
- Battery is not included.
