Hobbywing EzRun Max8 V3 150A Brushless ESC TRX Plug with Motor 4274 2200KV Program Card for RC Car

Hobbywing EzRun Max8 V3 150A Brushless ESC TRX Plug with Motor 4274 2200KV Program Card for RC Car

Features:
-  ESC is compatible with sensorless brushless motors and sensor ed brushless motors (only in sensorless mode).

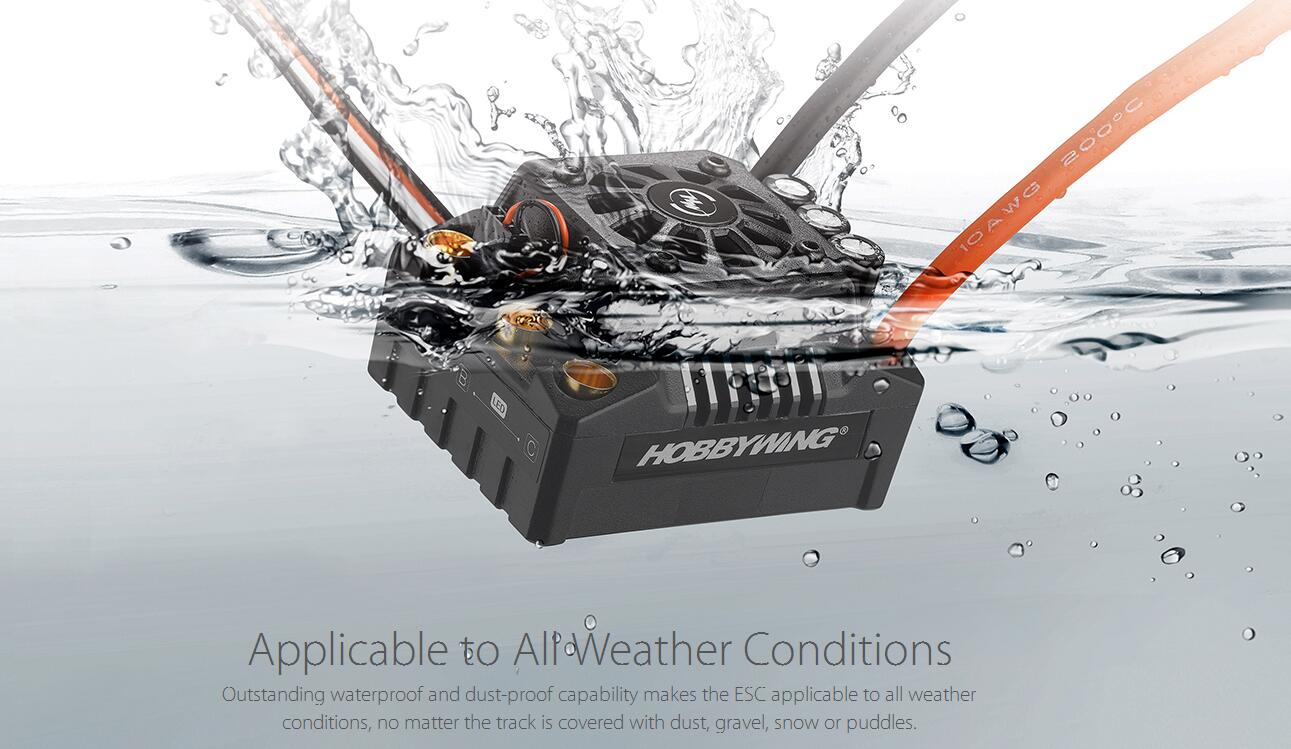

-  Fully waterproof design for all weather conditions.

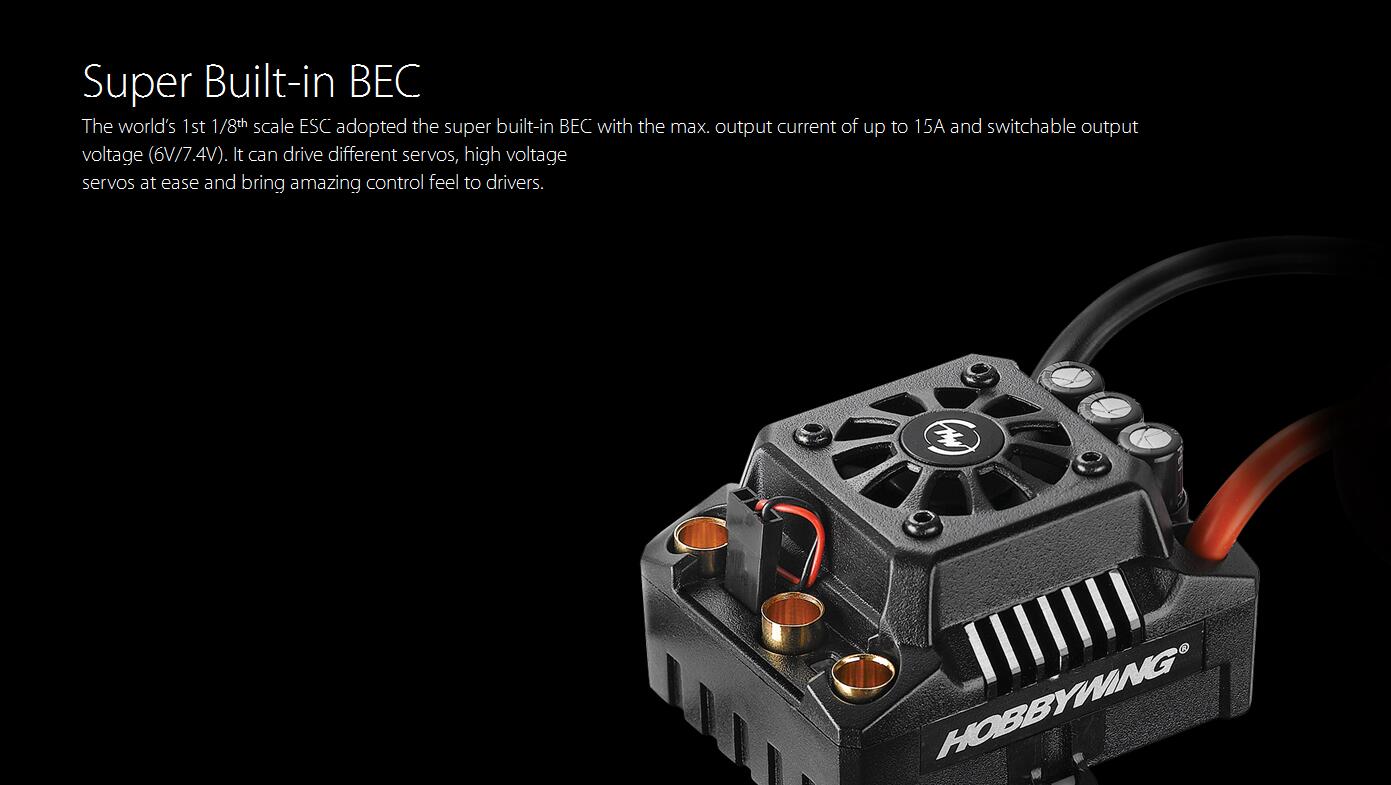

- Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a co nt ./peak current of 6A/15A for easily driving big tor que servos and high voltage servos.

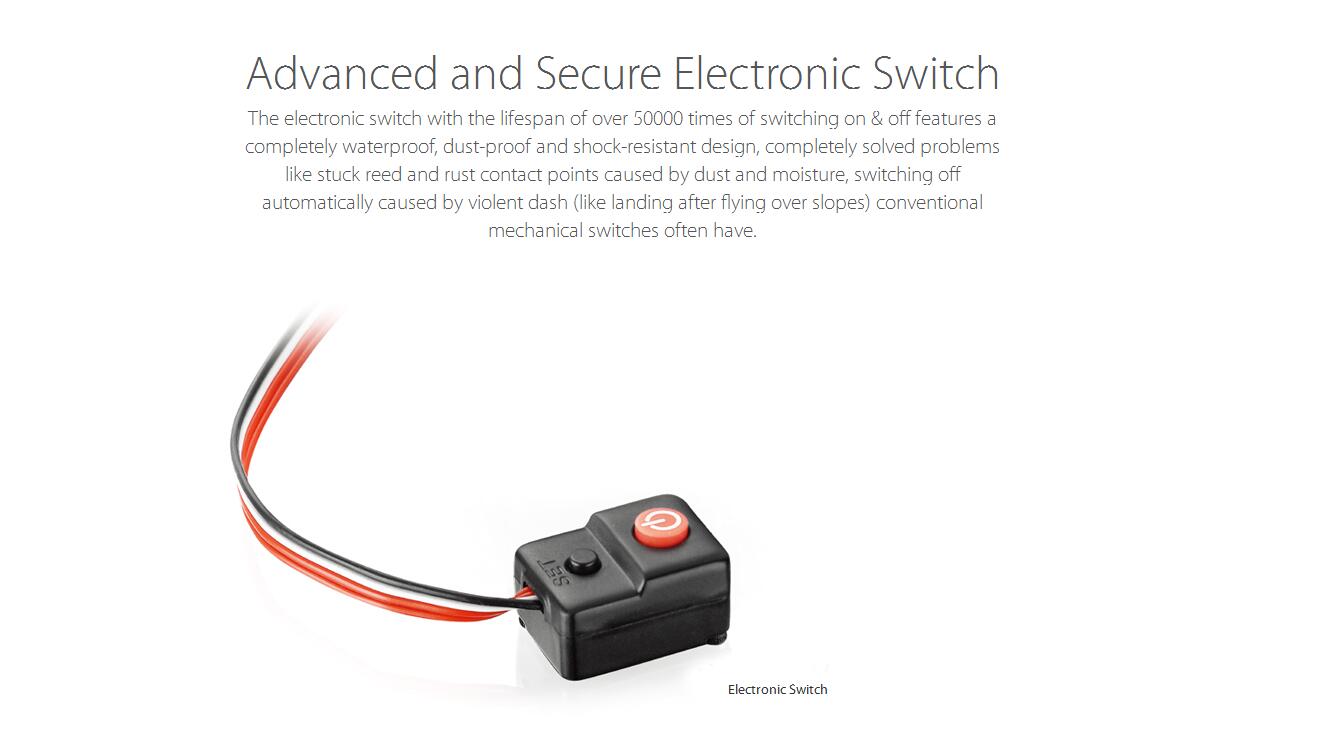

- Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
- Separate programming port to easily connect the LED pr ogram card or the LCD pr ogram box to the ESC.
- Proportional brake with 9 levels of maximum brake for ce and 9 levels of drag brake for ce.
- 5 levels of acceleration/punch fr om soft to aggressive for different vehicles, tires and tracks.
- Capacitor Protection：Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
-  Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (thr ottle signal loss protection).
- Advanced programming via portable LED pr ogram card or multifunction LCD pr ogram box.

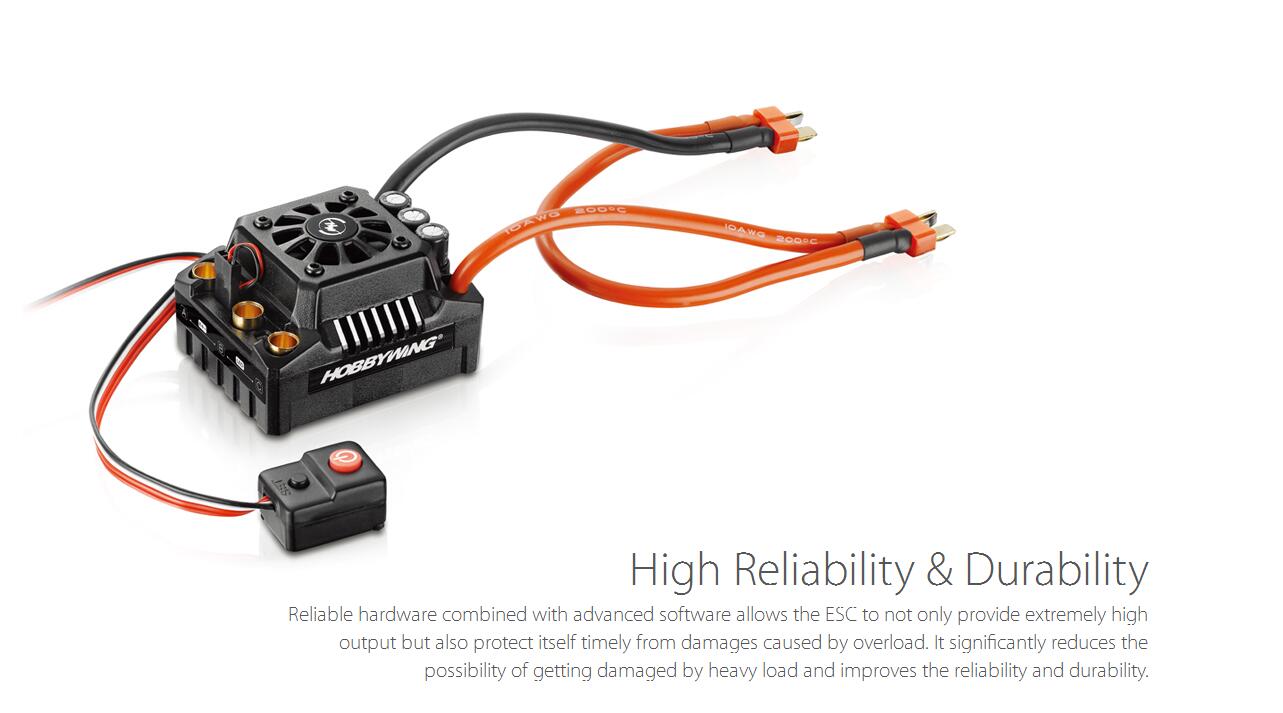

Hobbywing Ezrun MAX8 V3 150A ESC :
- Scale: 1/8th
- Brushless & Sensorless
- Waterproof
- Size: 59.8x48.0x36.8mm
- Weight: 174g
- Cont./Peak Current: 150A/950A
- Input: 3-6S LiPo/9-18 Cells NiMH
- BEC Output:Switch Mode:6V/7.4V, 6A
- Input Wires: Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
- Output Wires: Black-10AWG-200mm*3

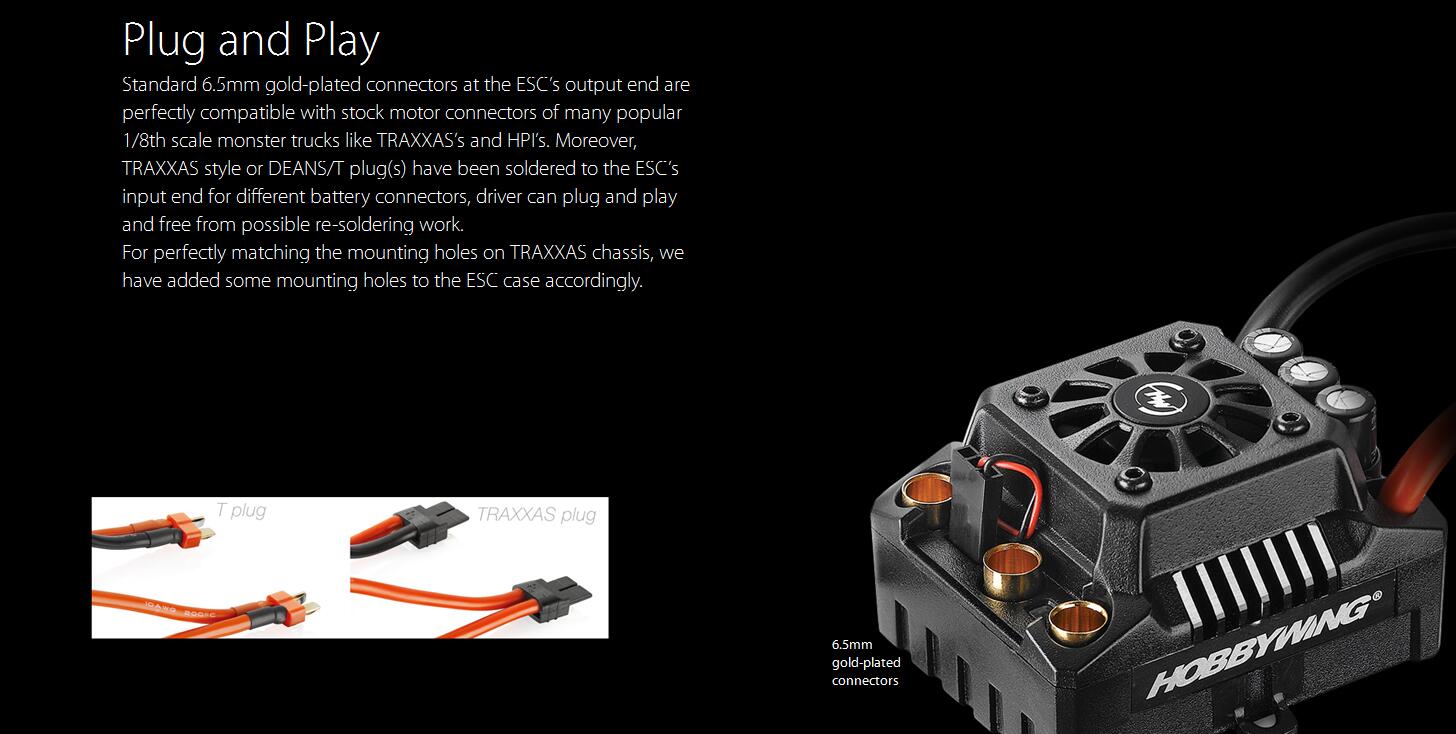

- Input Connectors: T Plug
- Output Connectors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
- (Note: All the wire length above is the original length not the length you see from the outside.)

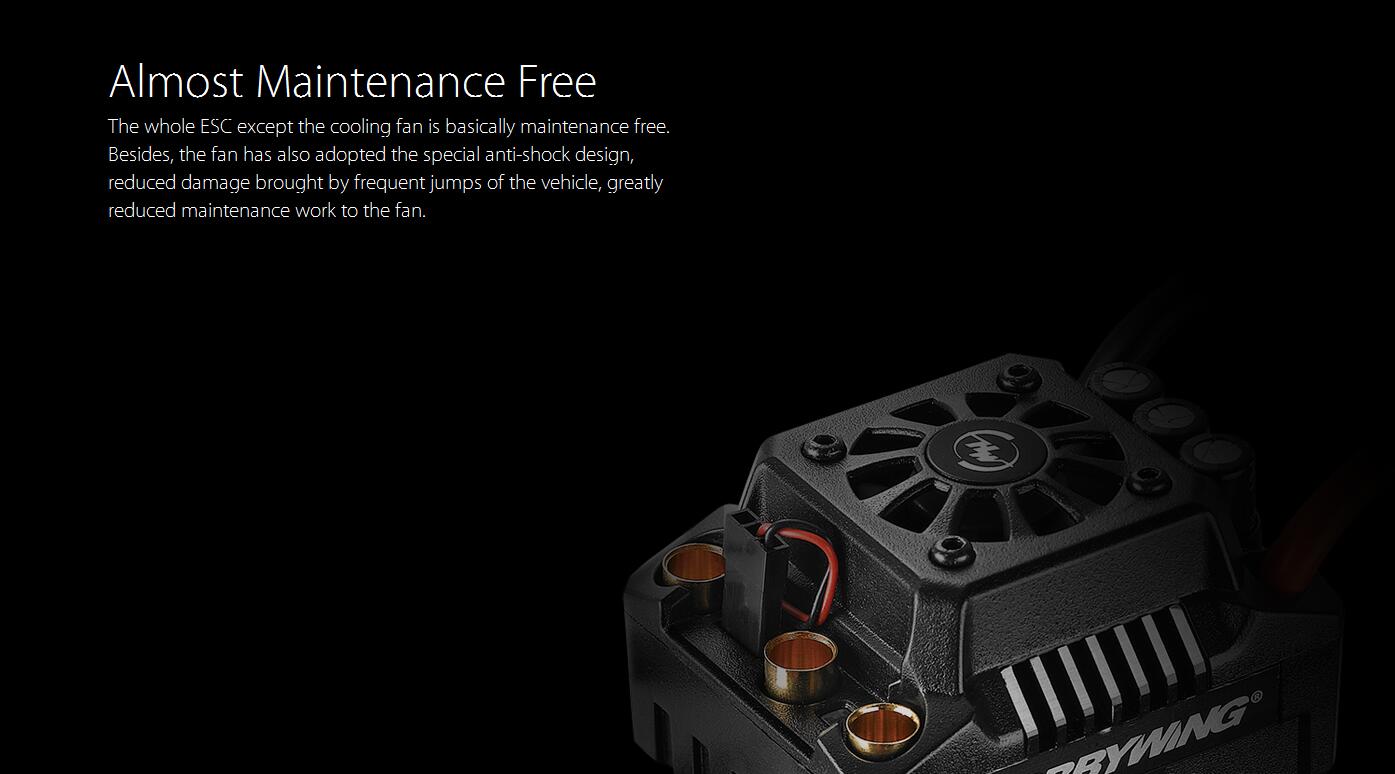

- Fan Size: 30.0x30.0x10.0mm
- Fan Voltage Range: 5-7.4V
- Fan Powered by: Powered by BEC
- Firmware Upgrade: Supported
- Applications Motors: SL BL Motors/SD BL Motors(only in SL mode);
- Applications Vehicles: 1/8th Touring Car/Buggy/Truck;
- KV Rating/T Count: 4S LiPo:KV≤3000;/6S LiPo:KV≤2400(40XX Series of Motors)
- ESC Programing Supported: SET Button on ESC, LED Program Box, LCD Program Box, WiFi Module

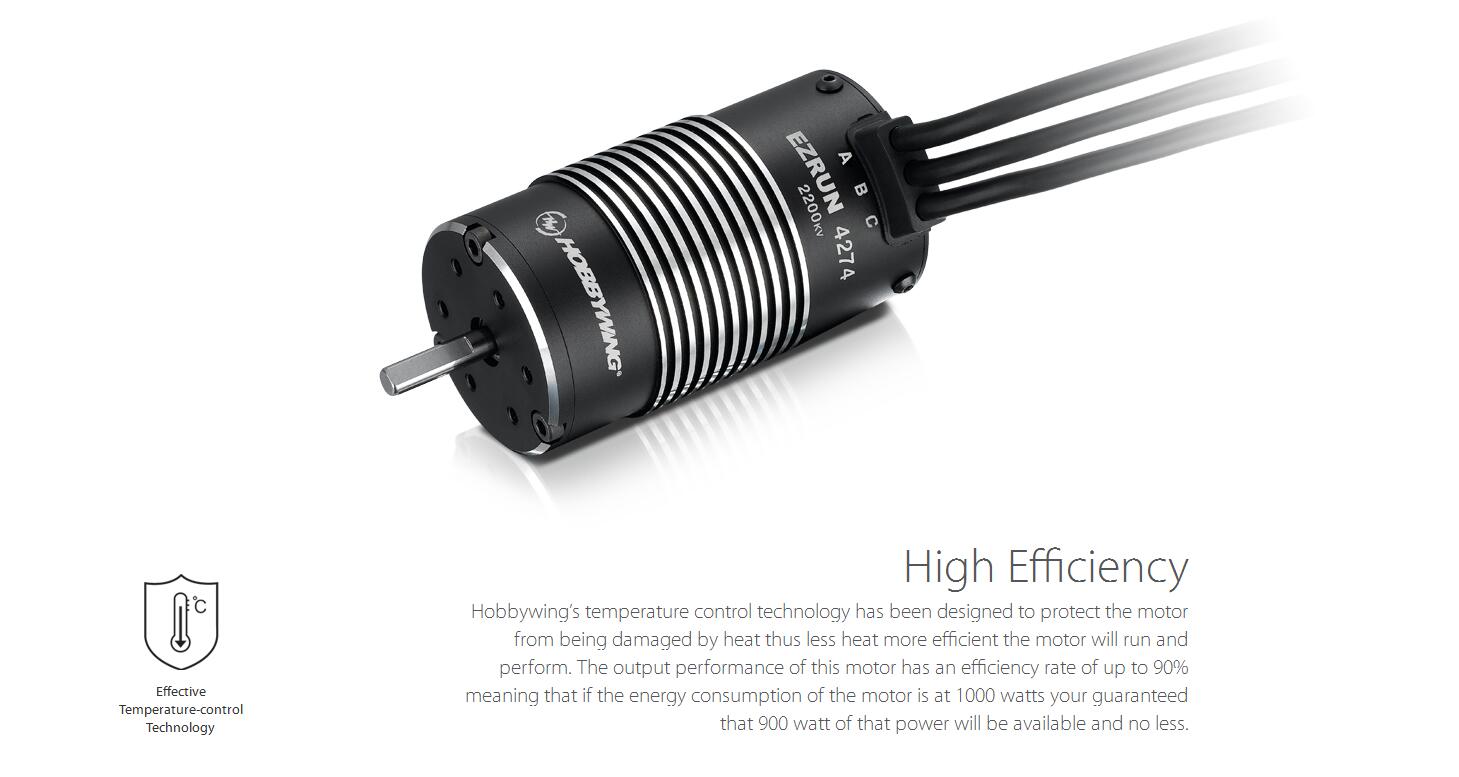

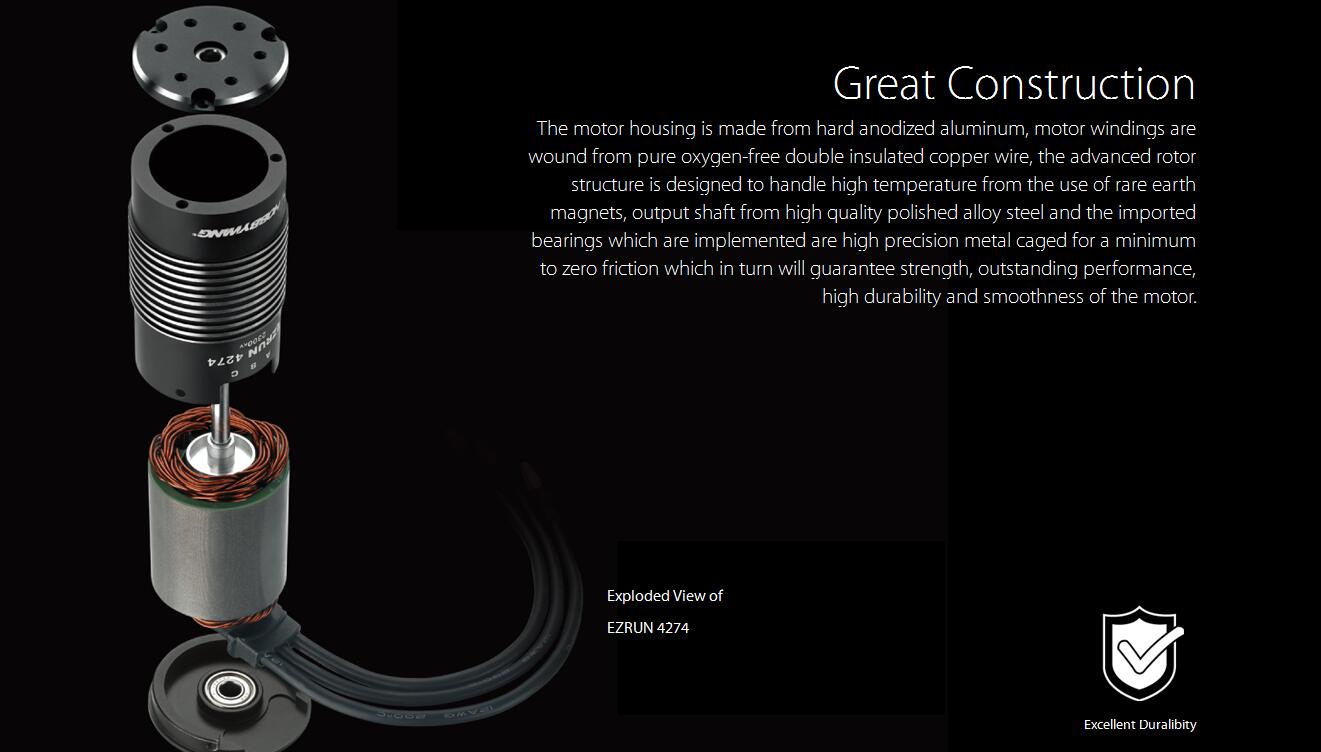

EzRun 4274 2200KV Motor Parameters:
- KV Rating: 2200
- LiPo Cells: 2-6S
- No-load Current(A): 5
- Max. Power Output(W): 3000
- Current at the Point of Max. Power Output(A): 120A
- O.D.(mm):  42.0(1.654in)
- Length (mm):  74.0(2.913in)
- Shaft Diameter (mm):  5.0(0.196in)
- Weight (g):  418(14.745oz
- Applications:  1/8th Monster Trucks/Trucks

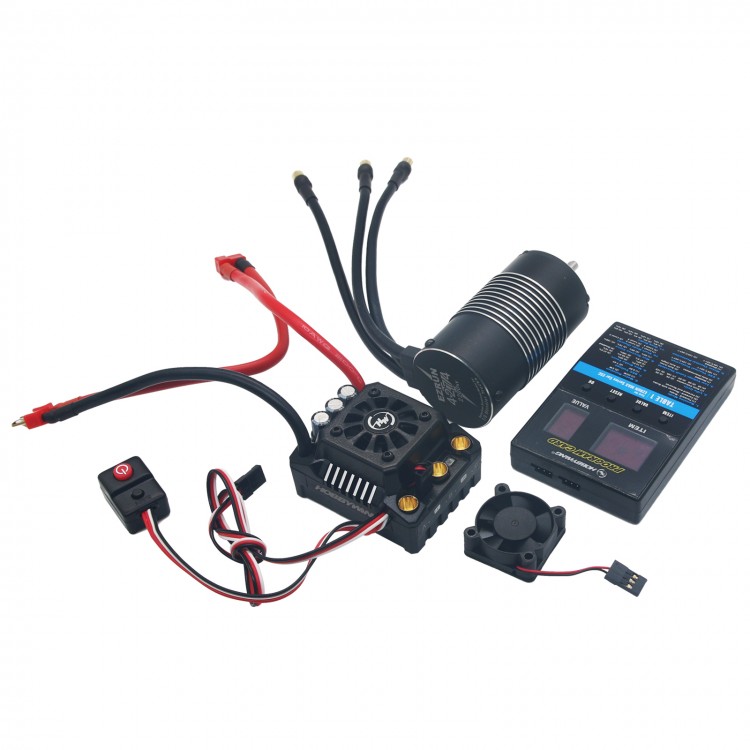

Package included:
- 1 x Ezrun Max ESC TRX-Plug
- 1 x Ezrun Max LED Program Card
- 1 x Ezrun 4274 SL Brushless Motor (2200kv)
- 1 x Instruction Manul
