Hobbywing FlyFun-12AE 12A Modell Nue Speed Controller ESC for 1806/1804 Multicopter Motor
Specification:
- Output: Continuous 12A, Burst 15A up to 10 seconds.
- Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NiMh battery.
- BEC: 2A / 5V Linear mode BEC.
- Refresh rate of the throttle signal: 50Hz to 432Hz.
- Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. (BLM = BrushLess Motor)
- Size: 38mm*18mm*7mm.
- Weight: 10.2g.
Features:
- Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
- Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.

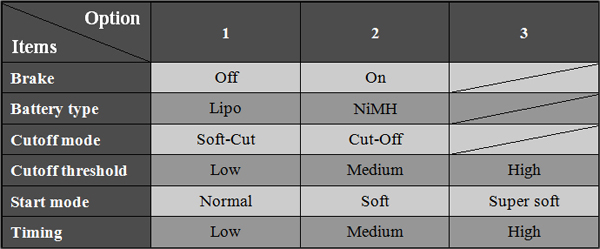

- User programmable.
- Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
- Compatible with Lipo battery and NiCd/NiMH battery.
- Internal timing can be changed to be suitable for different brushless motors.
- Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
- Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
