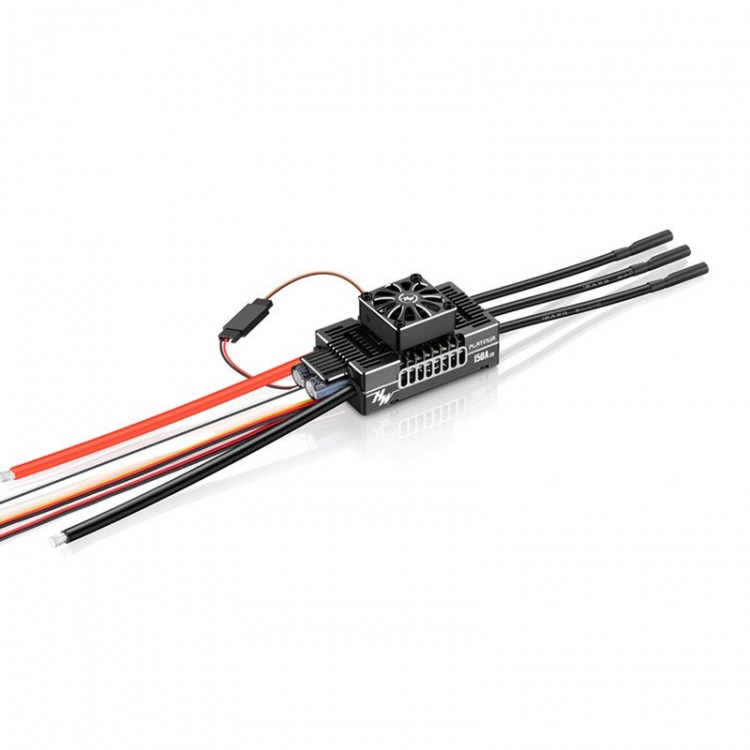

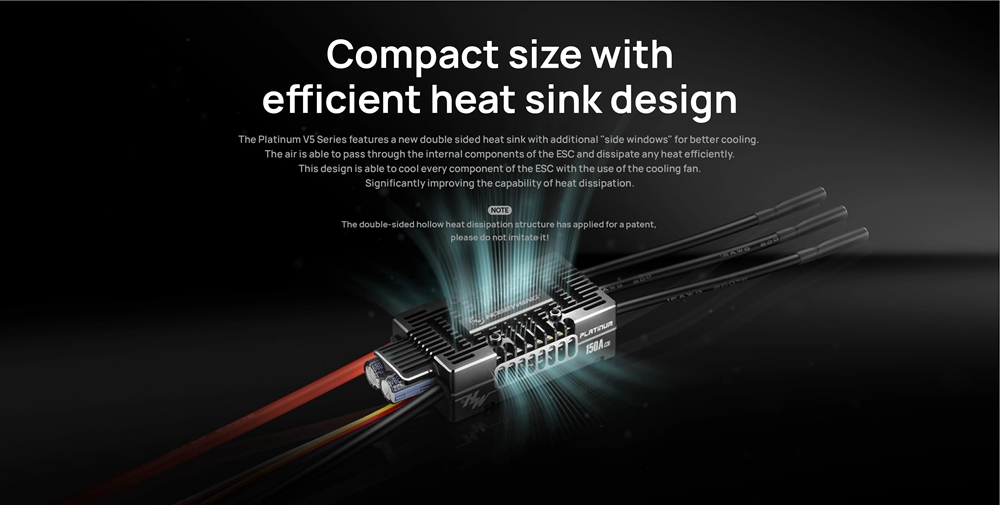

Hobbywing Platinum 150A V5.1 Compact Brushless ESC 3-8S Lipo Input for 520-580 Class RC Drones Helicopter
Specification:

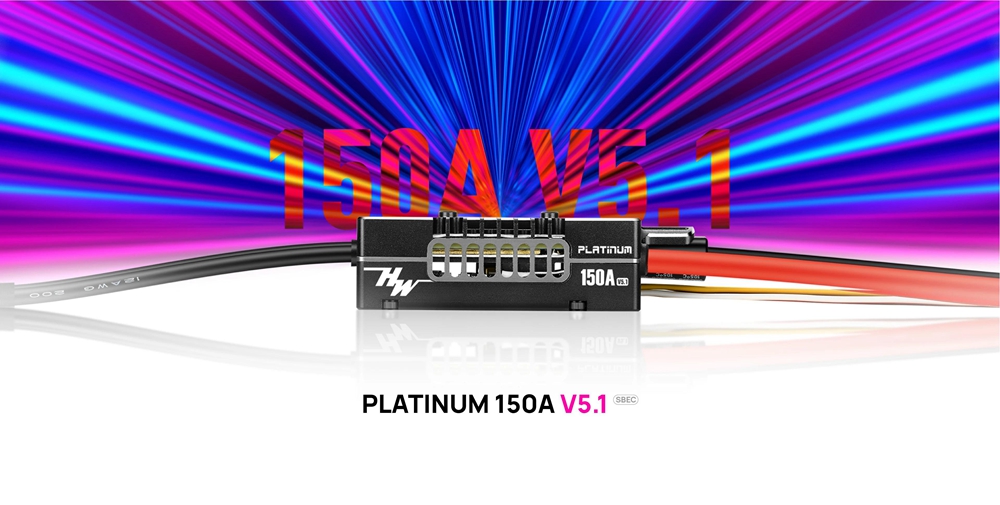

- Model: Platinum 150A V5.1
- Product No.: 30203501
- Product type:
Brushed/brushless: brushless
High voltage/common: common
- Continuous/peak current: 150A/180A
- Battery number: 3 - 8S Lipo
- BEC output: switch mode: 5 - 12V & continuous 10A, instantaneous 30A
- Power cable: red-10AWG-150mm*1/black-10AWG-150mm*1
- Output cable: black-12AWG-100mm*3
- Power plug: without plug
- Output plug: 4.0mm golden plug female connector
- Transmitter: not support
- LED program card: not support
- LED program box: not support
- LCD program box: supported
- OTA programmer: supported
- Program port: separate program port
- Firmware upgrade: supported

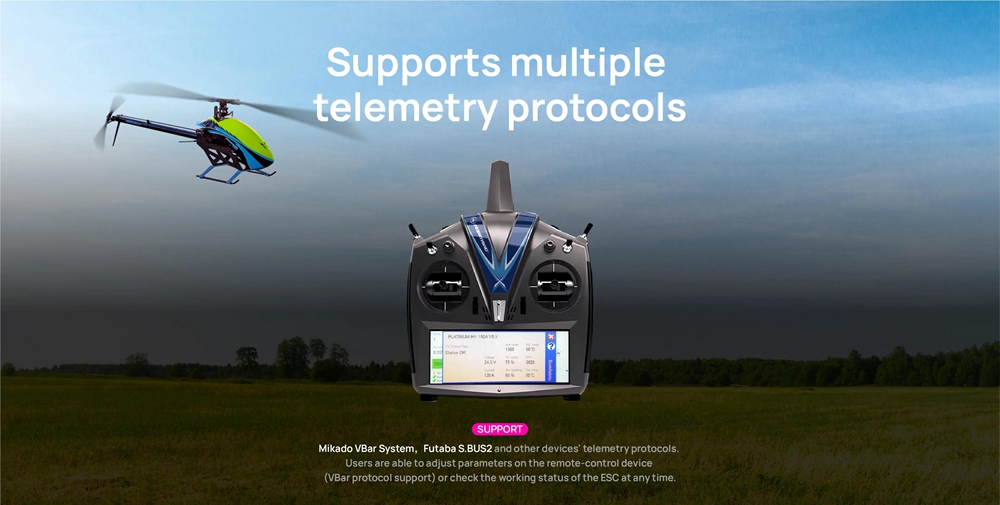

- Telemetry function: for Mikado VBar; Futaba S.Bus2, etc.
- Size: 83.2 x 37.1 x 22.5mm (without fan)
- Net weight: 150.4g (with wires, no fan)
- Application scope: 520-580 class electric helicopter (main blade length 520-580mm),or fixed-wing
Package Included:
- 1 x ESC
Note:
- Battery is not included.
