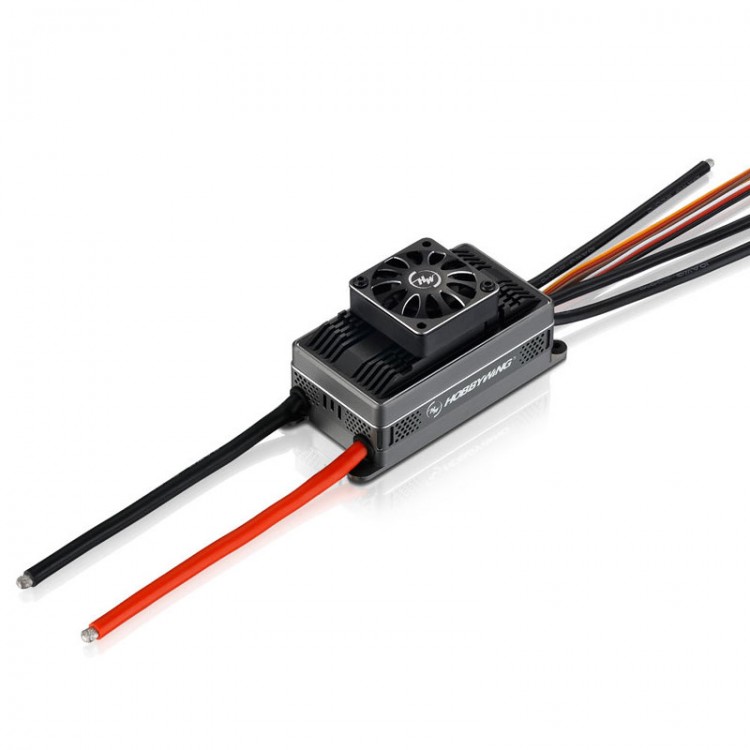

Hobbywing Platinum 200A HV SBEC V4.1 HV ESC Drone ESC 6-14S Electronic Speed Control (with BEC)

Hobbywing Platinum 200A HV SBEC V4.1 HV ESC Drone ESC 6-14S Electronic Speed Control (with BEC)

Features:
Exquisite Design & Quality Components
The elegant cases are made of aluminum. 8AWG input wires have greater current endurance. Top level components combined with the exquisite industrial design guarantee the Platinum HV 200A SBEC V4.1 ESC the unmatchable quality & look.

Integrated Heat-dissipation Structure
The improved structure solves the heat-dissipation problem of the "Sandwich" stacking circuit board. The appropriate circuit distribution allows all components on both sides of circuit boards to quickly conduct heat to the aluminum cases. The way of heat dissipation maximizes the cooling and guarantees the Platinum HV 200A SBEC V4.1 ESC always operates in cool & stable condition.

Platinum HV 200A SBEC V4.1 (New) Way of Heat Dissipation:
·The power board dissipates heat via the aluminum upper & medial cases;
·The control board dissipates heat via those holes on the medial case;
·The BEC circuit board (at the bottom) dissipates heat via the Aluminum lower case.

Excellent Speed-governing
High-performance 32-bit processor combined with advanced algorithm makes the speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for his helicopter.

Super Backflow-proof Switch-mode BEC
The built-in switch-mode BE C with continuously adjustable output voltage range from 5V to 8V (step: 0.1V) supports connecting a 2S backup battery (to the connection) in parallel for improving the safety and reliability, its backflow-proof circuit prevents the voltage (which is higher than the BEC voltage) from the servo or backup battery from flowing back to the BEC. The addition of buffer enhances the output of high peak current to make the servo response more precise and quick.

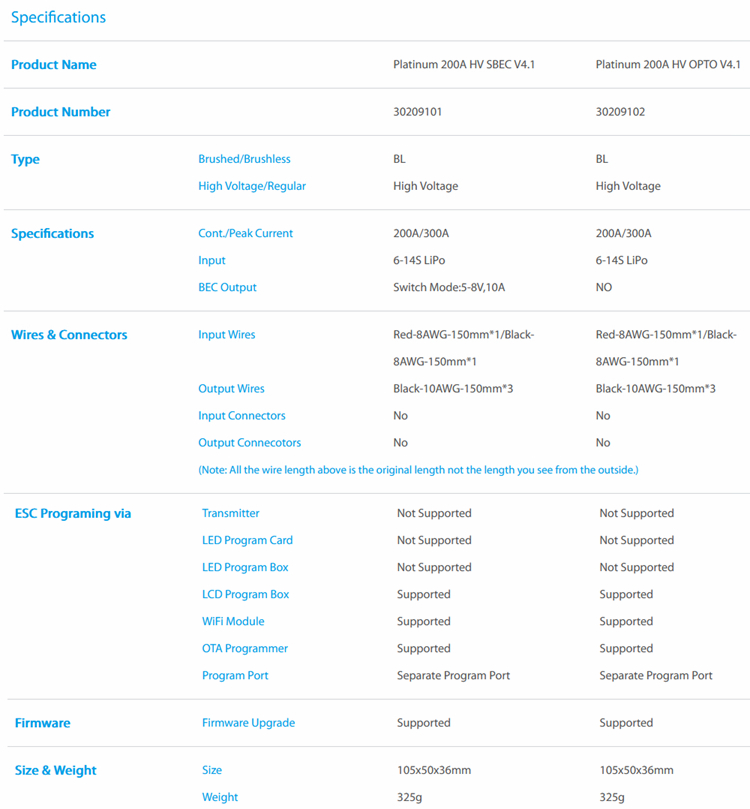

* Model: HV 200A SBEC V4.1
* BEC Voltage: 5-8V (Adjustable)
* Continuous/Peak Current: 10A/30A
* Buffer: Yes
* Backflow-proof Circuit: Yes
* Connect a 2S backup battery to the connection in parallel: Supported

Intelligent and Variable Frequency Soft-start Technology
Based on the original super soft-start technology, the intelligent and variable frequency soft-start technology combined with the adjustable throttle response time guarantees motors ultra-soft and smooth start and ZERO blade-drift issues of helicopter, this definitely creates a perfect starting for every flight.

Built-in Spark-proof Circuit
The built-in spark-proof circuit effectively eliminates the sparks produced when the ESC is powered on and extends the service life of connectors.

Package Included:
* 1 x Platinum 200A HV SBEC V4.1

Note:
* Battery is not included.
