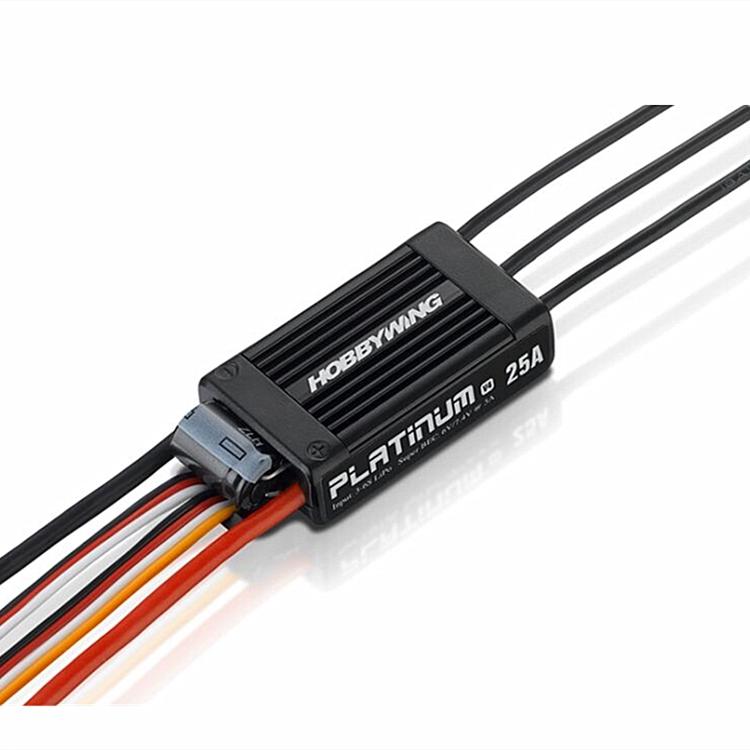

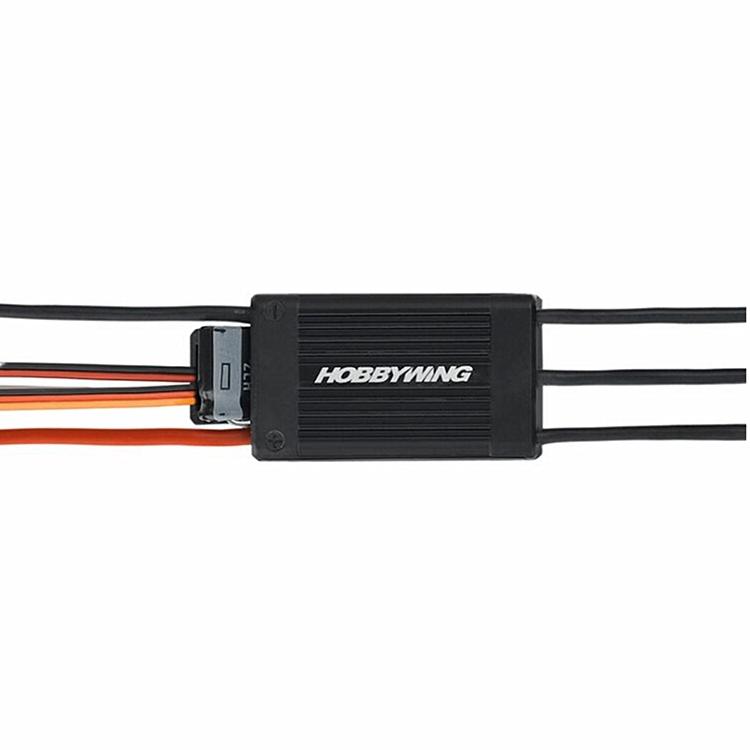

Hobbywing Platinum 25A V4 Brushless ESC 3-6S LiPo Input SBEC-3A (6V/7.4V) for RC Multicopters and Fixed-wings

Hobbywing Platinum 25A V4 Brushless ESC 3-6S LiPo Input SBEC-3A (6V/7.4V) for RC Multicopters and Fixed-wings

Features:
- Using high-performance microprocessors with a running frequency of up to 70MHz, which have better fixed speed and slow start performance.
- The microprocessor uses an independent voltage regulator IC for power supply, which has better anti-interference ability and greatly reduces the possibility of loss of control.
- Adopting synchronous rectification driving efficiency optimization technology [DEO Driving Efficiency Optimization], the oil response is faster, the driving efficiency is higher, and the electrically controlled temperature is lower.
- Using a new high-power switch to stabilize BEC, the output voltage can be adjusted.
- The BEC module and other circuits of the ESC are independent of each other. When the ESC power board experiences faults such as burning out, it maximizes the normal output of the BEC and provides a rescue opportunity.
- It has four flight modes: fixed wing mode, helicopter linear throttle mode, helicopter fixed speed (elf) mode, and helicopter fixed speed storage mode.
- Using a new helicopter speed control program, the speed sensitivity is adjustable, easy to operate, and has excellent speed control effects, ensuring stable propeller speed in situations of rapid load changes.
- Equipped with flight data recording function, it can record the lowest voltage, highest temperature data, and calibrated speed of the current flight.
- It has the function of selecting the shutdown landing protection time, during which the shutdown landing process can be manually interrupted and the motor can be quickly restarted to avoid crashing due to control errors.
- Equipped with a speed [RPM] signal output interface;
- It has an independent parameter setting interface for connecting to the LCD programming setting box. The setting box has a simple and intuitive interface, making it easy to set and modify electrical parameters.
- Support WIFI wireless parameter tuning, all parameter settings can be completed through mobile [for Apple, Android] software [WiFi module required]
- Support online reading, setting electronic tuning parameters, viewing speed curve table [in storage mode], upgrading electronic tuning firmware [requires LCD parameter setting box or WIFI module].
- Equipped with multiple protection functions including startup protection, temperature protection, capacitor temperature protection, overload protection, and throttle signal loss protection, as well as input voltage abnormality protection, effectively extending the service life of the ESC.

Specification:
- Model: Platinum 25A-V4 ESC
- Main application: helicopter, fixed-wing, multi-copter
- Input voltage: 3 - 6S LiPo
- Constant current/instantaneous current (10s): 25A/40A
- BEC: with SBEC-3A (6V/7.4V)
- Independent parameter setting interface: to connect LCD parameter setting box or WiFi module, or provide power supply for fan
- Anti-ignition: built-in anti-ignition circuit
- Input/output cable: 16/18-AWG, plug is not included, welded 3.5mm banana connector (female)
- Product size: 47 x 22 x 10mm
- Net weight: 27g

Package Included:
- 1 x ESC
