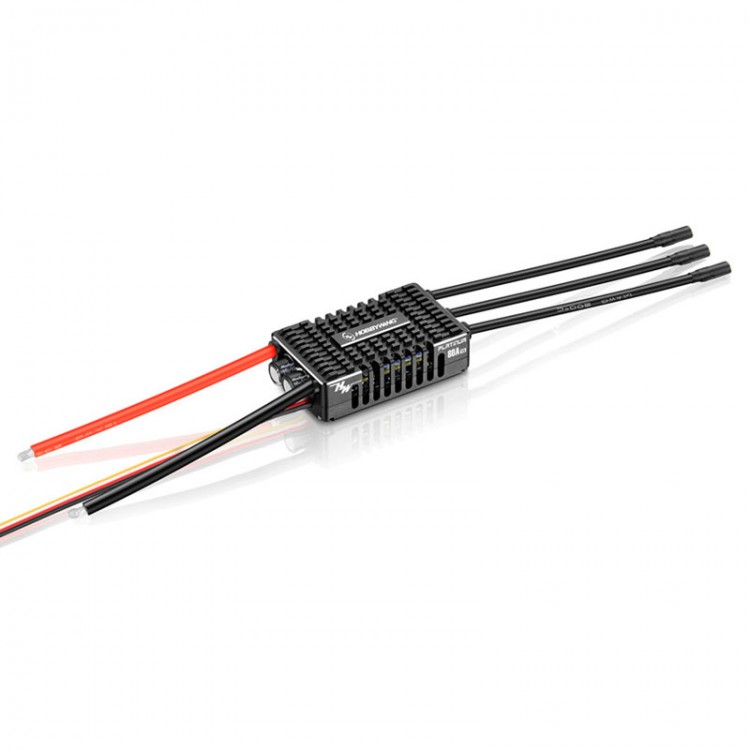

Hobbywing Platinum 80A V5 Brushless ESC Built-in 12V Switch BEC 32-Bit Processor Support for Mikado VBar System/Futaba S.BUS2
Features:
- Compact in size and strong in heat dissipation capability, utilizing the PLATINUM V5 series heat dissipation structure, it can fully utilize the strong airflow generated during the aircraft's movement to achieve good heat dissipation for both the inside and outside of the ESC.
- Built in 12V SWITCH BEC, with stronger output capability. Built-in programmable switch mode BEC, with a maximum output voltage of 12V, adjustable from 5-12V, and a maximum output current of 25A.
- The high-performance 32-bit processor combined with further optimized speed control algorithm makes the speed more constant and powerful, even for light and small-sized electric helicopters with excellent speed control effect.
- Supports multiple return protocols with strong adaptability. Supports data return protocols for various devices for Mikado VBar System, Futaba S.BUS2, etc., making it convenient for users to adjust parameters (for VBar protocol supported) or view the working status of the ESC at any time on the remote control device.
- It has a synchronous rectification drive efficiency optimization technology called DEO -- for Driving Efficiency Optimization. Bringing multiple advantages: faster throttle response, enhanced flight stability and flexibility. Higher driving efficiency and extended flight time. Lower electric heating, more reliable electric operation.
- It has multiple protection functions, effectively extending the service life of the electric control.
- Scope of application: 325-420 class electric helicopters (main rotor blade length 325-420mm), small and medium-sized electric fixed wing.
Specification:
- Model: Platinum 80A V5
- Product No.: 30203201
- Product type:
Brushed/brushless: brushless
High voltage/common: common
- Continuous/peak current: 80A/120A
- Battery number: 3 - 8S LiPo
- BEC output: switch mode: 5 - 12V & continuous 8A, instantaneous 20A
- Power cable: red-12AWG-100mm*1/black-12AWG-100mm*1
- Output cable: black-14AWG-100mm*3
- Power plug: without plug
- Output plug: 3.5mm golden plug female connector
Package Included:
- 1 x ESC
Note:
- Battery is not included.
