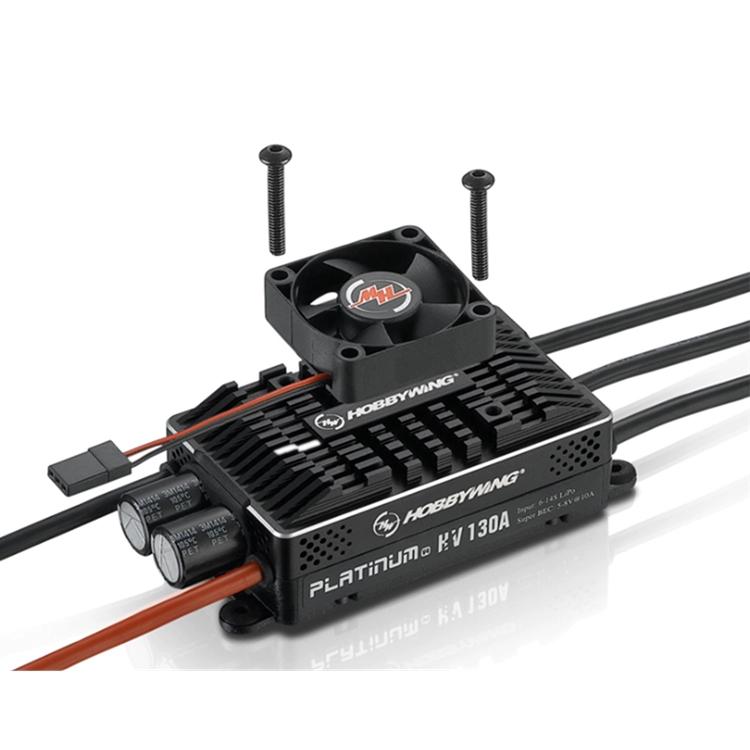

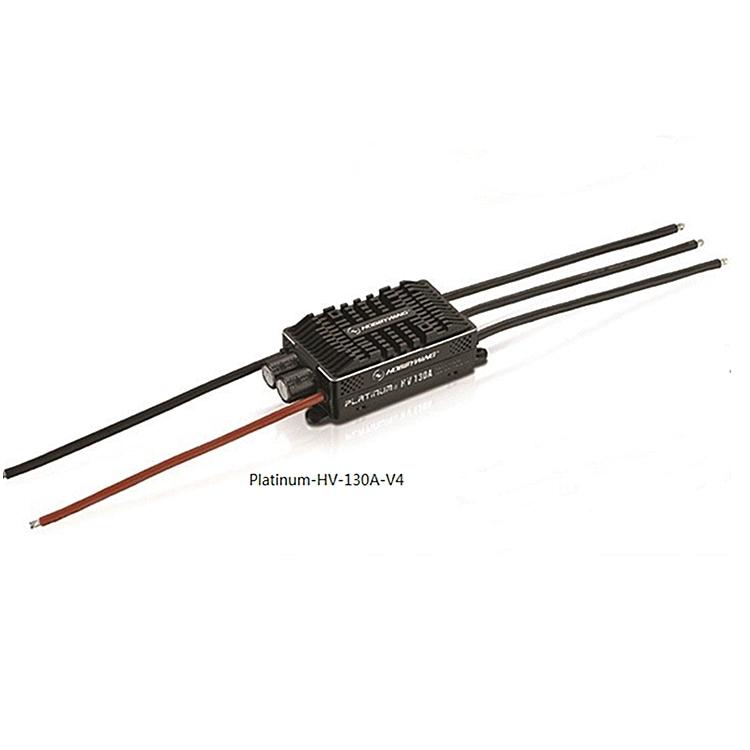

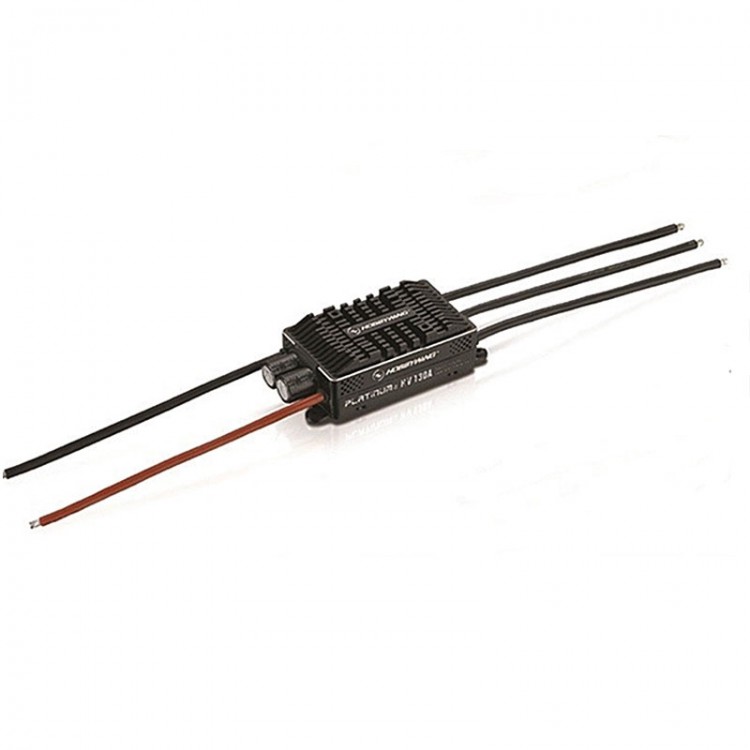

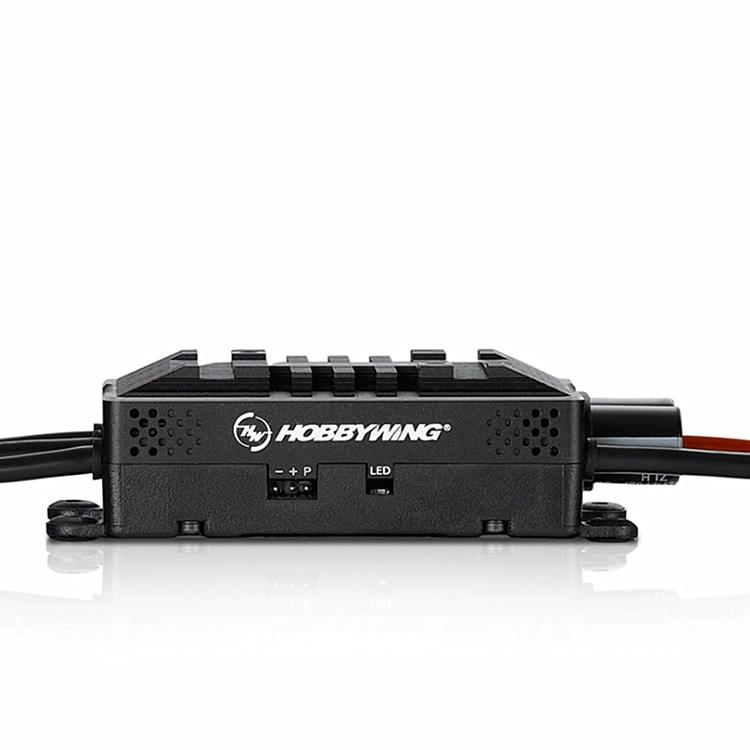

Hobbywing Platinum HV 130A-OPTO V4 High Voltage Brushless ESC 6-14S LiPo Input for RC Drone Helicopter

Hobbywing Platinum HV 130A-OPTO V4 High Voltage Brushless ESC 6-14S LiPo Input for RC Drone Helicopter

Features:
- Using high-performance microprocessors with a running frequency of up to 70MHz, which have better fixed speed and slow start performance.
- The microprocessor uses an independent voltage regulator IC for power supply, which has better anti-interference ability and greatly reduces the possibility of loss of control.
- Adopting synchronous rectification driving efficiency optimization technology [DEO Driving Efficiency Optimization], the oil response is faster, the driving efficiency is higher, and the electrically controlled temperature is lower.
- Using a new high-power switch to stabilize BEC, the output voltage can be adjusted.
- It has four flight modes: fixed wing mode, helicopter linear throttle mode, helicopter fixed speed (elf) mode, and helicopter fixed speed storage mode.
- Using a new helicopter speed control program, the speed sensitivity is adjustable, easy to operate, and has excellent speed control effects, ensuring stable propeller speed in situations of rapid load changes.
- Equipped with flight data recording function, it can record the lowest voltage, highest temperature data, and calibrated speed of the current flight.
- It has the function of selecting the shutdown landing protection time, during which the shutdown landing process can be manually interrupted and the motor can be quickly restarted to avoid crashing due to control errors.
- Equipped with a speed [RPM] signal output interface;
- It has an independent parameter setting interface for connecting to the LCD programming setting box. The setting box has a simple and intuitive interface, making it easy to set and modify electrical parameters.
- Support WIFI wireless parameter tuning, all parameter settings can be completed through mobile [for Apple, Android] software [WiFi module required]
- Support online reading, setting electronic tuning parameters, viewing speed curve table [in storage mode], upgrading electronic tuning firmware [requires LCD parameter setting box or WIFI module].
- Equipped with multiple protection functions including startup protection, temperature protection, capacitor temperature protection, overload protection, and throttle signal loss protection, as well as input voltage abnormality protection, effectively extending the service life of the ESC.

Specification:
- Model: Platinum 130A-HV-V4
- Main application: helicopter, fixed-wing, multi-copter
- Input voltage: 6 - 14S LiPo
- Constant current/instantaneous current (10s): 130A/160A
- BEC: without
- Independent parameter setting interface: to connect LCD parameter setting box or WiFi module, or provide power supply for fan
- Anti-ignition: built-in anti-ignition circuit
- Input/output cable: 12-AWG, plug is not included
- Product size: 106 x 50 x 34mm
- Net weight: 154g

Package Included:
- 1 x ESC
