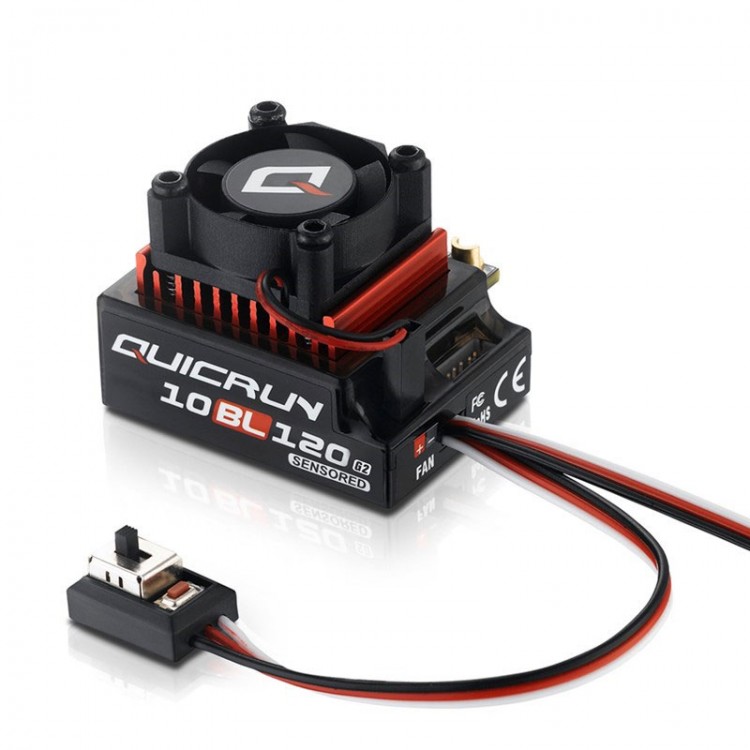

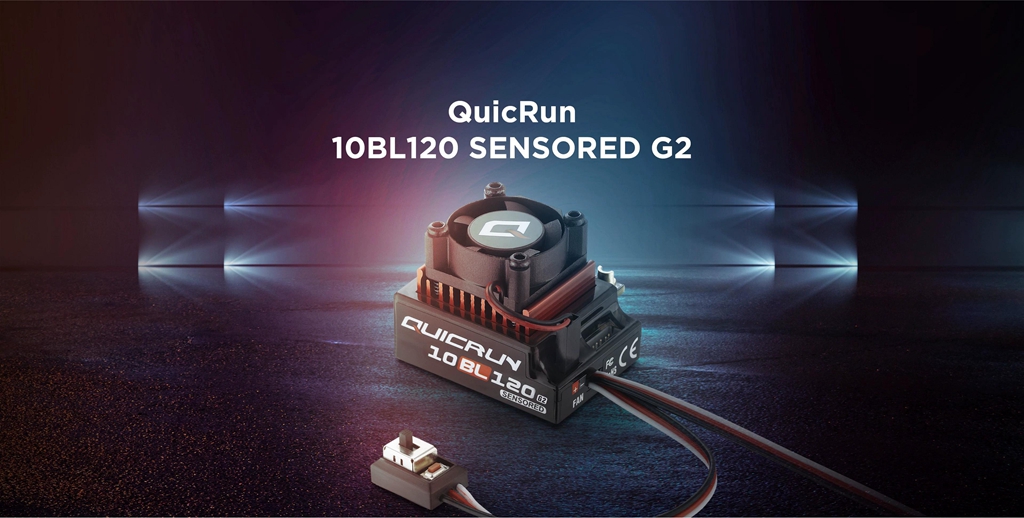

Hobbywing QuicRun 10BL120 Sensored G2 Inductive Brushless ESC 120A 2-3S LiPo Support Boost/Turbo Timing

Hobbywing QuicRun 10BL120 Sensored G2 Inductive Brushless ESC 120A 2-3S LiPo Support Boost/Turbo Timing

Specification:
- Scale: 1/10th
- Brush/Brushless: Brushless
- Waterproof: waterproof
- Continuous/peak current: 120A/760A
- Number of battery cells: 2S-3S Lipo
- BEC output: switch mode 6V/7.4V at 4A (switch stabilized voltage mode)
- Power cord: Black-12AWG-150MMmm x 1; Red-12AWG-150MMmm x 1
- Output plug: 4.0 gold plug female
- ESC's own SET key: not supported

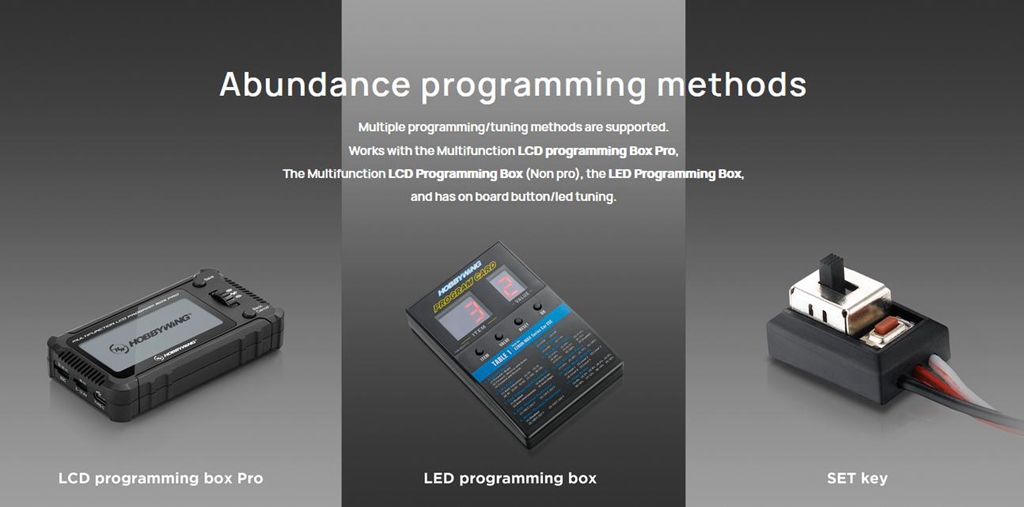

- LED setting box: support
- LCD G2 setting box: support
- OTA Programmer: Not supported
- Programming interface: independent programming port
- Firmware online upgrade: not supported
- Size: 44x 36.8 x 32.3mm
- Weight: 101.5g (including wire plug)
- Support motor type: sensorless brushless motor / sensored brushless motor (only works in sensorless mode)
- Applicable models: 1/10 short truck/truck/monster truck

Precaution:
- Before connecting the electrical control and related connecting components, please ensure that all wires and connecting components are well insulated. Short circuits will damage the electrical control.
- Please be sure to carefully connect all components. If the connection is poor, you may not be able to control the racing car normally, or other unpredictable situations such as equipment damage may occur.
- Before using this ESC, please carefully review the manuals of all power equipment and chassis to ensure a reasonable power combination and avoid overloading the motor due to incorrect power combination, which may ultimately damage the ESC.
- If it is necessary to weld the input and output lines and plugs of the electric controller, to ensure reliable welding, please use welding equipment with at least 50W power for welding.
- Do not let the external temperature of the electric controller exceed 90℃/194℉. High temperature will damage the electric controller and may cause motor damage.
- After use, remember to disconnect the battery and the power regulator, because as long as the battery is connected, even if the switch is not turned on, the power regulator will continue to consume current. Long term connection will cause the battery to eventually discharge completely, leading to battery or power regulator failure or both; We are not responsible for any damages caused by above situations.

Package Included:
- 1 x ESC
